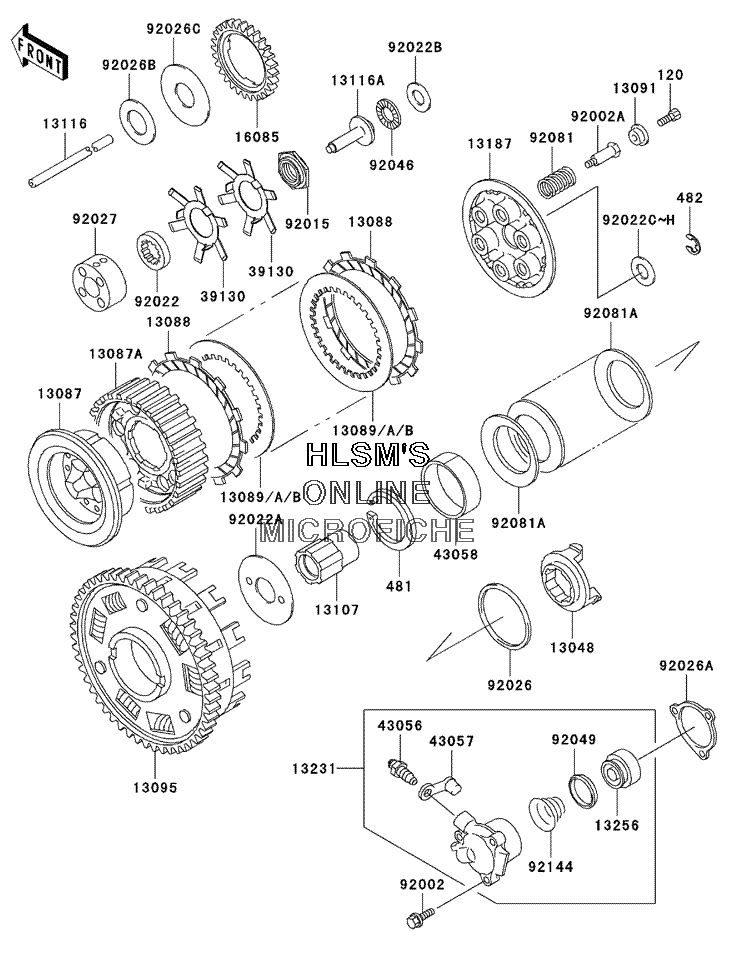

CLUTCH для Kawasaki Concours - 2005 года выпуска
-
№АртикулНазвание
-
1304813048-1007 CAM, DAMPERCAM, DAMPER
-
1308713087-1071 HUB, CLUTCHHUB, CLUTCH
-
13087A13087-1072 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1051 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1004 PLATE, CLUTCH, T=2.3PLATE, CLUTCH, T=2.3
-
13089A13089-1067 PLATE, CLUTCH, T=2.6PLATE, CLUTCH, T=2.6
-
13089B13089-1068 PLATE, CLUTCH, T=2.0PLATE, CLUTCH, T=2.0
-
1309113091-1041 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-1146 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310713107-1299 SHAFT, CLUTCHSHAFT, CLUTCH
-
1311613116-0006 ROD, PUSH, CLUTCHROD, PUSH, CLUTCH
-
13116A13116-1119 ROD, PUSH, CLUTCHROD, PUSH, CLUTCH
-
1318713187-1055 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
1323113231-1072 RELEASE, ASSY., CLUTCHRELEASE, ASSY., CLUTCH
-
1325613256-1052 PISTONPISTON
-
1608516085-1108 GEAR, OIL PUMPGEAR, OIL PUMP
-
3913039130-1071 SPRING, LEAFSPRING, LEAF
-
4305643056-1052 BREATHERBREATHER
-
4305743057-1001 CAP, BREATHERCAP, BREATHER
-
4305843058-1059 RINGRING
-
9200292002-1344 BOLT, 6X25BOLT, 6X25
-
92002A92002-1639 BOLT, CLUTCHBOLT, CLUTCH
-
9201592015-1929 NUTNUT
-
9202292022-1114 WASHER, TOOTHED, 25X40X5WASHER, TOOTHED, 25X40X5
-
92022A92022-1221 WASHER, CLUTCH THRUSTWASHER, CLUTCH THRUST
-
92022B92022-1463 WASHER, 15.1X29X1.0WASHER, 15.1X29X1.0
-
92022C92022-1750 WASHER, 15.1X23X1.0WASHER, 15.1X23X1.0
-
92022D92022-1751 WASHER, 15.1X23X0.8WASHER, 15.1X23X0.8
-
92022E92022-1752 WASHER, 15.1X23X1.2WASHER, 15.1X23X1.2
-
92022F92022-1753 WASHER, 15.1X23X1.4WASHER, 15.1X23X1.4
-
92022G92022-1754 WASHER, 15.1X23X1.6WASHER, 15.1X23X1.6
-
92022H92022-1755 WASHER, 15.1X23X1.8WASHER, 15.1X23X1.8
-
9202692026-1043 SPACER, 59X70X3.5SPACER, 59X70X3.5
-
92026A92026-1263 SPACER, CLUTCH RELEASESPACER, CLUTCH RELEASE
-
92026B92026-1306 SPACER, 25X45X2.0SPACER, 25X45X2.0
-
92026C92026-1307 SPACER, 25X62X2.0SPACER, 25X62X2.0
-
9202792027-1710 COLLARCOLLAR
-
9204692046-1052 BEARING, NEEDLE, AXK1102BEARING, NEEDLE, AXK1102
-
9204992049-1165 SEAL, OIL, PISTONSEAL, OIL, PISTON
-
9208192081-1114 SPRING, CLUTCHSPRING, CLUTCH
-
120120Q0616 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
481481J9500 CIRCLIPCIRCLIP
-
482482J0200 CIRCLIP, TYPE, E, 12MMCIRCLIP, TYPE, E, 12MM
-
92081A92081-1906 SPRINGSPRING
-
9214492144-1084 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
