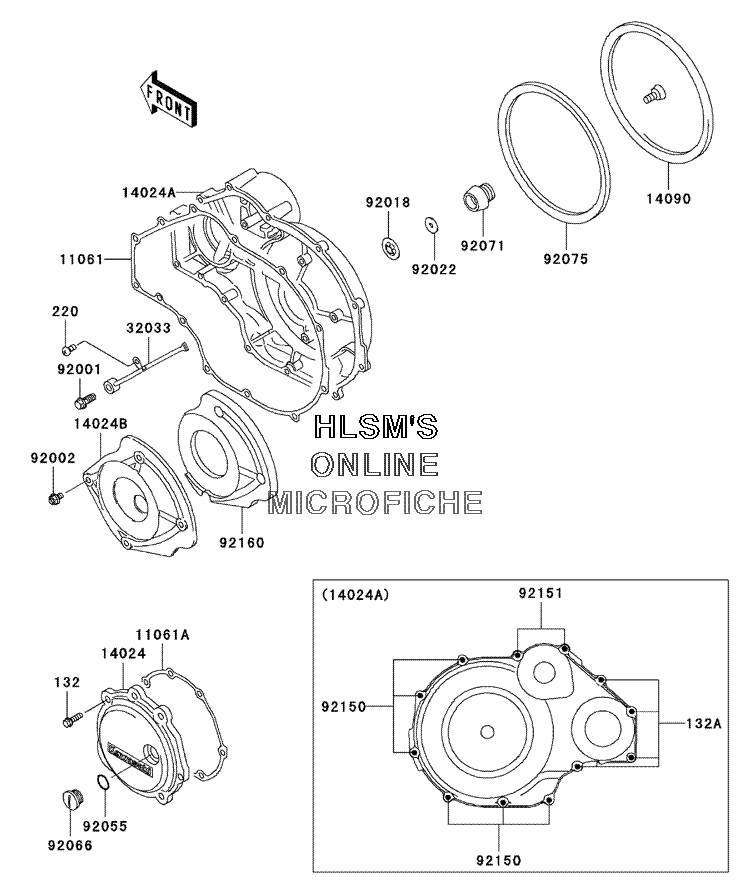

ENGINE COVER для Kawasaki Concours - 2005 года выпуска
-
№АртикулНазвание
-
132132J0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0640 BOLT, FLANGED, SMALL, 6X40BOLT, FLANGED, SMALL, 6X40
-
220220B0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
1106111061-1154 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11061A11061-1155 GASKET, PULSING COVERGASKET, PULSING COVER
-
1402414024-1066 COVER (LEFT)COVER (LEFT)
-
14024A14024-1067 COVER, CLUTCHCOVER, CLUTCH
-
14024B14024-1925 COVER, SOUND ARRESTERCOVER, SOUND ARRESTER
-
1409014090-1409 COVER, CLUTCH COVERCOVER, CLUTCH COVER
-
3203332033-1204 PIPE, CLUTCH COVERPIPE, CLUTCH COVER
-
9200192001-1855 BOLT, BANJO, 8X20BOLT, BANJO, 8X20
-
9200292002-1541 BOLT, 6X10BOLT, 6X10
-
9201892018-004 NUT, SPEED, 5MMNUT, SPEED, 5MM
-
9202292022-104 WASHER, 5.5X20X1.2WASHER, 5.5X20X1.2
-
9205592055-1146 O-RINGO-RING
-
9206692066-1397 PLUGPLUG
-
9207192071-1108 GROMMET, CLUTCH COVERGROMMET, CLUTCH COVER
-
9207592075-1594 DAMPER, CLUTCH COVERDAMPER, CLUTCH COVER
-
9215092150-1779 BOLT, 6X25BOLT, 6X25
-
9215192151-1341 BOLT, 6X55BOLT, 6X55
-
9216092160-1209 DAMPER, SOUND ARRESTERDAMPER, SOUND ARRESTER
