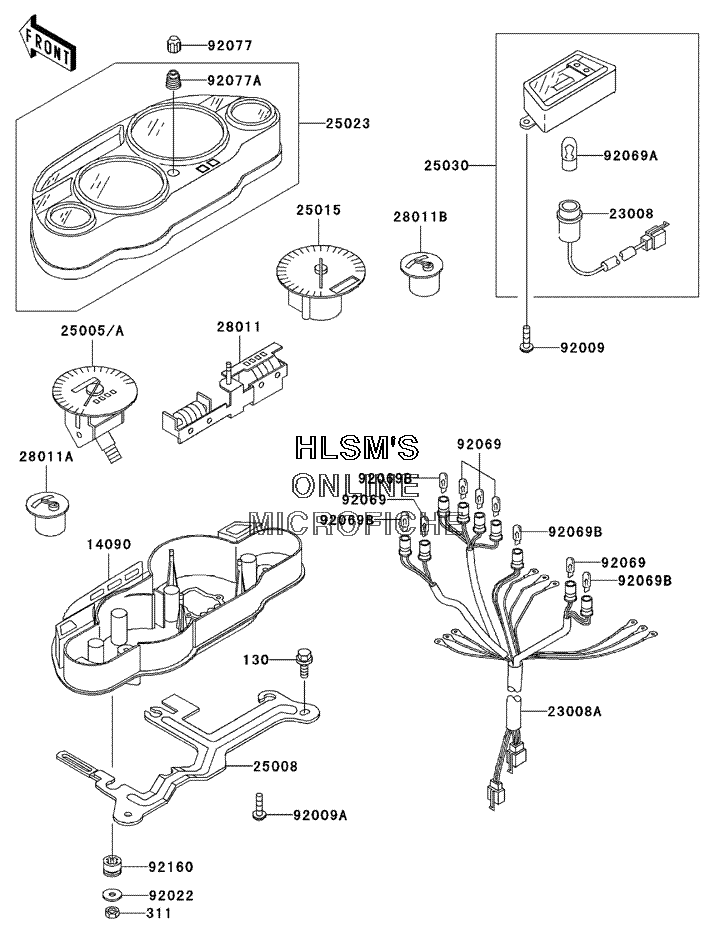

METER(S) для Kawasaki Concours - 2005 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT, FLANGED, 6X14 (BLACK)BOLT, FLANGED, 6X14 (BLACK)
-
311311B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
1409014090-1287 COVER, METER HOUSINGCOVER, METER HOUSING
-
2300823008-1529 SOCKET, ASSY., DEGITAL CLOCKSOCKET, ASSY., DEGITAL CLOCK
-
23008A23008-1534 SOCKET, ASSY., METERSOCKET, ASSY., METER
-
2500525005-1559 SPEEDOMETER, MPH (US ONLY)SPEEDOMETER, MPH (US ONLY)
-
25005A25005-1705 SPEEDOMETER, KPH (CANADA ONLY)SPEEDOMETER, KPH (CANADA ONLY)
-
2500825008-1199 BRACKET, METERBRACKET, METER
-
2501525015-1329 TACHOMETER, X1000R/MINTACHOMETER, X1000R/MIN
-
2502325023-1201 COVER, METER CASE, UPPERCOVER, METER CASE, UPPER
-
2503025030-1002 CLOCK, DEGITALCLOCK, DEGITAL
-
2801128011-1130 METER, TRIPMETER, TRIP
-
28011A28011-1145 METER, FUELMETER, FUEL
-
28011B28011-1146 METER, TEMPMETER, TEMP
-
9200992009-1163 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
92009A92009-1503 SCREW, TAPPING, 4X14SCREW, TAPPING, 4X14
-
9202292022-1369 WASHER, 6.2X18X1.2WASHER, 6.2X18X1.2
-
9206992069-1007 BULB, 12V 3.4W, T10BULB, 12V 3.4W, T10
-
92069A92069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
92069B92069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
9207792077-1094 KNOB, TRIP RESETKNOB, TRIP RESET
-
92077A92077-1112 KNOB, TRIP RESETKNOB, TRIP RESET
-
9216092160-1461 DAMPERDAMPER
