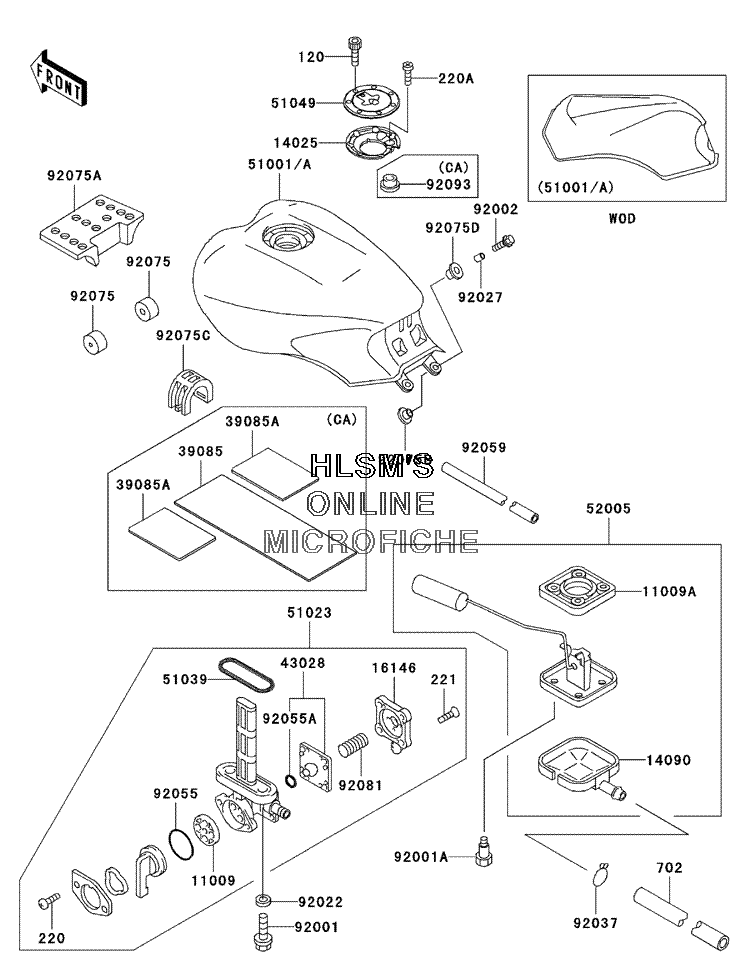

FUEL TANK для Kawasaki Concours - 2005 года выпуска
-
№АртикулНазвание
-
1100911009-1530 GASKET, TAP VALVEGASKET, TAP VALVE
-
11009A11009-1656 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1402514025-1913 COVER, TANK CAPCOVER, TANK CAP
-
1409014090-1624 COVER, FUEL GAUGECOVER, FUEL GAUGE
-
1614616146-1005 COVER, ASSY., TAP DIAPHRAGMCOVER, ASSY., TAP DIAPHRAGM
-
3908539085-1060 PAD, TANK, CENTER (CALIF. ONLY)PAD, TANK, CENTER (CALIF. ONLY)
-
39085A39085-1061 PAD, TANK, SIDE (CALIF. ONLY)PAD, TANK, SIDE (CALIF. ONLY)
-
4302843028-1015 DIAPHRAGM, TAPDIAPHRAGM, TAP
-
5100151001-1616-IR TANK, COMP, FUEL (P.L.BEIGE) (EXCEPT CALIF.)TANK, COMP, FUEL (P.L.BEIGE) (EXCEPT CALIF.)
-
51001A51001-1662-IR TANK, COMP, FUEL (P.L.BEIGE) (CALIF. ONLY)TANK, COMP, FUEL (P.L.BEIGE) (CALIF. ONLY)
-
5102351023-1388 TAP, ASSY., FUELTAP, ASSY., FUEL
-
5103951039-010 RING, TAP FLANGEDRING, TAP FLANGED
-
5104951049-1131 CAP, TANK, FUELCAP, TANK, FUEL
-
5200552005-1078 GAUGE, FUELGAUGE, FUEL
-
9200192001-1091 BOLT, 6X20BOLT, 6X20
-
92001A92001-1705 BOLT, FUEL GAUGEBOLT, FUEL GAUGE
-
9200292002-1137 BOLT, 6X25BOLT, 6X25
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
120120S0512 BOLT, SOCKETBOLT, SOCKET
-
220220B0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220F0508 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
221221B0414 SCREW, CSK, CROS, 4X14SCREW, CSK, CROS, 4X14
-
702702A07780 TUBE, RUBBER, 7X10X780TUBE, RUBBER, 7X10X780
-
9202792027-156 COLLAR, 6.8X10X14.5COLLAR, 6.8X10X14.5
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-1027 O-RING, TAP LEVERO-RING, TAP LEVER
-
92055A92055-1664 O-RINGO-RING
-
9205992059-1726 TUBE, 5X8X600TUBE, 5X8X600
-
9207592075-125 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1672 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075B92075-174 DAMPER, MALEDAMPER, MALE
-
92075C92075-1741 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075D92075-175 DAMPER, FEMALEDAMPER, FEMALE
-
9208192081-1171 SPRING, TAP DIAPHRAGMSPRING, TAP DIAPHRAGM
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
