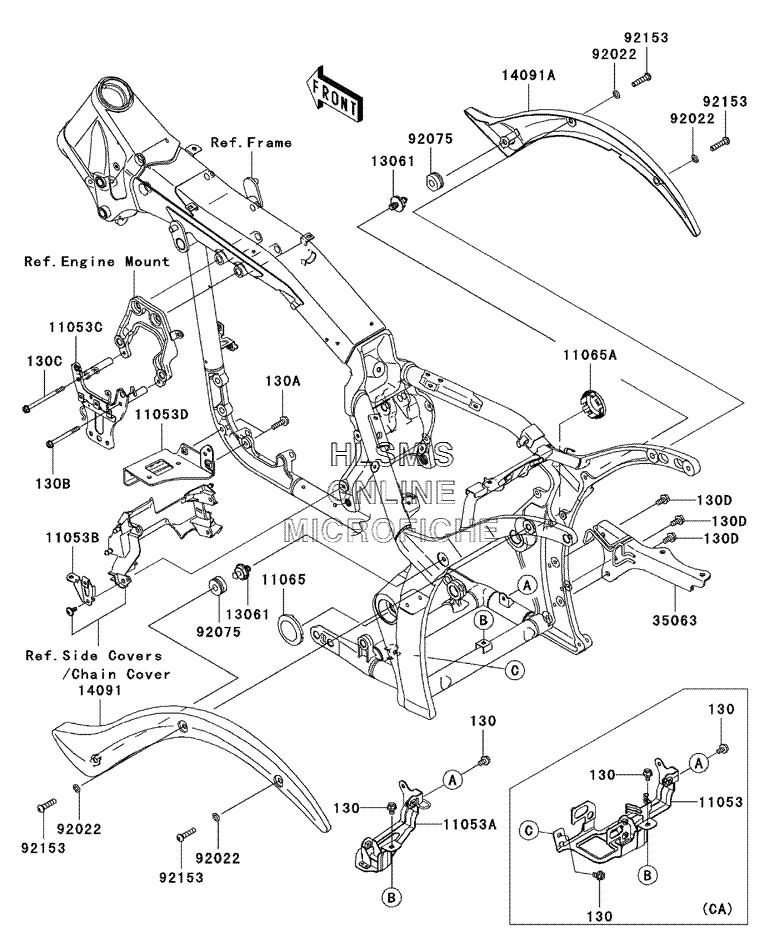

FRAME FITTINGS для Kawasaki Vulcan 2000 - 2005 года выпуска
-
№АртикулНазвание
-
130130L0610 BOLT-FLANGED, 6X10 (EXCEPT CALIF.)BOLT-FLANGED, 6X10 (EXCEPT CALIF.)
-
130130L0610 BOLT-FLANGED, 6X10 (CALIF, ONLY)BOLT-FLANGED, 6X10 (CALIF, ONLY)
-
130A130L0622 BOLT-FLANGED, 6X22BOLT-FLANGED, 6X22
-
130B130L0670 BOLT-FLANGED, 6X70BOLT-FLANGED, 6X70
-
130C130L0690 BOLT-FLANGED, 6X90BOLT-FLANGED, 6X90
-
130D130L0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1105311053-0312 BRACKET, RESERVOIR (CALIF, ONLY)BRACKET, RESERVOIR (CALIF, ONLY)
-
11053A11053-0350 BRACKET, RESERVOIR (EXCEPT CALIF.)BRACKET, RESERVOIR (EXCEPT CALIF.)
-
11053B11053-0494 BRACKET, FUSE AND SENSORBRACKET, FUSE AND SENSOR
-
11053C11053-1254 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
11053D11053-1625 BRACKET, REGULATORBRACKET, REGULATOR
-
1106511065-0052 CAP, PIVOT (LEFT)CAP, PIVOT (LEFT)
-
11065A11065-0053 CAP, PIVOT (RIGHT)CAP, PIVOT (RIGHT)
-
1306113061-0060 BOSSBOSS
-
1409114091-0253 COVER, FENDER (LEFT)COVER, FENDER (LEFT)
-
14091A14091-0255 COVER, FENDER (RIGHT)COVER, FENDER (RIGHT)
-
3506335063-0048 STAY, MUFFLERSTAY, MUFFLER
-
9202292022-3043 WASHER, PLAIN, 8MMWASHER, PLAIN, 8MM
-
9207592075-1986 DAMPERDAMPER
-
9215392153-0419 BOLT, SOCKET, 8X35BOLT, SOCKET, 8X35
