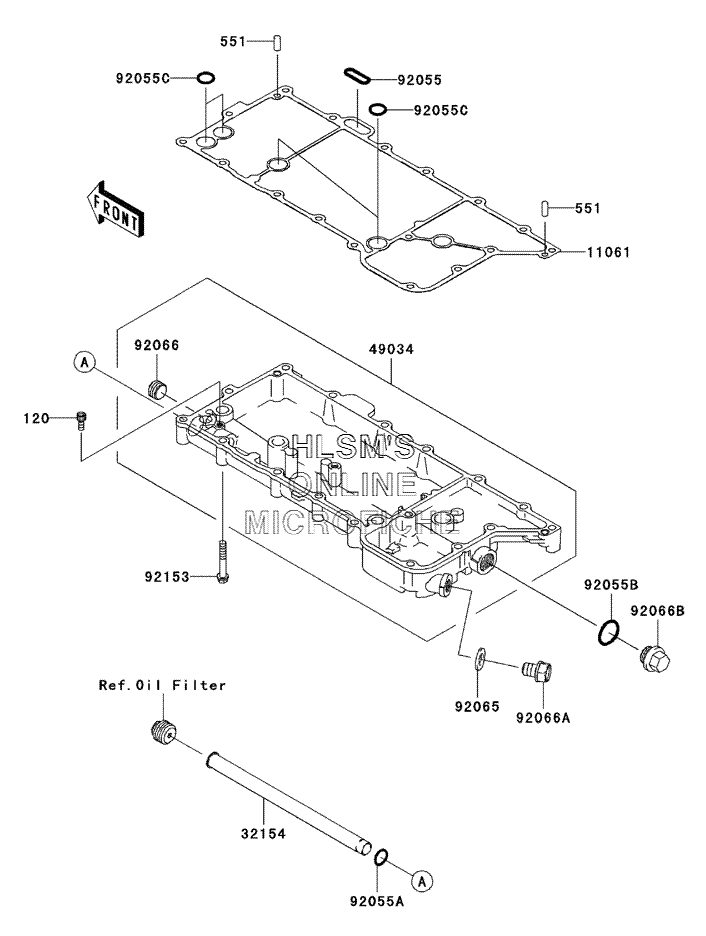

OIL PAN для Kawasaki Vulcan 2000 - 2005 года выпуска
-
№АртикулНазвание
-
120120S0512 BOLT-SOCKET, 5X12BOLT-SOCKET, 5X12
-
551551A0614 PIN-DOWEL, 6X14PIN-DOWEL, 6X14
-
1106111061-0021 GASKET, OIL PANGASKET, OIL PAN
-
3215432154-0065 PIPEPIPE
-
4903449034-0012 PAN-OILPAN-OIL
-
9205592055-0009 RING-ORING-O
-
92055A92055-1141 RING-O, ID=13.8RING-O, ID=13.8
-
92055B92055-1146 RING-O, 20X2RING-O, 20X2
-
92055C92055-1373 RING-O, 13.2X2.4RING-O, 13.2X2.4
-
9206592065-097 GASKET, 12X22X2GASKET, 12X22X2
-
9206692066-0042 PLUGPLUG
-
92066A92066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
92066B92066-1394 PLUG, MAIN GALLERY, 18X9PLUG, MAIN GALLERY, 18X9
-
9215392153-0710 BOLT, 6X40BOLT, 6X40
