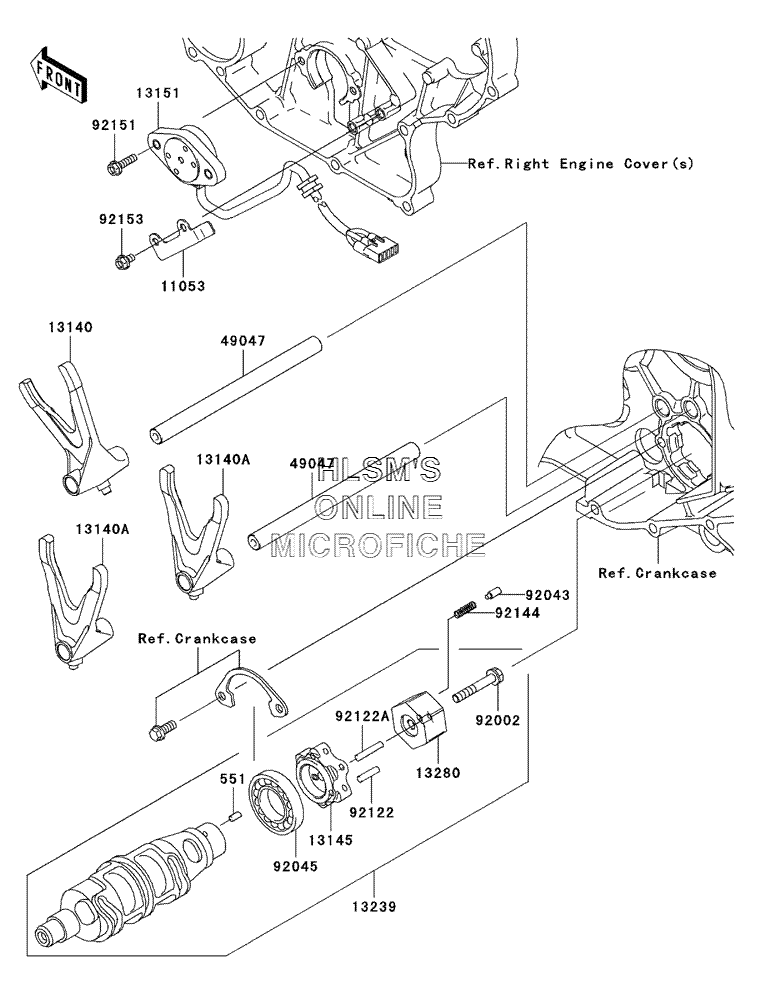

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki Vulcan 2000 - 2005 года выпуска
-
№АртикулНазвание
-
551551A0408 PIN-DOWEL, 4X8PIN-DOWEL, 4X8
-
1105311053-0506 BRACKET, SENSOR WIREBRACKET, SENSOR WIRE
-
1314013140-0001 FORK-SHIFT, INPUTFORK-SHIFT, INPUT
-
13140A13140-0002 FORK-SHIFT, OUTPUTFORK-SHIFT, OUTPUT
-
1314513145-0016 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-0013 SWITCH-COMP, GEAR POSITIONSWITCH-COMP, GEAR POSITION
-
1323913239-0013 DRUM-ASSY-CHANGEDRUM-ASSY-CHANGE
-
1328013280-0106 HOLDERHOLDER
-
4904749047-0002 ROD-SHIFTROD-SHIFT
-
9200292002-1431 BOLT, 6X38BOLT, 6X38
-
9204392043-0085 PINPIN
-
9204592045-1045 BEARING-BALL, 16005(NTN)BEARING-BALL, 16005(NTN)
-
9212292122-0001 ROLLER, 4.5X17.8ROLLER, 4.5X17.8
-
92122A92122-0010 ROLLER, 4.5X23.8ROLLER, 4.5X23.8
-
9214492144-1245 SPRINGSPRING
-
9215192151-1776 BOLTBOLT
-
9215392153-0687 BOLT, 5X10BOLT, 5X10
