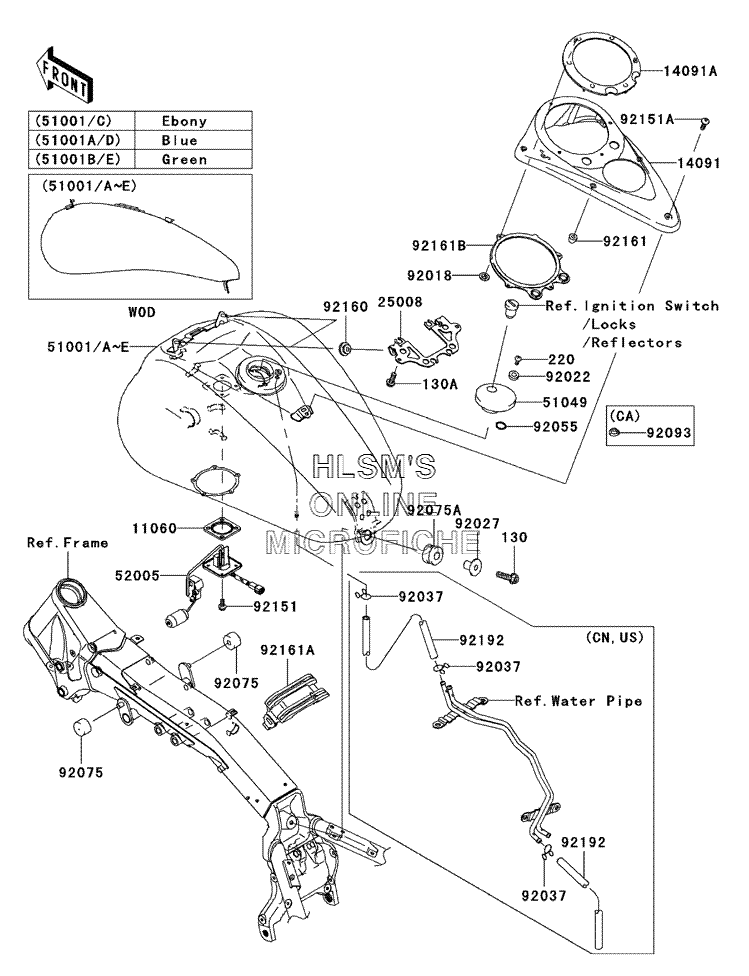

FUEL TANK для Kawasaki Vulcan 2000 - 2005 года выпуска
-
№АртикулНазвание
-
130130H0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130A130L0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
220220D0510 SCREW-PAN-CROS, 5X10SCREW-PAN-CROS, 5X10
-
1106011060-1952 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1409114091-0187 COVER, METER, LOWERCOVER, METER, LOWER
-
14091A14091-0284 COVER, METER, UPPERCOVER, METER, UPPER
-
2500825008-0001 BRACKET-METERBRACKET-METER
-
5100151001-0064-H8 TANK-COMP-FUEL (EBONY) (CALIF, ONLY)TANK-COMP-FUEL (EBONY) (CALIF, ONLY)
-
51001A51001-0064-726 TANK-COMP-FUEL (M.O.BLUE) (CALIF, ONLY)TANK-COMP-FUEL (M.O.BLUE) (CALIF, ONLY)
-
51001B51001-0064-727 TANK-COMP-FUEL (M.D.GREEN) (CALIF, ONLY)TANK-COMP-FUEL (M.D.GREEN) (CALIF, ONLY)
-
51001C51001-0065-H8 TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)
-
51001D51001-0065-726 TANK-COMP-FUEL (M.O.BLUE) (EXCEPT CALIF.)TANK-COMP-FUEL (M.O.BLUE) (EXCEPT CALIF.)
-
51001E51001-0065-727 TANK-COMP-FUEL (M.D.GREEN) (EXCEPT CALIF.)TANK-COMP-FUEL (M.D.GREEN) (EXCEPT CALIF.)
-
5104951049-0003 CAP-TANK, FUELCAP-TANK, FUEL
-
5200552005-0002 GAUGE, FUELGAUGE, FUEL
-
9201892018-005 NUT, PUSH, 3MMNUT, PUSH, 3MM
-
9202292022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9202792027-1780 COLLAR, L=19.3COLLAR, L=19.3
-
9203792037-147 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
9205592055-1552 RING-O, ID=9RING-O, ID=9
-
9207592075-125 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1736 DAMPERDAMPER
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF, ONLY)SEAL, FUEL TANK CAP (CALIF, ONLY)
-
9215192151-1599 BOLT, 5X12BOLT, 5X12
-
92151A92151-1940 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9216092160-1613 DAMPERDAMPER
-
9216192161-0040 DAMPER, METER COVERDAMPER, METER COVER
-
92161A92161-0042 DAMPER, FUEL TANK, CNTDAMPER, FUEL TANK, CNT
-
92161B92161-0173 DAMPER, METERDAMPER, METER
-
9219292192-0037 TUBE, BLUE (EXCEPT CALIF.)TUBE, BLUE (EXCEPT CALIF.)
