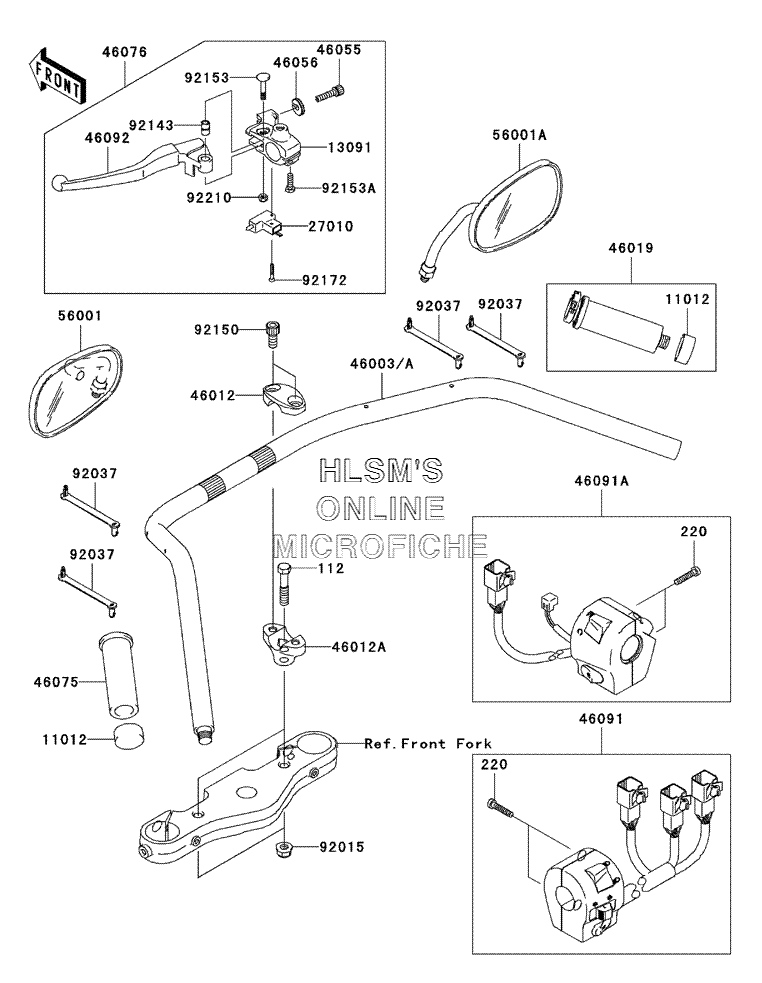

HANDLEBAR для Kawasaki Vulcan 2000 - 2005 года выпуска
-
№АртикулНазвание
-
112112L1050 BOLT-UPSET, 10X50BOLT-UPSET, 10X50
-
220220R0525 SCREW-PAN-CROSS, 5X25SCREW-PAN-CROSS, 5X25
-
1101211012-1975 CAP, GRIP ENDCAP, GRIP END
-
1309113091-1632 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
2701027010-1268 SWITCH, CLUTCHSWITCH, CLUTCH
-
46003A46003-0066 HANDLEHANDLE
-
4601246012-0003 HOLDER-HANDLE, UPPERHOLDER-HANDLE, UPPER
-
46012A46012-0004 HOLDER-HANDLE, LOWERHOLDER-HANDLE, LOWER
-
4601946019-1109 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4605546055-003 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
4605646056-005 NUT, CABLE ADJUST LOCK, 8MMNUT, CABLE ADJUST LOCK, 8MM
-
4607546075-1074 GRIP (LEFT)GRIP (LEFT)
-
4607646076-0010 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609146091-0013 HOUSING-ASSY-CONTROL (LEFT)HOUSING-ASSY-CONTROL (LEFT)
-
46091A46091-0034 HOUSING-ASSY-CONTROL (RIGHT)HOUSING-ASSY-CONTROL (RIGHT)
-
4609246092-1204 LEVER-GRIP, CLUCTHLEVER-GRIP, CLUCTH
-
5600156001-0032 MIRROR-ASSY (LEFT)MIRROR-ASSY (LEFT)
-
56001A56001-0033 MIRROR-ASSY (RIGHT)MIRROR-ASSY (RIGHT)
-
9201592015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9214392143-1351 COLLARCOLLAR
-
9215092150-1942 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9215392153-0716 BOLT, LEVER SETBOLT, LEVER SET
-
92153A92153-0721 BOLT, 6X20BOLT, 6X20
-
9217292172-0164 SCREW, 3X20SCREW, 3X20
-
9221092210-0006 NUT, LOCK, 6MMNUT, LOCK, 6MM
