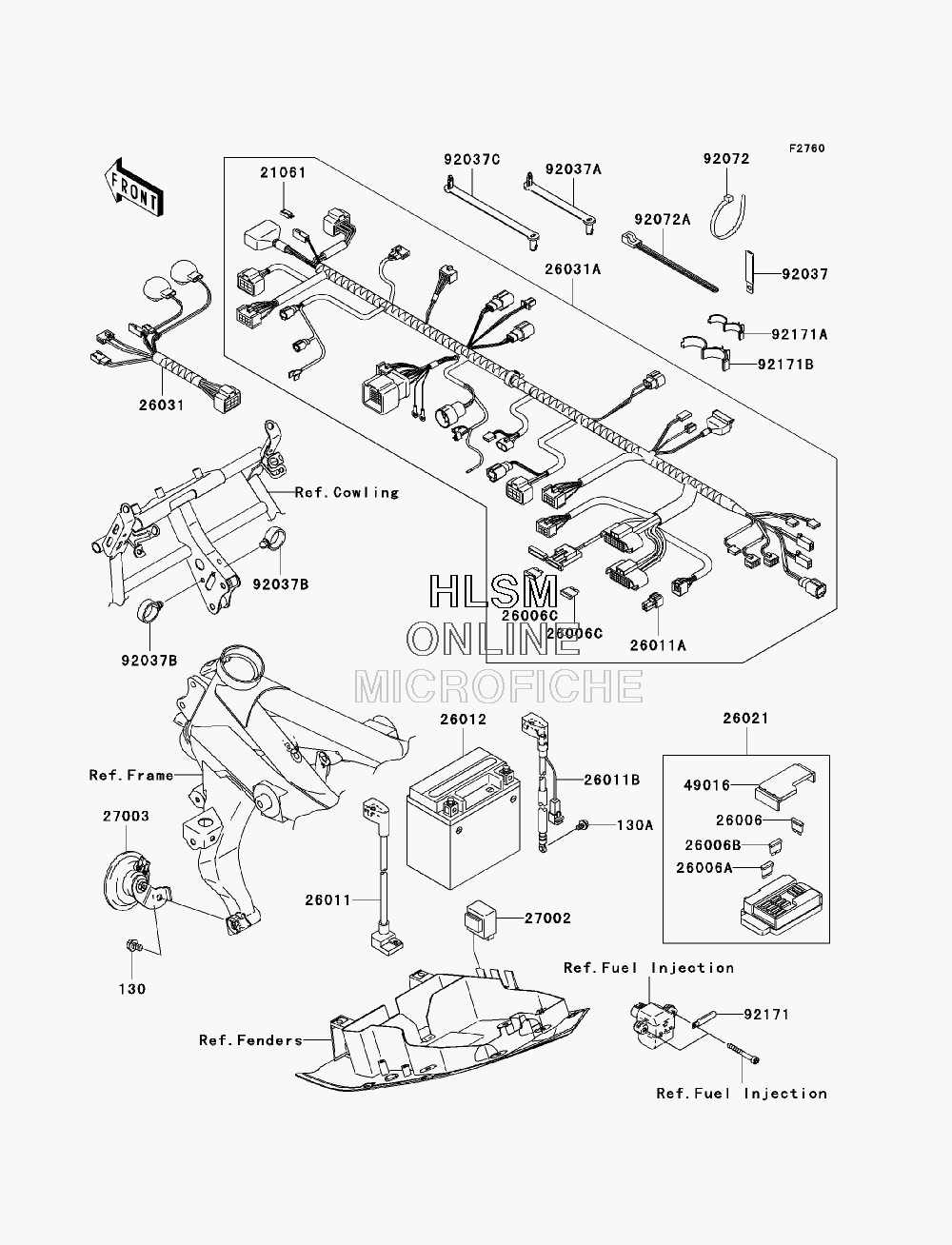

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Z750S - 2005 года выпуска
-
№АртикулНазвание
-
130130L0812 BOLT-FLANGEDBOLT-FLANGED
-
130A130V0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
2106121061-0001 RECTIFIERRECTIFIER
-
2600626006-1067 FUSE,30A-GFUSE,30A-G
-
26006A26006-1068 FUSE,10A-RFUSE,10A-R
-
26006B26006-1069 FUSE,15A-BFUSE,15A-B
-
26006C26006-1075 FUSE,15AFUSE,15A
-
2601126011-0006 WIRE-LEAD,BATTERY(+)WIRE-LEAD,BATTERY(+)
-
26011A26011-0037 WIRE-LEADWIRE-LEAD
-
26011B26011-0041 WIRE-LEAD,BATTERY(-)WIRE-LEAD,BATTERY(-)
-
2601226012-1326 BATTERY,YTX9-BS,12V 8AHBATTERY,YTX9-BS,12V 8AH
-
2602126021-0003 JUNCTION BOXJUNCTION BOX
-
2603126031-0256 HARNESS, FRONTHARNESS, FRONT
-
26031A26031-0268 HARNESS,MAINHARNESS,MAIN
-
2700227002-1097 RELAY-ASSY,SIGNAL LAMPRELAY-ASSY,SIGNAL LAMP
-
2700327003-0032 HORNHORN
-
4901649016-0005 COVER-SEAL,FUSECOVER-SEAL,FUSE
-
9203792037-1069 CLAMP,L=60CLAMP,L=60
-
92037A92037-1163 CLAMP,SPEED,L=58CLAMP,SPEED,L=58
-
92037B92037-1827 CLAMP,HOSECLAMP,HOSE
-
92037C92037-1903 CLAMP,SPEED,L=80.5CLAMP,SPEED,L=80.5
-
9207292072-1195 BAND,L=202BAND,L=202
-
92072A92072-1237 BAND,L=250BAND,L=250
-
9217192171-0181 CLAMPCLAMP
-
92171A92171-1424 CLAMP,DIA=15CLAMP,DIA=15
-
92171B92171-1559 CLAMP,DIA=25CLAMP,DIA=25
