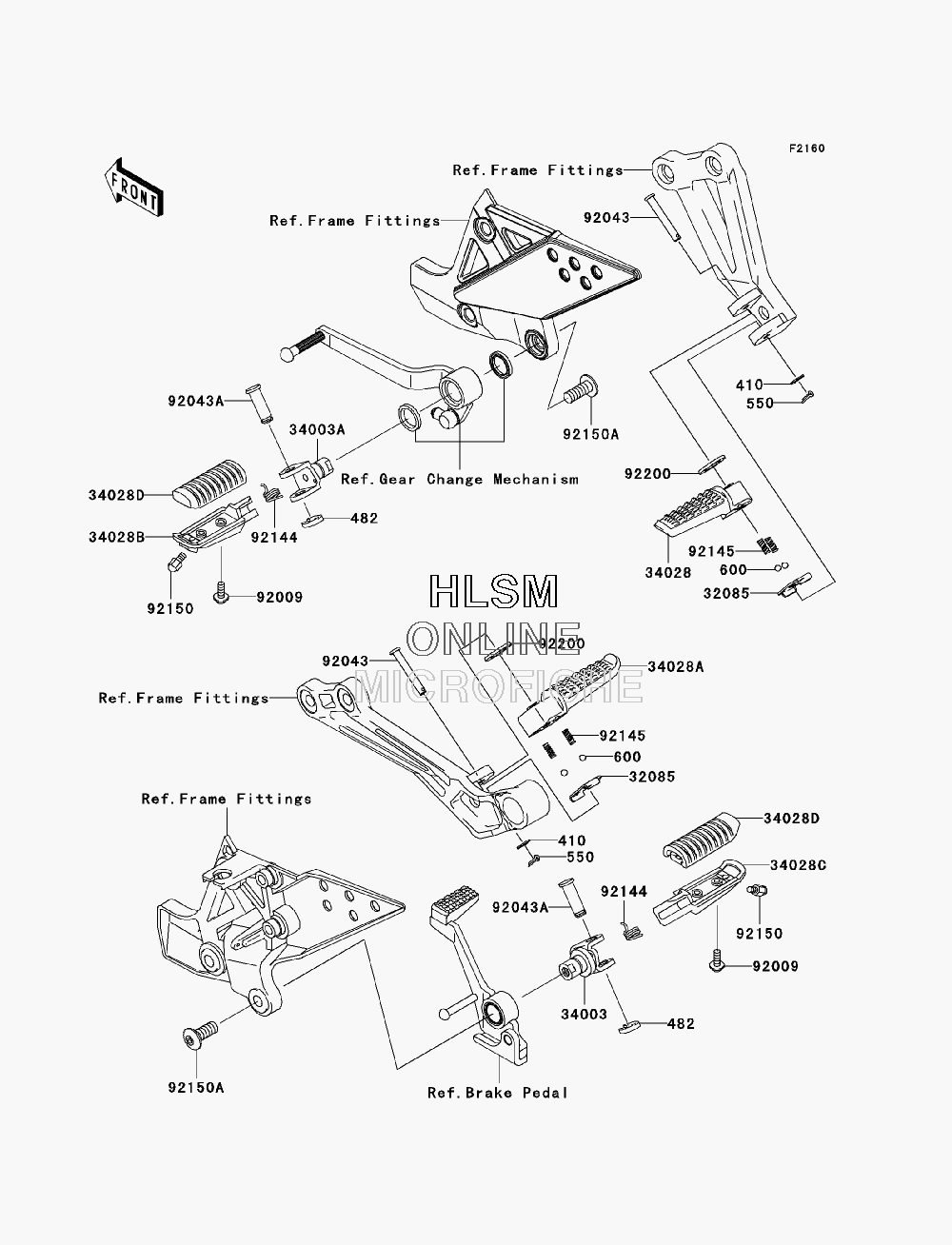

FOOTRESTS для Kawasaki Z750S - 2005 года выпуска
-
№АртикулНазвание
-
410410B0600 WASHER-PLAIN-SMALL,6MMWASHER-PLAIN-SMALL,6MM
-
482482L0100 CIRCLIP-TYPE-E,10MMCIRCLIP-TYPE-E,10MM
-
550550D2512 PIN-COTTERPIN-COTTER
-
600600A0800 BALL-STEEL,1/4"BALL-STEEL,1/4"
-
3208532085-0047 STOPPER, REAR STEPSTOPPER, REAR STEP
-
3400334003-0025 HOLDER-STEP, FRONT, RIGHT HANDHOLDER-STEP, FRONT, RIGHT HAND
-
34003A34003-1474 HOLDER-STEP, FRONT, LEFT HANDHOLDER-STEP, FRONT, LEFT HAND
-
3402834028-0004 STEP, REAR, LEFT HANDSTEP, REAR, LEFT HAND
-
34028A34028-0005 STEP, REAR, RIGHT HANDSTEP, REAR, RIGHT HAND
-
34028B34028-1428 STEP, FRONT, LEFT HANDSTEP, FRONT, LEFT HAND
-
34028C34028-1429 STEP, FRONT, RIGHT HANDSTEP, FRONT, RIGHT HAND
-
34028D34028-1430 STEP, FRONT,RUBBERSTEP, FRONT,RUBBER
-
9200992009-1404 SCREW,5X14SCREW,5X14
-
9204392043-0019 PIN,6X43PIN,6X43
-
92043A92043-1641 PIN,12X37PIN,12X37
-
9214492144-1567 SPRING,STEP RETURNSPRING,STEP RETURN
-
9214592145-1319 SPRINGSPRING
-
9215092150-1114 BOLT,BANK SENSORBOLT,BANK SENSOR
-
92150A92150-1268 BOLT,SOCKET,10X25BOLT,SOCKET,10X25
-
9220092200-0043 WASHER,16X26X2.3WASHER,16X26X2.3
