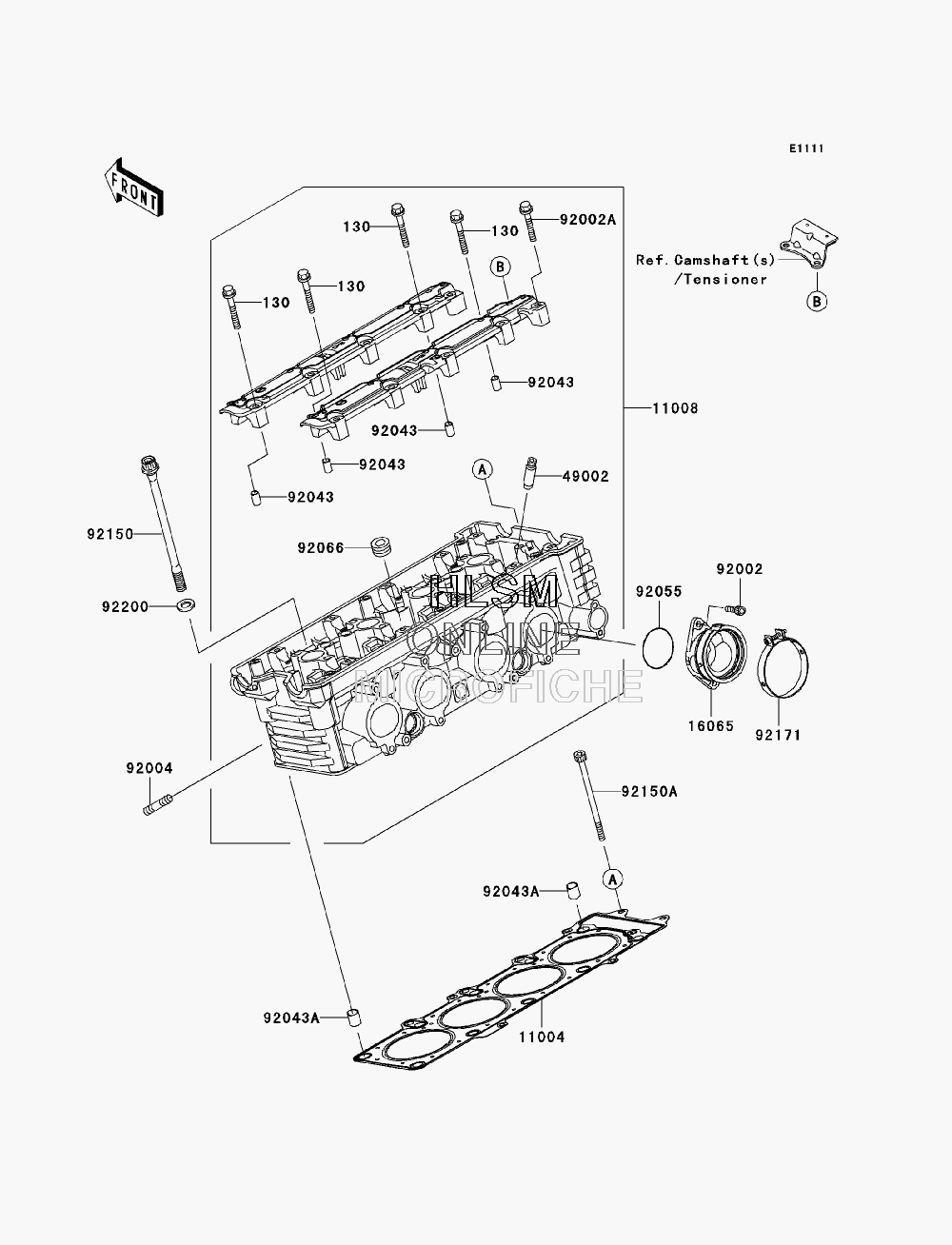

CYLINDER HEAD для Kawasaki Z750S - 2005 года выпуска
-
№АртикулНазвание
-
130130P0645 BOLT-FLANGEDBOLT-FLANGED
-
1100411004-0006 GASKET-HEADGASKET-HEAD
-
1100811008-0013 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1606516065-0008 HOLDER-THROTTLEHOLDER-THROTTLE
-
4900249002-1152 GUIDE-VALVEGUIDE-VALVE
-
9200292002-1143 BOLT,6X16BOLT,6X16
-
92002A92002-1756 BOLT,6X40BOLT,6X40
-
9200492004-1249 STUD,8X22STUD,8X22
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
92043A92043-4009 PIN,10.1X12X14PIN,10.1X12X14
-
9205592055-1401 RING-O,43.7X1.9RING-O,43.7X1.9
-
9206692066-0002 PLUG,PT1/2X12.5PLUG,PT1/2X12.5
-
9215092150-1368 BOLT,10X165BOLT,10X165
-
92150A92150-1755 BOLT,SOCKET,6X110BOLT,SOCKET,6X110
-
9217192171-1552 CLAMPCLAMP
-
9220092200-1042 WASHER,10.5X19X2.3WASHER,10.5X19X2.3
