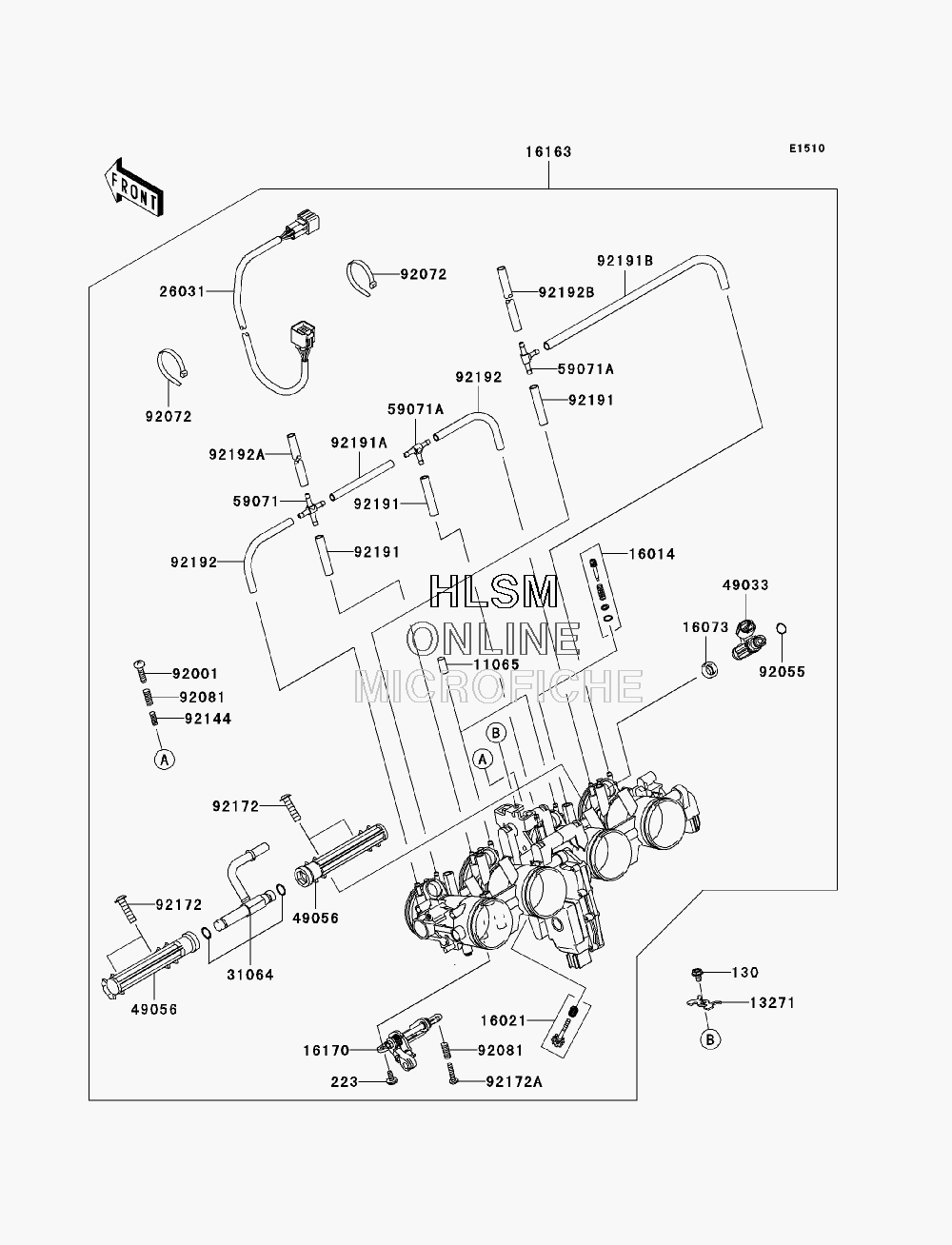

THROTTLE для Kawasaki Z750S - 2005 года выпуска
-
№АртикулНазвание
-
130130G0508 BOLT-FLANGED,5X8BOLT-FLANGED,5X8
-
223223D0410 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
1106511065-0018 CAPCAP
-
1327113271-0056 PLATEPLATE
-
1601416014-0002 SCREW-PILOT AIRSCREW-PILOT AIR
-
1602116021-0002 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-0065 THROTTLE-ASSYTHROTTLE-ASSY
-
1617016170-0002 LINK-ASSYLINK-ASSY
-
2603126031-0313 HARNESSHARNESS
-
3106431064-0005 PIPE-COMPPIPE-COMP
-
4903349033-0005 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0001 PIPE-INJECTIONPIPE-INJECTION
-
5907159071-0014 JOINT,4WAYJOINT,4WAY
-
59071A59071-3752 JOINT,3WAY,TJOINT,3WAY,T
-
9200192001-1998 BOLT,THROTTLE ADJUSTBOLT,THROTTLE ADJUST
-
9205592055-1622 RING-O,INJECTION NOZZLERING-O,INJECTION NOZZLE
-
9207292072-0012 BAND,SUB-HARNESSBAND,SUB-HARNESS
-
9208192081-1620 SPRINGSPRING
-
9214492144-1451 SPRINGSPRING
-
9217292172-0064 SCREW,PIPE INJECTIONSCREW,PIPE INJECTION
-
92172A92172-0065 SCREW,THROTTLE SYNCROSCREW,THROTTLE SYNCRO
-
9219192191-0025 TUBE,3X7X30TUBE,3X7X30
-
92191A92191-0036 TUBE,3X7X82TUBE,3X7X82
-
92191B92191-0038 TUBE,3X7X265TUBE,3X7X265
-
9219292192-0018 TUBE,3X7X95TUBE,3X7X95
-
92192A92192-0019 TUBE,3X7X170TUBE,3X7X170
-
92192B92192-0062 TUBE,3X7X275TUBE,3X7X275
