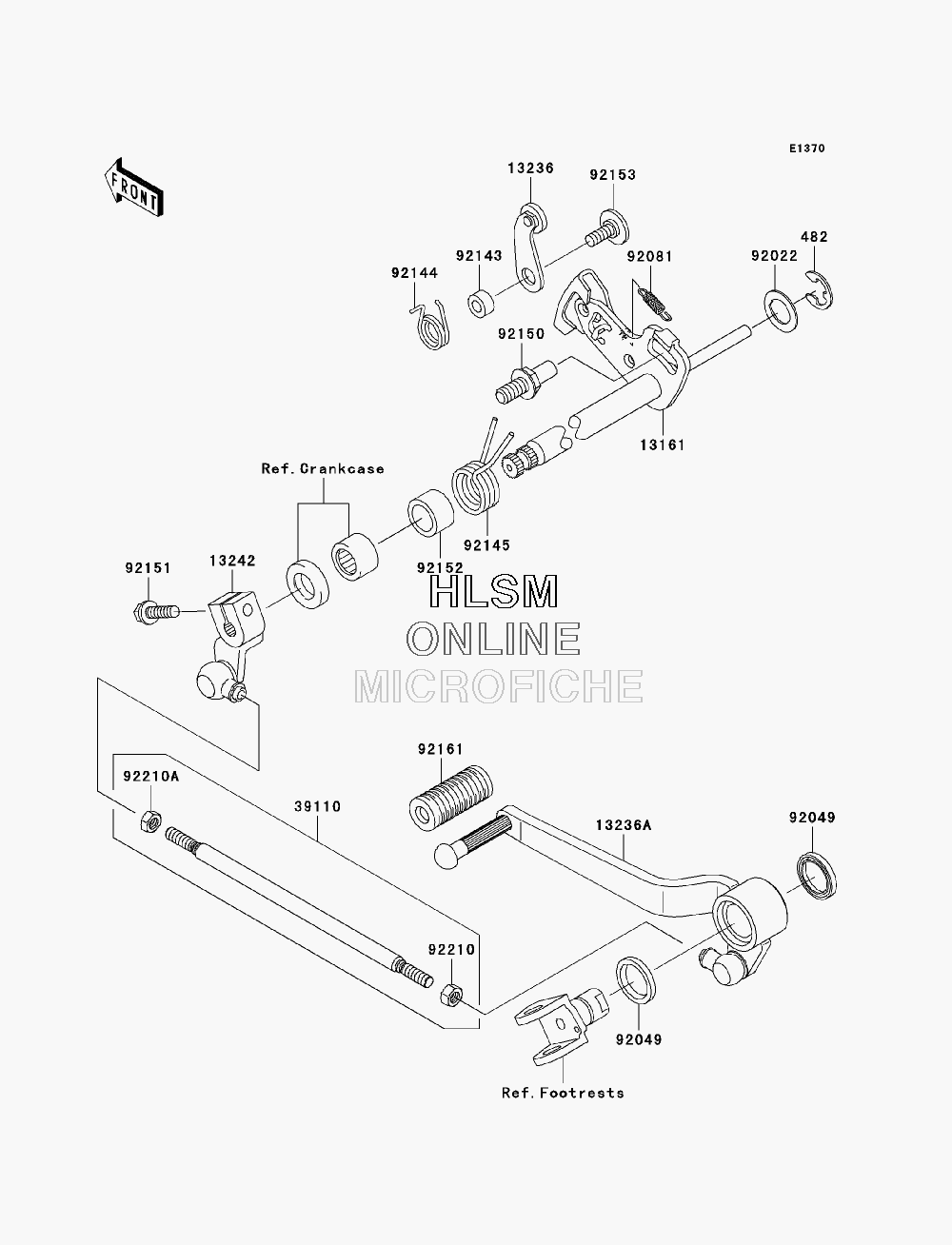

GEAR CHANGE MECHANISM для Kawasaki Z750S - 2005 года выпуска
-
№АртикулНазвание
-
482482J0200 CIRCLIP-TYPE-E,12MMCIRCLIP-TYPE-E,12MM
-
1316113161-1292 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1323613236-1243 LEVER-COMPLEVER-COMP
-
13236A13236-1365 LEVER-COMP,PEDALLEVER-COMP,PEDAL
-
1324213242-1395 LEVER-ASSY-CHANGELEVER-ASSY-CHANGE
-
3911039110-1131 ROD-ASSY-TIEROD-ASSY-TIE
-
9202292022-1628 WASHER,CHANGE SHAFTWASHER,CHANGE SHAFT
-
9204992049-1492 SEAL-OILSEAL-OIL
-
9208192081-1708 SPRING,PAWL RETURNSPRING,PAWL RETURN
-
9214392143-1595 COLLARCOLLAR
-
9214492144-1857 SPRING,GEAR POSITIONSPRING,GEAR POSITION
-
9214592145-1122 SPRINGSPRING
-
9215092150-1869 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
9215192151-1226 BOLT,6X20BOLT,6X20
-
9215292152-1383 COLLAR,14.2X19.9X12.0COLLAR,14.2X19.9X12.0
-
9215392153-0896 BOLT,6X20BOLT,6X20
-
9216192161-1300 DAMPER,CHANGE LEVERDAMPER,CHANGE LEVER
-
9221092210-1100 NUT,6MMNUT,6MM
-
92210A92210-1101 NUT, LEFT HANDED,6MMNUT, LEFT HANDED,6MM
