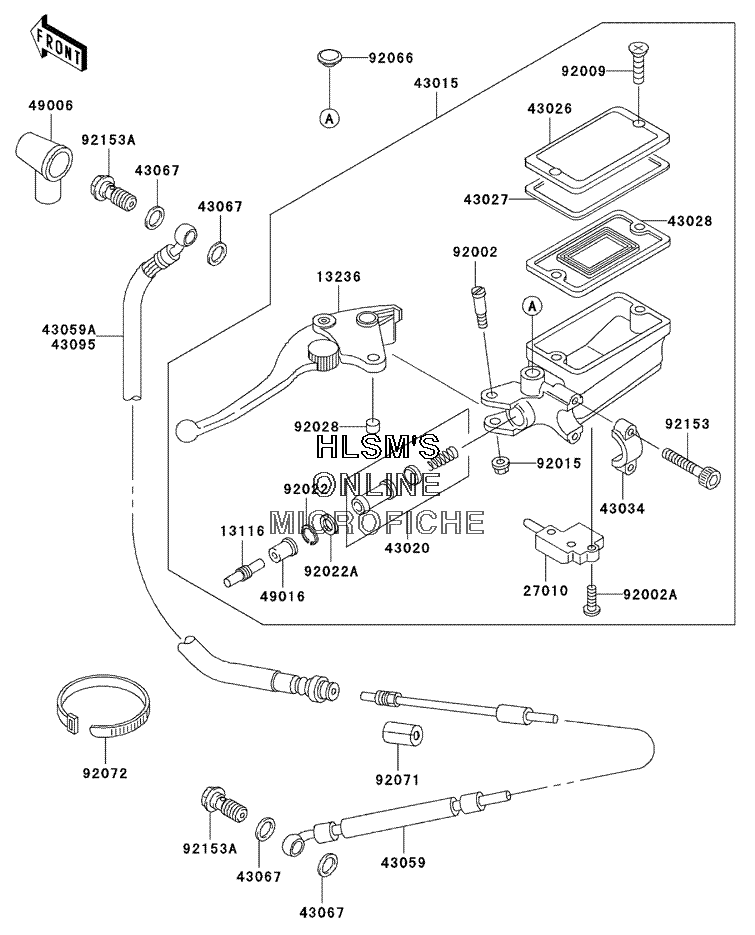

CLUTCH MASTER CYLINDER для Kawasaki Concours - 2006 года выпуска
-
№АртикулНазвание
-
1311613116-1110 ROD, PUSH, MASTER CYLINDERROD, PUSH, MASTER CYLINDER
-
1323613236-1186 LEVER, COMP, CLUTCHLEVER, COMP, CLUTCH
-
2701027010-1406 SWITCH, CLUTCHSWITCH, CLUTCH
-
4301543015-1499 CYLINDER, ASSY, MASTER, CLUTCHCYLINDER, ASSY, MASTER, CLUTCH
-
4302043020-1055 PISTON, COMP, BRAKE, CLUTCHPISTON, COMP, BRAKE, CLUTCH
-
4302643026-1076 CAP, BRAKECAP, BRAKE
-
4302743027-1055 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1058 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1054 HOLDER, BRAKE, MASTER CYLINDERHOLDER, BRAKE, MASTER CYLINDER
-
4305943059-1340 HOSE, BRAKE, CLUTCHHOSE, BRAKE, CLUTCH
-
43059A43059-1824 HOSE, BRAKE, FOR LOW HANDLE (OPTION)HOSE, BRAKE, FOR LOW HANDLE (OPTION)
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-1390 HOSE, BRAKE, FOR UP HANDLEHOSE, BRAKE, FOR UP HANDLE
-
4900649006-1040 BOOT, DUSTBOOT, DUST
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1322 BOLT, LEVER SET (BLACK)BOLT, LEVER SET (BLACK)
-
92002A92002-1325 SCREW, 4X16SCREW, 4X16
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9202292022-1605 CIRCLIPCIRCLIP
-
92022A92022-1606 WASHER, PISTONWASHER, PISTON
-
9202892028-1310 BUSHING, MASTER CYLINDERBUSHING, MASTER CYLINDER
-
9206692066-1077 PLUG, 9.5X8, POLYETHYLENEPLUG, 9.5X8, POLYETHYLENE
-
9207192071-1143 GROMMETGROMMET
-
9207292072-1195 BAND, L=202BAND, L=202
-
9215392153-0417 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92153A92153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
