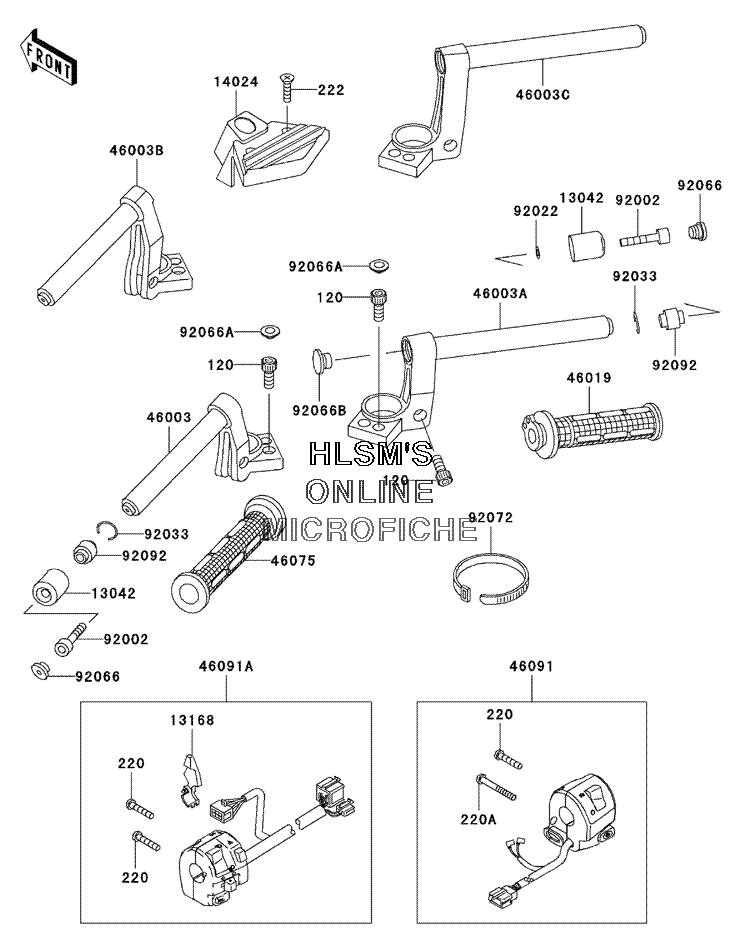

HANDLEBAR для Kawasaki Concours - 2006 года выпуска
-
№АртикулНазвание
-
120120S0820 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
220220C0525 SCREW, PAN, CROS, 5X25SCREW, PAN, CROS, 5X25
-
220A220C0540 SCREW, PAN, CROS, 5X40SCREW, PAN, CROS, 5X40
-
222222C0525 SCREW, CSK, RD, CROS, 5X25SCREW, CSK, RD, CROS, 5X25
-
1304213042-1006 WEIGHT, HANDLEWEIGHT, HANDLE
-
1316813168-1516 LEVER, CHOKELEVER, CHOKE
-
1402414024-1104 COVER, HANDLECOVER, HANDLE
-
4600346003-1213 HANDLE (LEFT) LOW TYPE (OPTION)HANDLE (LEFT) LOW TYPE (OPTION)
-
46003A46003-1214 HANDLE (RIGHT) LOW TYPE (OPTION)HANDLE (RIGHT) LOW TYPE (OPTION)
-
46003B46003-1246 HANDLE (LEFT) HIGH TYPEHANDLE (LEFT) HIGH TYPE
-
46003C46003-1247 HANDLE (RIGHT) HIGH TYPEHANDLE (RIGHT) HIGH TYPE
-
4601946019-1077 GRIP, ASSY, THROTTLEGRIP, ASSY, THROTTLE
-
4607546075-1088 GRIP (LEFT)GRIP (LEFT)
-
4609146091-1672 HOUSING, ASSY, CONTROL (RIGHT)HOUSING, ASSY, CONTROL (RIGHT)
-
46091A46091-1857 HOUSING, ASSY, CONTROL (LEFT)HOUSING, ASSY, CONTROL (LEFT)
-
9200292002-1844 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9202292022-1470 WASHER, 8.5X14.5X1.6WASHER, 8.5X14.5X1.6
-
9203392033-1102 RING, SNAP, OD=22.2RING, SNAP, OD=22.2
-
9206692066-1124 PLUG, HANDLEPLUG, HANDLE
-
92066A92066-1216 PLUGPLUG
-
92066B92066-1245 PLUG, 13.5X12, POLYETHYLENEPLUG, 13.5X12, POLYETHYLENE
-
9207292072-1197 BAND, L=365BAND, L=365
-
9209292092-1018 BUSHING, RUBBER, HANDLEBUSHING, RUBBER, HANDLE
