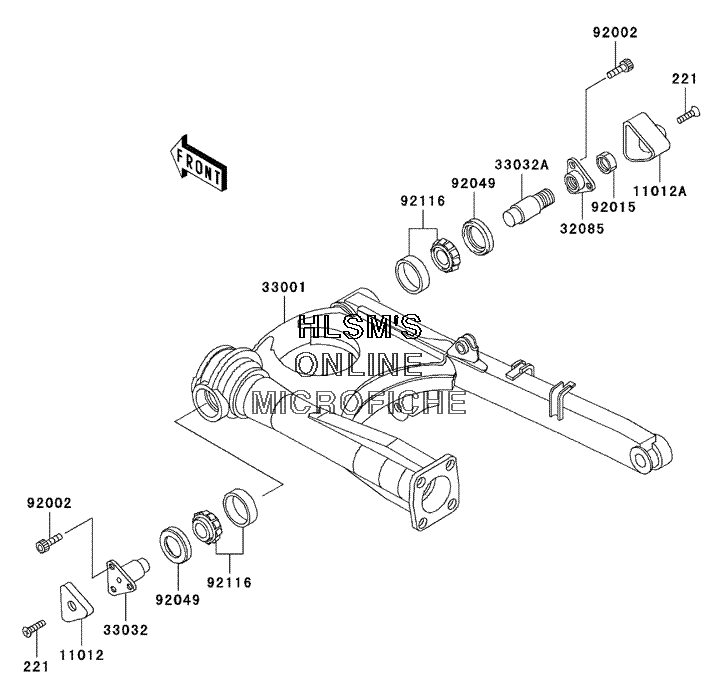

SUSPENSION - SWINGARM для Kawasaki Concours - 2006 года выпуска
-
№АртикулНазвание
-
221221C0620 SCREW, CSK, CROS, 6X20SCREW, CSK, CROS, 6X20
-
1101211012-1512 CAP, SWING ARM (LEFT)CAP, SWING ARM (LEFT)
-
11012A11012-1518 CAP, SWING ARM (RIGHT)CAP, SWING ARM (RIGHT)
-
3208532085-1234 STOPPER, SWING ARM SHAFT (RIGHT)STOPPER, SWING ARM SHAFT (RIGHT)
-
3300133001-1463 ARM, COMP, SWINGARM, COMP, SWING
-
3303233032-1122 SHAFT, SWING ARM (LEFT)SHAFT, SWING ARM (LEFT)
-
33032A33032-1123 SHAFT, SWING ARM (RIGHT)SHAFT, SWING ARM (RIGHT)
-
9200292002-1178 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9201592015-1589 NUT, 20MMNUT, 20MM
-
9204992049-1256 SEAL, OIL, 26X42X6SEAL, OIL, 26X42X6
-
9211692116-1061 BEARING, ROLLER, H1, CAP 32004JRBEARING, ROLLER, H1, CAP 32004JR
