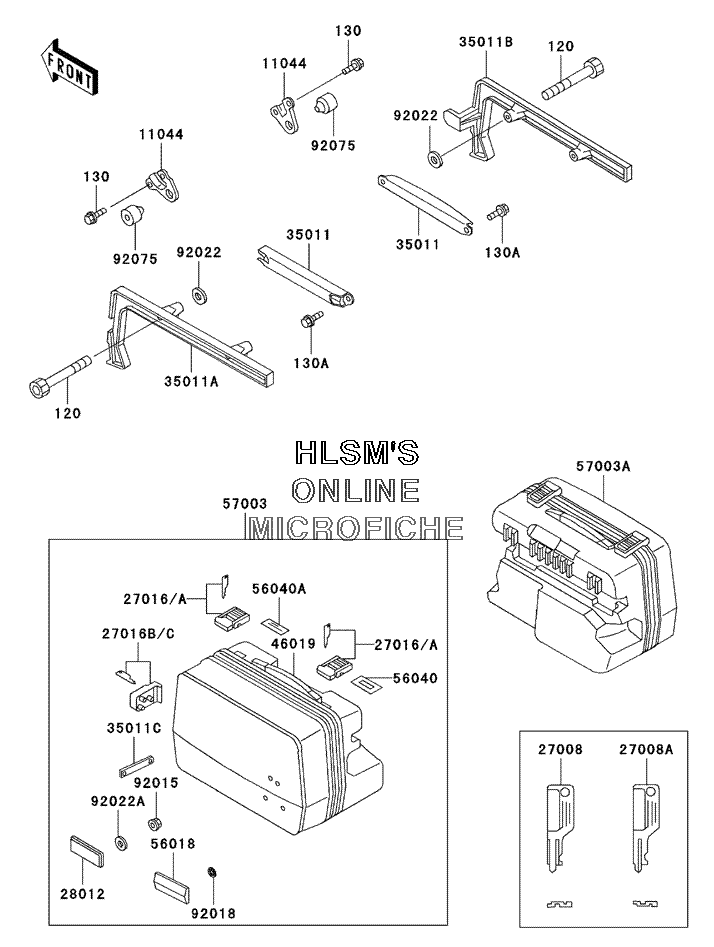

SADDLEBAGS (SIDE BAG) для Kawasaki Concours - 2006 года выпуска
-
№АртикулНазвание
-
120120S0860 BOLT, SOCKET, 8X60BOLT, SOCKET, 8X60
-
130130G0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
130A130J0816 BOLT, FLANGED, 8X16BOLT, FLANGED, 8X16
-
1104411044-1918 BRACKET, SIDE BAG STOPPERBRACKET, SIDE BAG STOPPER
-
2700827008-1127-AA KEY, LOCK, #A, SIDE BAG (OPTION)KEY, LOCK, #A, SIDE BAG (OPTION)
-
27008A27008-1127-BB KEY, LOCK, #B, SIDE BAG (OPTION)KEY, LOCK, #B, SIDE BAG (OPTION)
-
2701627016-1066-AA LOCK, ASSY, #A, SIDE BAG (OPTION)LOCK, ASSY, #A, SIDE BAG (OPTION)
-
27016A27016-1066-BB LOCK, ASSY, #B, SIDE BAG (OPTION)LOCK, ASSY, #B, SIDE BAG (OPTION)
-
27016B27016-1067-AA LOCK, ASSY, #A, SIDE BAG MOUNT (OPTION)LOCK, ASSY, #A, SIDE BAG MOUNT (OPTION)
-
27016C27016-1067-BB LOCK, ASSY, #B, SIDE BAG MOUNT (OPTION)LOCK, ASSY, #B, SIDE BAG MOUNT (OPTION)
-
2801228012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
3501135011-1299 STAY, BAGSTAY, BAG
-
35011A35011-1300 STAY, BAG (LEFT)STAY, BAG (LEFT)
-
35011B35011-1301 STAY, BAG (RIGHT)STAY, BAG (RIGHT)
-
35011C35011-1302 STAY, SIDE BAGSTAY, SIDE BAG
-
4601946019-1063 GRIP, ASSY, SIDE BAGGRIP, ASSY, SIDE BAG
-
5601856018-1948 MARK, SIDE BAG, CONCOURSMARK, SIDE BAG, CONCOURS
-
5604056040-1178 LABEL, WARNING, SIDE BAG, PAYLOADLABEL, WARNING, SIDE BAG, PAYLOAD
-
56040A56040-1192 LABEL, WARNING, SIDE BAG, LOCKLABEL, WARNING, SIDE BAG, LOCK
-
5700357003-1068 BAG, ASSY, SIDE (LEFT)BAG, ASSY, SIDE (LEFT)
-
57003A57003-1069 BAG, ASSY, SIDE (RIGHT)BAG, ASSY, SIDE (RIGHT)
-
9201592015-1263 NUT, LOCK, FLANGE CAP, 5MMNUT, LOCK, FLANGE CAP, 5MM
-
9201892018-005 NUT, PUSH, 3MMNUT, PUSH, 3MM
-
9202292022-1317 WASHER, 8.5X20X1.6 (BLACK)WASHER, 8.5X20X1.6 (BLACK)
-
92022A92022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9207592075-1859 DAMPERDAMPER
