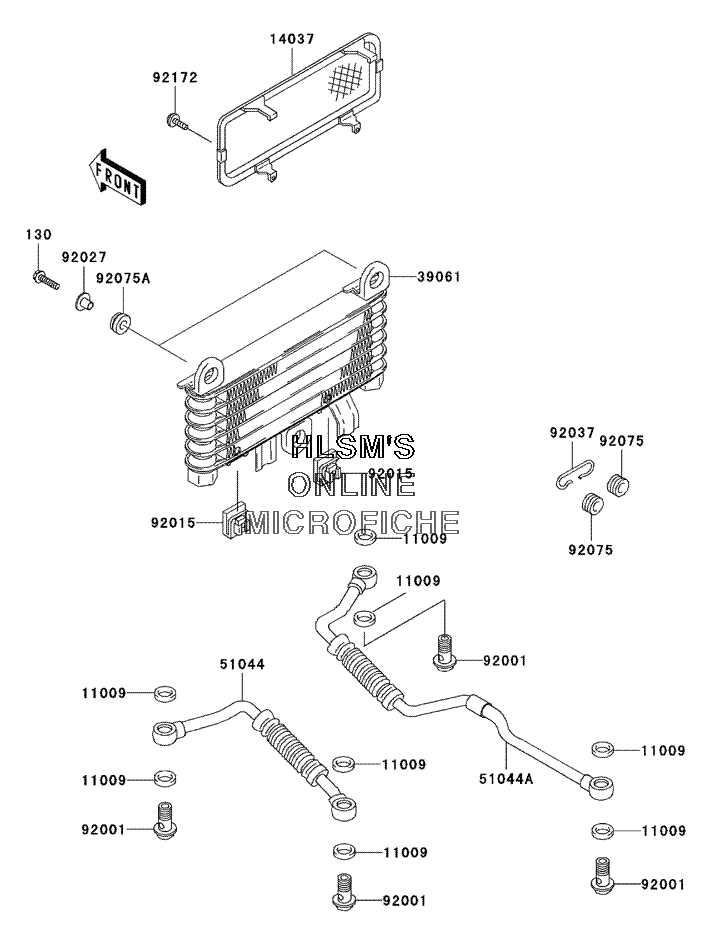

OIL COOLER для Kawasaki Concours - 2006 года выпуска
-
№АртикулНазвание
-
130130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
1100911009-1461 GASKET, 14X19.5X1.4GASKET, 14X19.5X1.4
-
1403714037-1073 SCREEN, OIL COOLERSCREEN, OIL COOLER
-
3906139061-1117 OIL COOLEROIL COOLER
-
5104451044-1068 TUBE, ASSY, OIL COOLER (LEFT)TUBE, ASSY, OIL COOLER (LEFT)
-
51044A51044-1086 TUBE, ASSY, OIL COOLER (RIGHT)TUBE, ASSY, OIL COOLER (RIGHT)
-
9200192001-1930 BOLT, 14X28.5BOLT, 14X28.5
-
9201592015-1758 NUT, 6MMNUT, 6MM
-
9202792027-1651 COLLAR, FLANGED, L=12.1 (BLACK)COLLAR, FLANGED, L=12.1 (BLACK)
-
9203792037-1905 CLAMP, OIL COOLERCLAMP, OIL COOLER
-
9207592075-1942 DAMPER, OIL COOLERDAMPER, OIL COOLER
-
92075A92075-277 DAMPERDAMPER
-
9217292172-0003 SCREW, TAPPING, 6X12SCREW, TAPPING, 6X12
Все узлы модели:
- AIR CLEANER
- BALANCER SHAFT
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL W/ TORQUE LINK
- BREATHER COVER W/ OIL PAN
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CARBURETOR
- CARBURETOR PARTS
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CLUTCH MASTER CYLINDER
- COWLING
- COWLING - LOWERS
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS
- DRIVE SHAFT/FINAL GEAR
- ENGINE COVER
- ENGINE MOUNT
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT BEVEL GEAR
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF ONLY)
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- METER(S)
- MUFFLER(S)
- • OIL COOLER
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SADDLEBAGS (SIDE BAG)
- SEAT
- SIDE COVERS
- STAND(S)
- STARTER MOTOR
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
