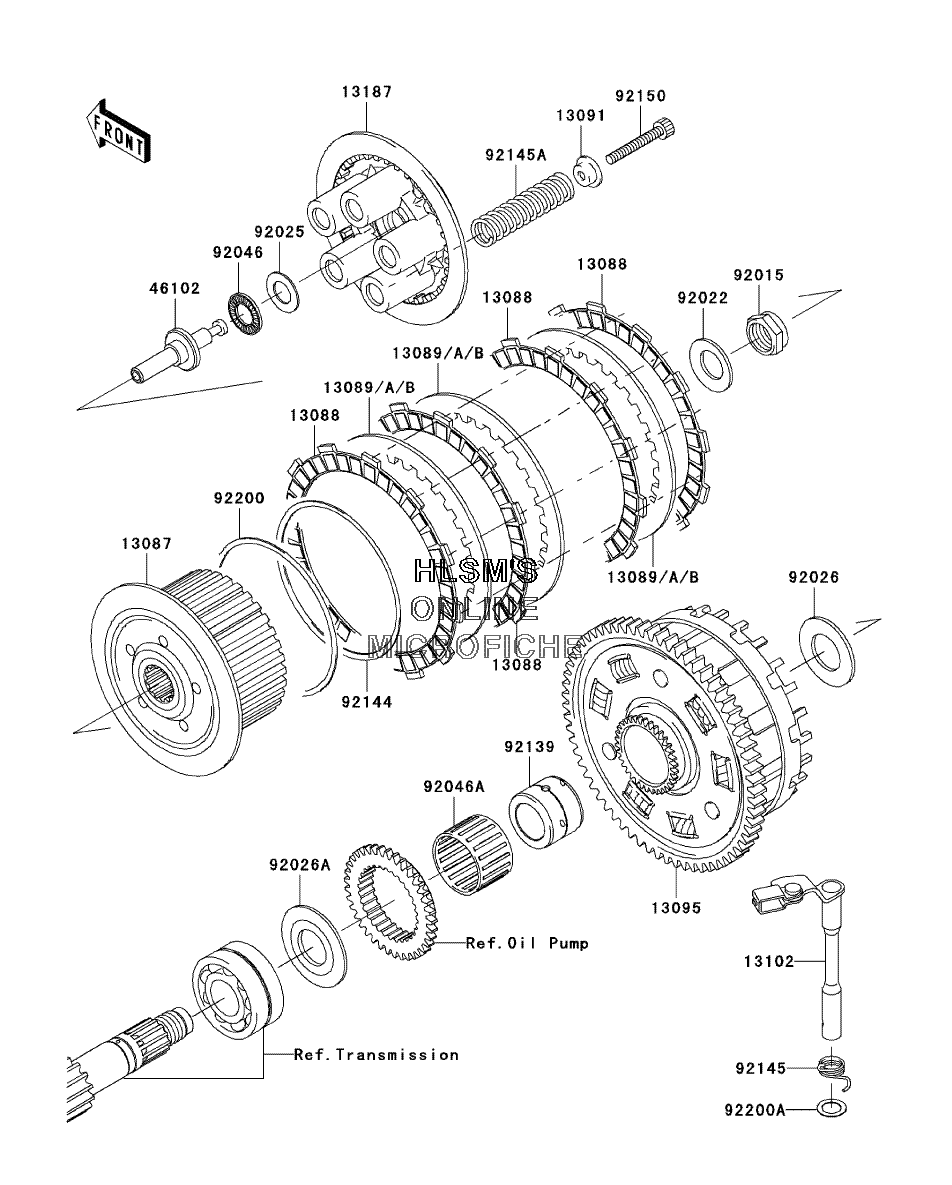

CLUTCH для Kawasaki Z1000 - 2006 года выпуска
-
№АртикулНазвание
-
1308713087-1173 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1124 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1073 PLATE, CLUTCH, T=2.0PLATE, CLUTCH, T=2.0
-
13089A13089-1084 PLATE, CLUTCH, T=2.3PLATE, CLUTCH, T=2.3
-
13089B13089-1115 PLATE, CLUTCH, T=2.6PLATE, CLUTCH, T=2.6
-
1309113091-1041 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-1417 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-1162 RELEASE, COMP, CLUTCHRELEASE, COMP, CLUTCH
-
1318713187-1083 PLATE, CLUTCH OPERATINGPLATE, CLUTCH OPERATING
-
4610246102-1425 RODROD
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-1868 WASHERWASHER
-
9202592025-1137 SHIM, 15.3X27.5X1.20SHIM, 15.3X27.5X1.20
-
9202692026-022 SPACER, 25.5X47X2.5SPACER, 25.5X47X2.5
-
92026A92026-1497 SPACERSPACER
-
9204692046-1052 BEARING, NEEDLE, AXK1102BEARING, NEEDLE, AXK1102
-
92046A92046-1263 BEARING, NEEDLE, K38X43X28.8XBEARING, NEEDLE, K38X43X28.8X
-
9213992139-0067 BUSHING, 25X38X29.05BUSHING, 25X38X29.05
-
9214492144-1854 SPRING, FRONTICTION PLATESPRING, FRONTICTION PLATE
-
9214592145-0066 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
92145A92145-1364 SPRING, CLUTCHSPRING, CLUTCH
-
9215092150-1855 BOLT, CLUTCH OPERATINGBOLT, CLUTCH OPERATING
-
9220092200-1260 WASHER, FRONTICTION PLATEWASHER, FRONTICTION PLATE
-
92200A92200-1487 WASHER, 12X18.5X0.5WASHER, 12X18.5X0.5
