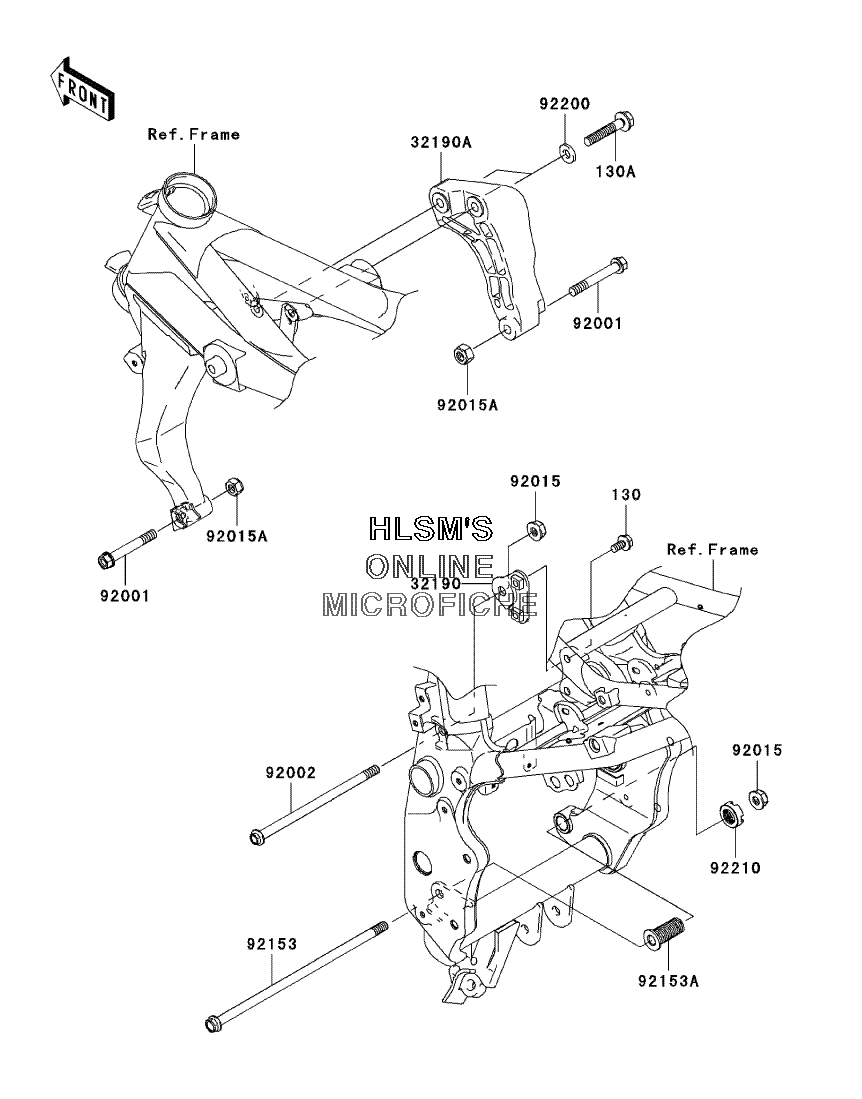

ENGINE MOUNT для Kawasaki Z1000 - 2006 года выпуска
-
№АртикулНазвание
-
130130J0816 BOLT, FLANGED, 8X16BOLT, FLANGED, 8X16
-
130A130J1055 BOLT, FLANGED, 10X55BOLT, FLANGED, 10X55
-
3219032190-0009 BRACKET, ENGINE, REAR (RIGHT/UPPER)BRACKET, ENGINE, REAR (RIGHT/UPPER)
-
32190A32190-0010 BRACKET, ENGINE, FRONT (RIGHT)BRACKET, ENGINE, FRONT (RIGHT)
-
9200192001-1618 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
9200292002-1337 BOLT, 10X183BOLT, 10X183
-
9201592015-1180 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1189 NUT, LOCK, 10MM (BLACK)NUT, LOCK, 10MM (BLACK)
-
9215392153-0559 BOLT, FLANGED, 10X240BOLT, FLANGED, 10X240
-
92153A92153-1098 BOLT, ENGINE MOUNT, 18MMBOLT, ENGINE MOUNT, 18MM
-
9220092200-0121 WASHER, 10X22X3.2WASHER, 10X22X3.2
-
9221092210-1203 NUT, 18MMNUT, 18MM
