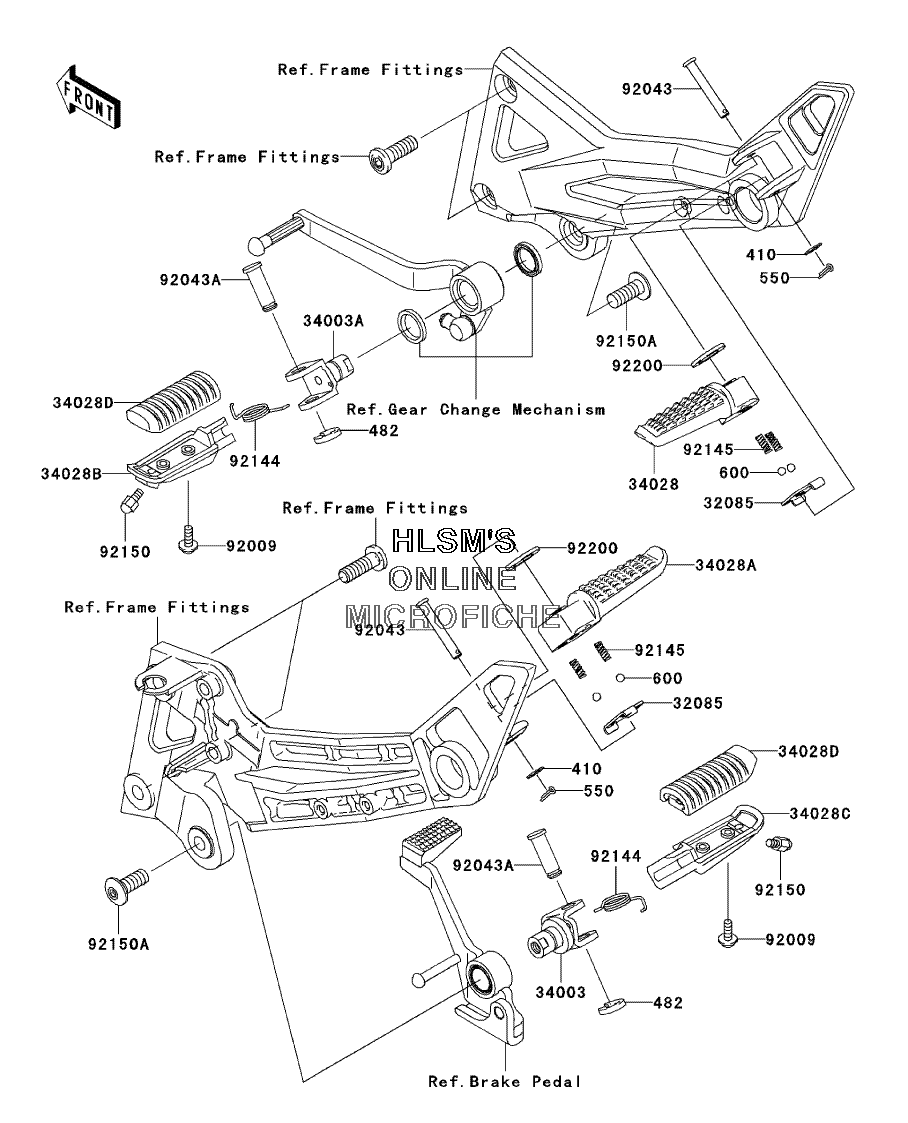

FOOTRESTS для Kawasaki Z1000 - 2006 года выпуска
-
№АртикулНазвание
-
410410B0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
482482L0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
550550D2512 PIN, COTTERPIN, COTTER
-
600600A0800 BALL, STEEL, 1/4"BALL, STEEL, 1/4"
-
3208532085-0047 STOPPER, REAR STEPSTOPPER, REAR STEP
-
3400334003-0025 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
34003A34003-1474 HOLDER, STEPHOLDER, STEP
-
3402834028-0004 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028A34028-0005 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
34028B34028-1428 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028C34028-1429 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
34028D34028-1430 STEP, FRONT, RUBBERSTEP, FRONT, RUBBER
-
9200992009-1404 SCREW, 5X14SCREW, 5X14
-
9204392043-0019 PIN, 6X43PIN, 6X43
-
92043A92043-1641 PIN, 12X37PIN, 12X37
-
9214492144-1567 SPRING, STEP RETURNSPRING, STEP RETURN
-
9214592145-1319 SPRINGSPRING
-
9215092150-1114 BOLT, BANK SENSORBOLT, BANK SENSOR
-
92150A92150-1268 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
9220092200-0043 WASHER, 16X26X2.3WASHER, 16X26X2.3
