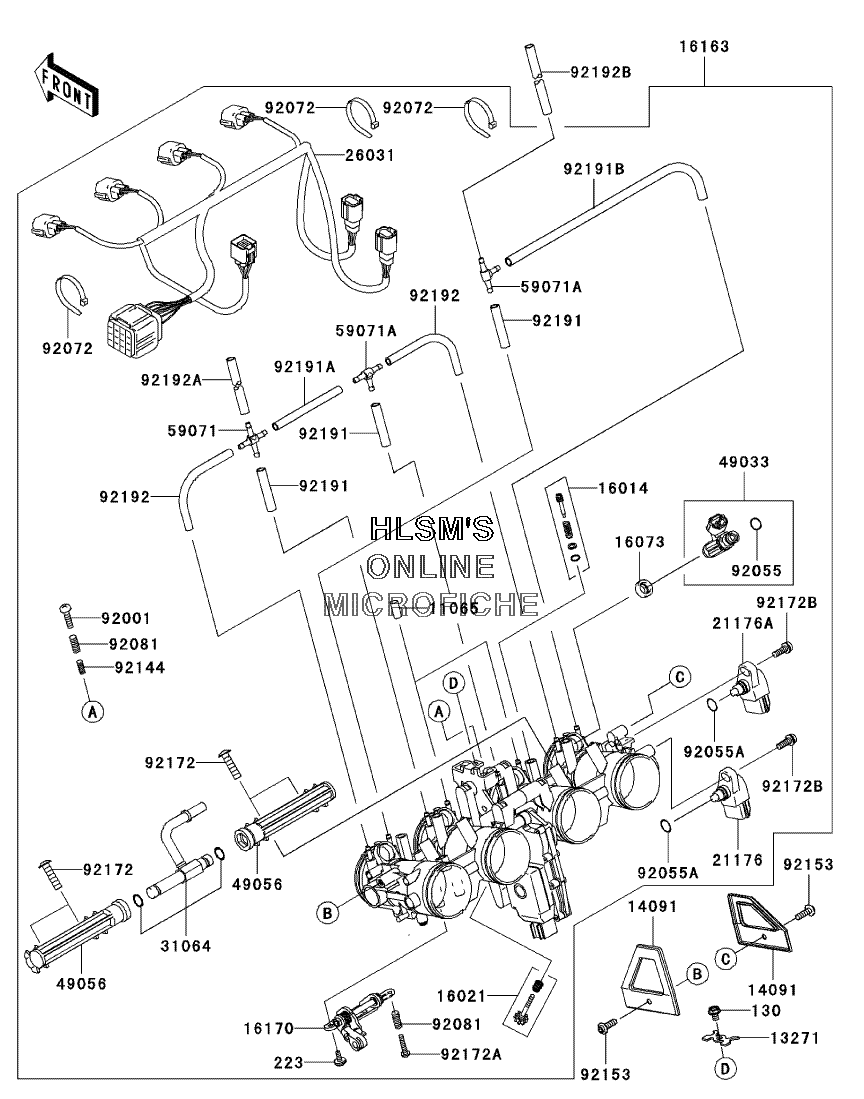

THROTTLE для Kawasaki Z1000 - 2006 года выпуска
-
№АртикулНазвание
-
130130G0508 BOLT, FLANGED, 5X8BOLT, FLANGED, 5X8
-
223223D0410 SCREW, PAN, WS, CROS, 4X10SCREW, PAN, WS, CROS, 4X10
-
1106511065-0018 CAPCAP
-
1327113271-0056 PLATEPLATE
-
1409114091-0055 COVER, THROTTLE, BODYCOVER, THROTTLE, BODY
-
1601416014-0002 SCREW, PILOT AIRSCREW, PILOT AIR
-
1602116021-0002 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-0032 THROTTLE, ASSYTHROTTLE, ASSY
-
1617016170-0004 LINK, ASSYLINK, ASSY
-
2117621176-0002 SENSOR, TPSSENSOR, TPS
-
21176A21176-0003 SENSOR, TPSSENSOR, TPS
-
2603126031-0040 HARNESSHARNESS
-
3106431064-0005 PIPE, COMPPIPE, COMP
-
4903349033-1060 NOZZLE, INJECTIONNOZZLE, INJECTION
-
4905649056-0001 PIPE, INJECTIONPIPE, INJECTION
-
5907159071-0014 JOINT, 4WAYJOINT, 4WAY
-
59071A59071-3752 JOINT, 3WAY, TJOINT, 3WAY, T
-
9200192001-1998 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
9205592055-1622 O-RING, INJECTION NOZZLEO-RING, INJECTION NOZZLE
-
92055A92055-1671 O-RINGO-RING
-
9207292072-0012 BAND, SUB, HARNESSBAND, SUB, HARNESS
-
9208192081-1620 SPRINGSPRING
-
9214492144-1451 SPRINGSPRING
-
9215392153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9217292172-0064 SCREW, PIPE INJECTIONSCREW, PIPE INJECTION
-
92172A92172-0065 SCREW, THROTTLE SYNCROSCREW, THROTTLE SYNCRO
-
92172B92172-0080 SCREWSCREW
-
9219192191-0025 TUBE, 3X7X30TUBE, 3X7X30
-
92191A92191-0036 TUBE, 3X7X82TUBE, 3X7X82
-
92191B92191-0038 TUBE, 3X7X265TUBE, 3X7X265
-
9219292192-0018 TUBE, 3X7X95TUBE, 3X7X95
-
92192A92192-0019 TUBE, 3X7X170TUBE, 3X7X170
-
92192B92192-0062 TUBE, 3X7X275TUBE, 3X7X275
