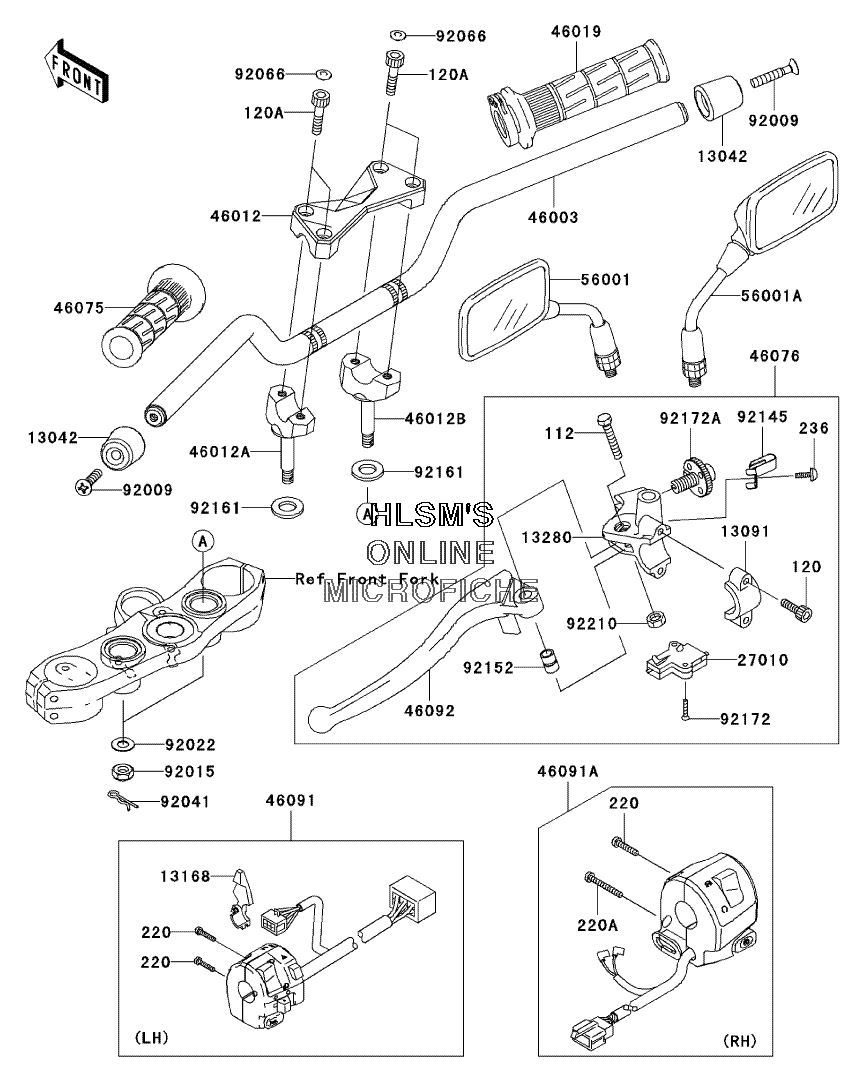

HANDLEBAR для Kawasaki Z1000 - 2006 года выпуска
-
№АртикулНазвание
-
112112J0630 BOLT, UPSET, 6X30BOLT, UPSET, 6X30
-
120120S0620 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
120A120S0830 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
220220C0525 SCREW, PAN, CROS, 5X25SCREW, PAN, CROS, 5X25
-
220A220C0540 SCREW, PAN, CROS, 5X40SCREW, PAN, CROS, 5X40
-
236236C0410 SCREW, PAN, WSP, CROS, 4X10SCREW, PAN, WSP, CROS, 4X10
-
1304213042-1005 WEIGHT, HANDLEWEIGHT, HANDLE
-
1309113091-1624 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1316813168-1516 LEVER, CHOKELEVER, CHOKE
-
1328013280-0017 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
2701027010-1094 SWITCH, CLUTCH (BLACK)SWITCH, CLUTCH (BLACK)
-
4600346003-1594 HANDLEHANDLE
-
4601246012-1338 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
46012A46012-1339 HOLDER, HANDLE, LOWER (LEFT)HOLDER, HANDLE, LOWER (LEFT)
-
46012B46012-1340 HOLDER, HANDLE, LOWER (RIGHT)HOLDER, HANDLE, LOWER (RIGHT)
-
4601946019-0001 GRIP, ASSY, THROTTLEGRIP, ASSY, THROTTLE
-
4607546075-1144 GRIP (LEFT)GRIP (LEFT)
-
4607646076-0005 LEVER, ASSY, GRIP, CLUTCHLEVER, ASSY, GRIP, CLUTCH
-
4609146091-0031 HOUSING, ASSY, CONTROL (LEFT)HOUSING, ASSY, CONTROL (LEFT)
-
46091A46091-1891 HOUSING, ASSY, CONTROL (RIGHT)HOUSING, ASSY, CONTROL (RIGHT)
-
4609246092-0003 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
5600156001-0030 MIRROR, ASSY (LEFT)MIRROR, ASSY (LEFT)
-
56001A56001-0031 MIRROR, ASSY (RIGHT)MIRROR, ASSY (RIGHT)
-
9200992009-1257 SCREW, 8X45SCREW, 8X45
-
9201592015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
9204192041-1060 COTTER, 8MMCOTTER, 8MM
-
9206692066-1216 PLUGPLUG
-
9214592145-1286 SPRINGSPRING
-
9215292152-0103 COLLARCOLLAR
-
9216192161-0037 DAMPERDAMPER
-
9217292172-0183 SCREW, 3X16SCREW, 3X16
-
92172A92172-1060 SCREW, ADJUST NUTSCREW, ADJUST NUT
-
9221092210-0006 NUT, LOCK, 6MMNUT, LOCK, 6MM
