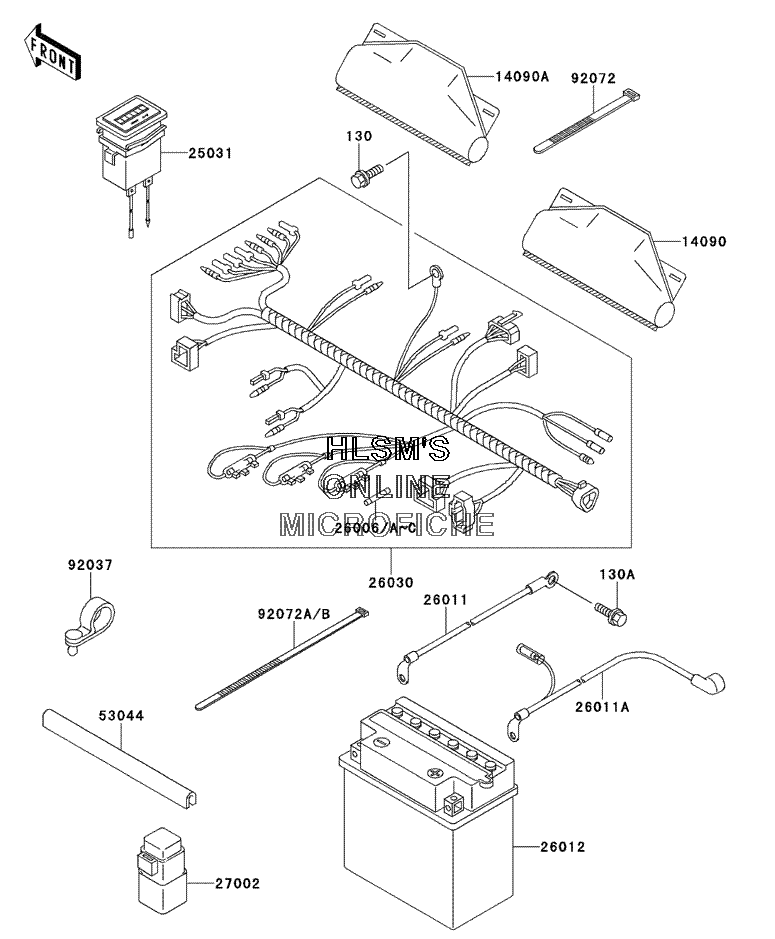

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki MULE 2500 (KAF620-C6) - 2000 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT-FLANGEDBOLT-FLANGED
-
130A130J0812 BOLT-FLANGEDBOLT-FLANGED
-
1409014090-1331 COVER, COUPLERCOVER, COUPLER
-
14090A14090-1611 COVER, COUPLERCOVER, COUPLER
-
2503125031-1013 METER-ASSY, HOURMETER-ASSY, HOUR
-
2600626006-1062 FUSE, 8A, L=30FUSE, 8A, L=30
-
26006A26006-1063 FUSE, 5A, L=32FUSE, 5A, L=32
-
26006B26006-1064 FUSE, 20A, L=32FUSE, 20A, L=32
-
26006C26006-1065 FUSE, 30A, L=32FUSE, 30A, L=32
-
2601126011-1444 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
26011A26011-1551 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
2601226012-1242 BATTERY, YB16CL-B, 12V 19AHBATTERY, YB16CL-B, 12V 19AH
-
2603026030-1617 HARNESS, MAINHARNESS, MAIN
-
2700227002-1068 RELAY-ASSYRELAY-ASSY
-
5304453044-1137 TRIMTRIM
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-1197 BAND, L=365BAND, L=365
-
92072B92072-1239 BAND, L=188BAND, L=188
