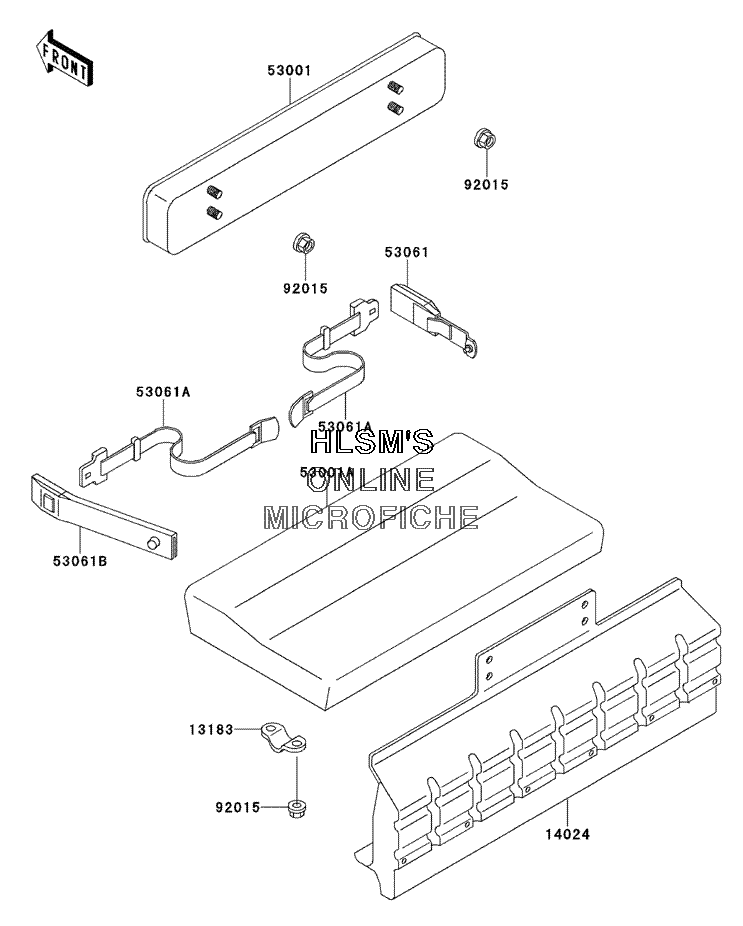

SEAT для Kawasaki MULE 2500 (KAF620-C6) - 2000 года выпуска
-
№АртикулНазвание
-
1318313183-1400 PLATE, SEATPLATE, SEAT
-
1402414024-1779 COVER, SEAT, BACKCOVER, SEAT, BACK
-
5300153001-1584-PA SEAT-ASSY, BACK, GRAYSEAT-ASSY, BACK, GRAY
-
53001A53001-1705-PA SEAT-ASSY, CUSHION, GRAYSEAT-ASSY, CUSHION, GRAY
-
5306153061-1004 BELT-SEAT, BUCKLEBELT-SEAT, BUCKLE
-
53061A53061-1005 BELT-SEAT, LATCH PLATEBELT-SEAT, LATCH PLATE
-
53061B53061-1006 BELT-SEAT, BUCKLEBELT-SEAT, BUCKLE
-
9201592015-1696 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
Все узлы модели:
- AIR CLEANER
- AIR CLEANER W/ BELT CONVERTER
- AIR CLEANER W/ BELT CONVERTER (OPTIONAL)
- BRAKE - FRONT W/ HUB
- BRAKE - MASTER CYLINDER
- BRAKE - REAR W/ HUBS
- BRAKE PEDAL W/ THROTTLE LEVER
- BRAKE PIPING
- CABLES
- CARBURETOR
- CARRIER W/ SCREEN (OPTIONAL)
- CHASSIS ELECTRICAL EQUIPMENT
- CONVERTER COVER W/DRIVE BELT
- CRANKCASE
- CRANKSHAFT W/ PISTON(S)
- CYLINDER HEAD
- DECALS (GREEN)
- DECALS (RED)
- DIFFERENTIAL
- DRIVE CONVERTER
- DRIVE SHAFT
- DRIVEN CONVERTER
- FENDER - FRONT
- FENDER - REAR (OPTIONAL)
- FRAME
- FRAME FITTINGS (COVER)
- FRAME FITTINGS (LEVER(S))
- FUEL PUMP
- FUEL TANK
- GEAR BOX
- GEAR CHANGE MECHANISM
- GENERATOR W/ IGNITION SYSTEM
- GENERATOR W/ METER (OPTIONAL)
- GUARD(S) / CAB FRAME
- HEADLIGHT(S) W/ IGNITION SWITCH
- LABELS
- MUFFLER(S)
- OIL PAN W/ OIL FILTER
- RADIATOR
- • SEAT
- STARTER MOTOR
- STEERING WHEEL
- SUSPENSION - FRONT
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER(S)
- TAILLIGHT(S) (OPTIONAL)
- THROTTLE CONTROL
- TRANSMISSION
- VALVE(S) W/ CAMSHAFT(S)
- WATER PUMP
- WHEELS - TIRES
