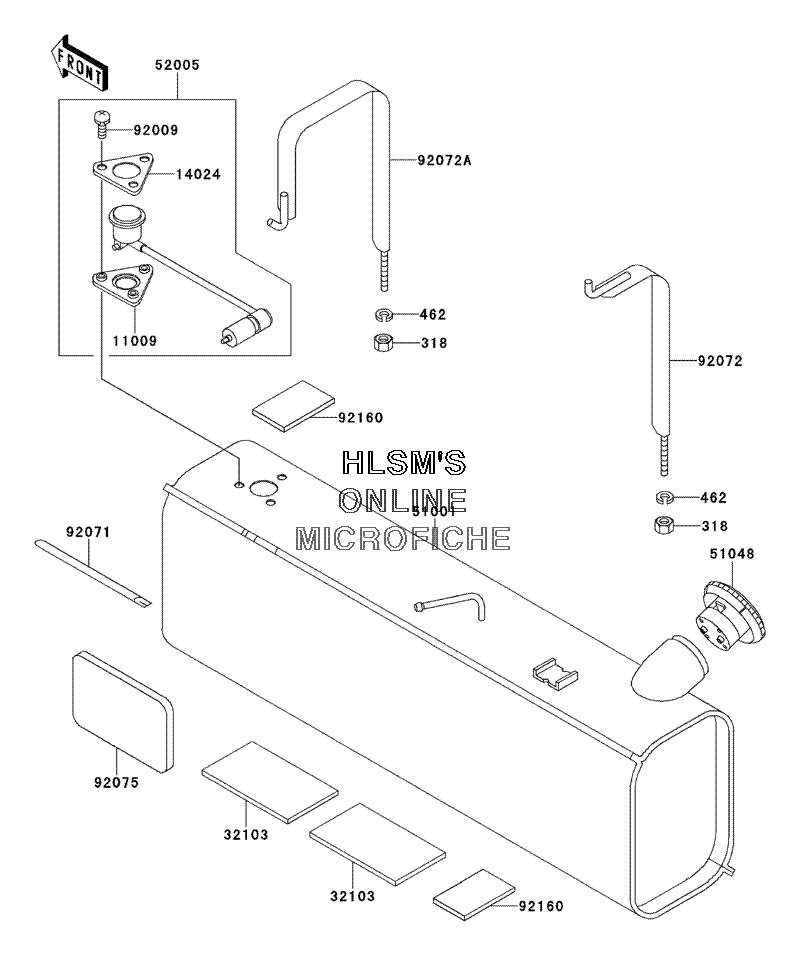

FUEL TANK для Kawasaki MULE 2500 (KAF620-C6) - 2000 года выпуска
-
№АртикулНазвание
-
318318C0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
462462L0800 WASHER-SPRING, 8MMWASHER-SPRING, 8MM
-
1100911009-1755 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1402414024-1697 COVER, FUEL GAUGECOVER, FUEL GAUGE
-
3210332103-027 DAMPER, BATTERYDAMPER, BATTERY
-
5100151001-1502 TANK-COMP-FUELTANK-COMP-FUEL
-
5104851048-1103 CAP-ASSY-TANK, FUELCAP-ASSY-TANK, FUEL
-
5200552005-1085 GAUGE, FUELGAUGE, FUEL
-
9200992009-1541 SCREW, 6X14SCREW, 6X14
-
9207192071-1198 GROMMETGROMMET
-
9207292072-1248 BAND, FUEL TANKBAND, FUEL TANK
-
92072A92072-1249 BAND, FUEL TANKBAND, FUEL TANK
-
9207592075-3759 DAMPERDAMPER
-
9216092160-1102 DAMPERDAMPER
