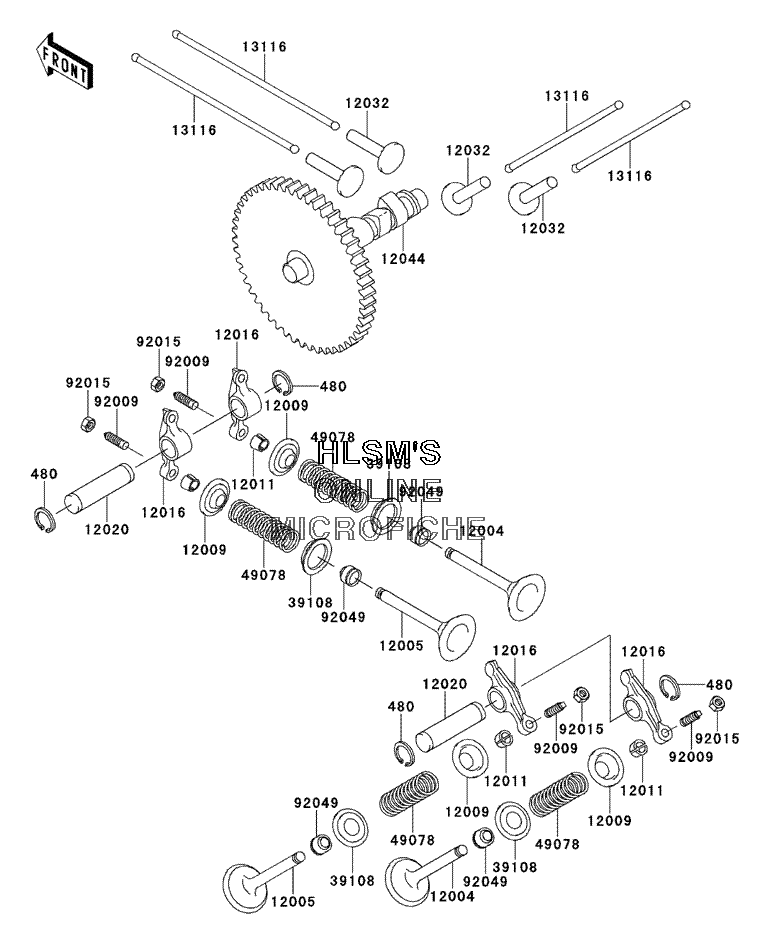

VALVE(S) W/ CAMSHAFT(S) для Kawasaki MULE 2500 (KAF620-C6) - 2000 года выпуска
-
№АртикулНазвание
-
480480J1200 CIRCLIP-TYPE-C, 12MMCIRCLIP-TYPE-C, 12MM
-
1200412004-2104 VALVE-INTAKEVALVE-INTAKE
-
1200512005-2093 VALVE-EXHAUSTVALVE-EXHAUST
-
1200912009-2067 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
1201112011-2056 COLLETCOLLET
-
1201612016-2056 ARM-ROCKERARM-ROCKER
-
1202012020-2059 SHAFT-ROCKERSHAFT-ROCKER
-
1203212032-2064 TAPPETTAPPET
-
1204412044-2239 CAMSHAFT-VALVECAMSHAFT-VALVE
-
1311613116-2057 ROD-PUSHROD-PUSH
-
3910839108-2057 RETAINER-SPRINGRETAINER-SPRING
-
4907849078-2082 SPRING-ENGINE VALVESPRING-ENGINE VALVE
-
9200992009-1109 SCREW, VALVE ADJUSTSCREW, VALVE ADJUST
-
9201592015-1137 NUT, VALVE ADJUST LOCKNUT, VALVE ADJUST LOCK
-
9204992049-2109 SEAL-OILSEAL-OIL
