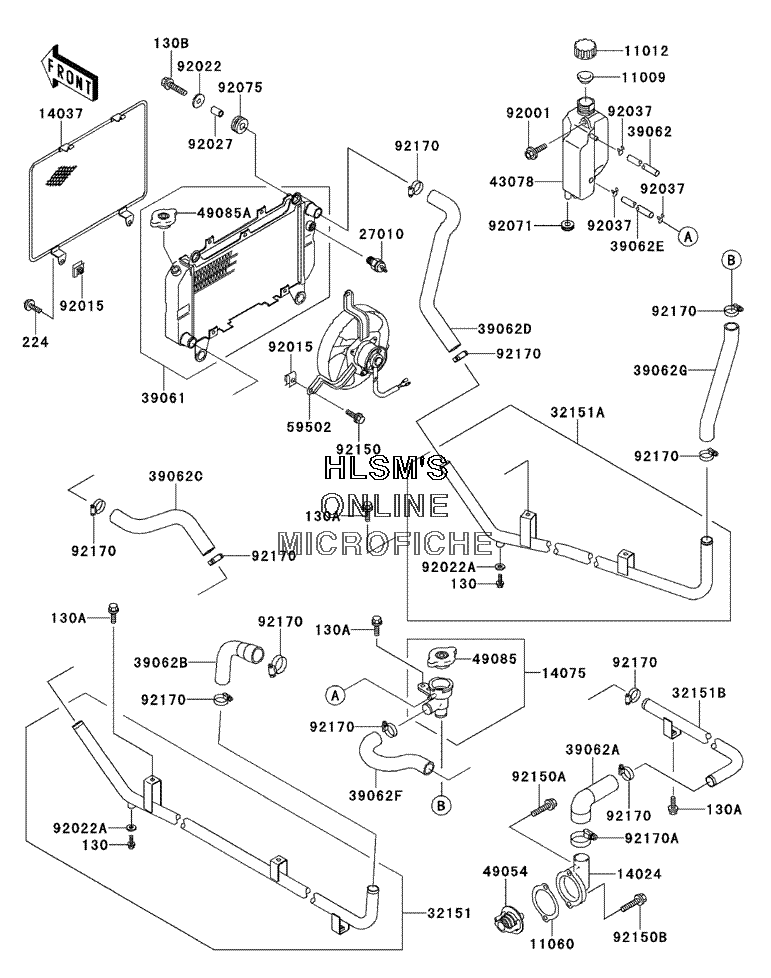

RADIATOR для Kawasaki MULE 2500 (KAF620-C6) - 2000 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT-FLANGEDBOLT-FLANGED
-
130A130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
130B130J0825 BOLT-FLANGED, 8X25 (BLACK)BOLT-FLANGED, 8X25 (BLACK)
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1106011060-2084 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
1402414024-2293 COVER, THERMOSTATCOVER, THERMOSTAT
-
1403714037-1258 SCREENSCREEN
-
1407514075-1061 CAP-ASSY, RADIATORCAP-ASSY, RADIATOR
-
2701027010-1317 SWITCH, FANSWITCH, FAN
-
3215132151-1313 PIPE, COOLING (LEFT)PIPE, COOLING (LEFT)
-
32151A32151-1314 PIPE, COOLING (RIGHT)PIPE, COOLING (RIGHT)
-
32151B32151-1315 PIPE (RIGHT)PIPE (RIGHT)
-
3906139061-1270 RADIATOR-ASSYRADIATOR-ASSY
-
3906239062-1125 HOSE-COOLINGHOSE-COOLING
-
39062A39062-1521 HOSE-COOLING (RIGHT), OUTLETHOSE-COOLING (RIGHT), OUTLET
-
39062B39062-1589 HOSE-COOLING (LEFT), INTAKEHOSE-COOLING (LEFT), INTAKE
-
39062C39062-1590 HOSE-COOLING, RADIATOR (LEFT)HOSE-COOLING, RADIATOR (LEFT)
-
39062D39062-1591 HOSE-COOLING, RADIATOR (RIGHT)HOSE-COOLING, RADIATOR (RIGHT)
-
39062E39062-1592 HOSE-COOLING, CAP-RESERVOIRHOSE-COOLING, CAP-RESERVOIR
-
39062F39062-1593 HOSE-COOLING, UPPERHOSE-COOLING, UPPER
-
39062G39062-1594 HOSE-COOLING, LOWERHOSE-COOLING, LOWER
-
4307843078-1072 RESERVOIRRESERVOIR
-
4905449054-2056 THERMOSTATTHERMOSTAT
-
4908549085-1066 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
49085A49085-1068 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5950259502-1131 FAN-ASSYFAN-ASSY
-
9200192001-1860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
9201592015-1487 NUTNUT
-
9202292022-1317 WASHER, 8.5X20X1.6 (BLACK)WASHER, 8.5X20X1.6 (BLACK)
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202792027-102 COLLAR, 8.8X12X10.7COLLAR, 8.8X12X10.7
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9207192071-1115 GROMMETGROMMET
-
9207592075-294 DAMPERDAMPER
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
92150A92150-2230 BOLT, 6X40BOLT, 6X40
-
92150B92150-2231 BOLT, 6X20BOLT, 6X20
-
9217092170-1286 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170A92170-1678 CLAMPCLAMP
-
224224C0612 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS
