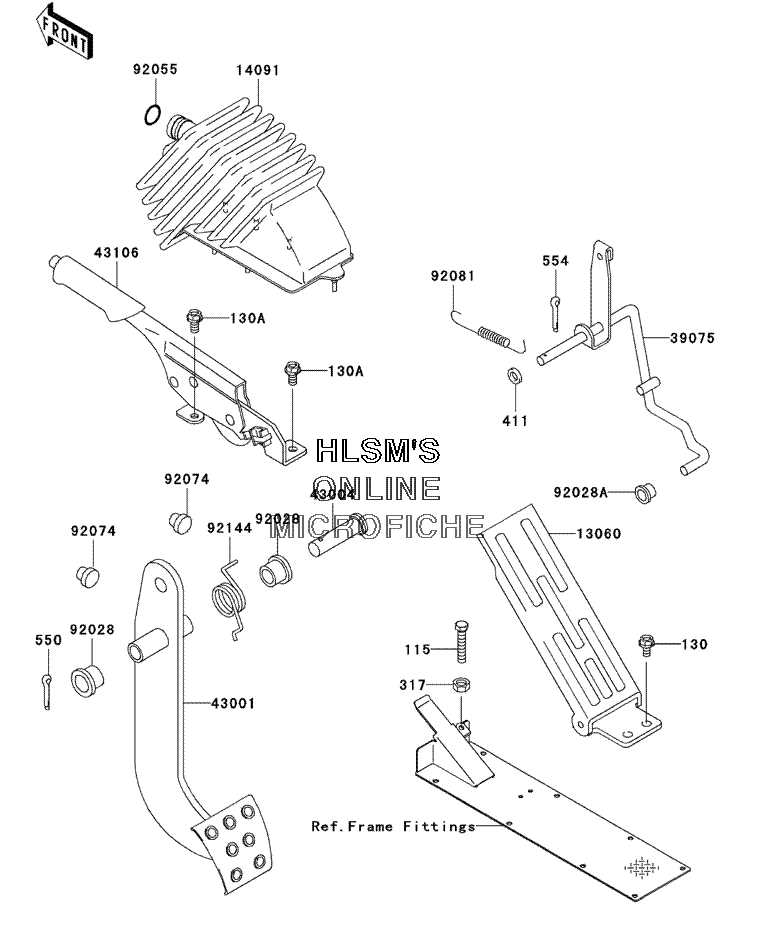

BRAKE PEDAL W/ THROTTLE LEVER для Kawasaki MULE 3010 Trans4x4 Hardwoods Green® HD (KAF620-K1) - 2005 года выпуска
-
№АртикулНазвание
-
115115D0840 BOLT, SMALL, UPSET, 8X40BOLT, SMALL, UPSET, 8X40
-
130130C0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
130A130D0816 BOLT, FLANGEDBOLT, FLANGED
-
317317H0800 NUT, HEX, SMALL, 8MMNUT, HEX, SMALL, 8MM
-
411411E1000 WASHER, PLAIN, 10MMWASHER, PLAIN, 10MM
-
550550D2525 PIN, COTTER, 2.5X25PIN, COTTER, 2.5X25
-
554554A1000 PIN, SNAP, 10MMPIN, SNAP, 10MM
-
1306013060-1061 PEDAL, THROTTLEPEDAL, THROTTLE
-
1409114091-0067 COVER, PARKING LEVERCOVER, PARKING LEVER
-
3907539075-1057 LEVER, THROTTLELEVER, THROTTLE
-
4300143001-1320 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
4300443004-1128 SHAFT, BRAKESHAFT, BRAKE
-
4310643106-1005 LEVER, ASSY, PARKING BRAKELEVER, ASSY, PARKING BRAKE
-
9202892028-1571 BUSHINGBUSHING
-
92028A92028-1601 BUSHING, THROTTLE LEVERBUSHING, THROTTLE LEVER
-
9205592055-1633 O-RING, 18X24X3O-RING, 18X24X3
-
9207492074-028 PLUG, 7X2PLUG, 7X2
-
9208192081-1922 SPRINGSPRING
-
9214492144-1536 SPRINGSPRING
