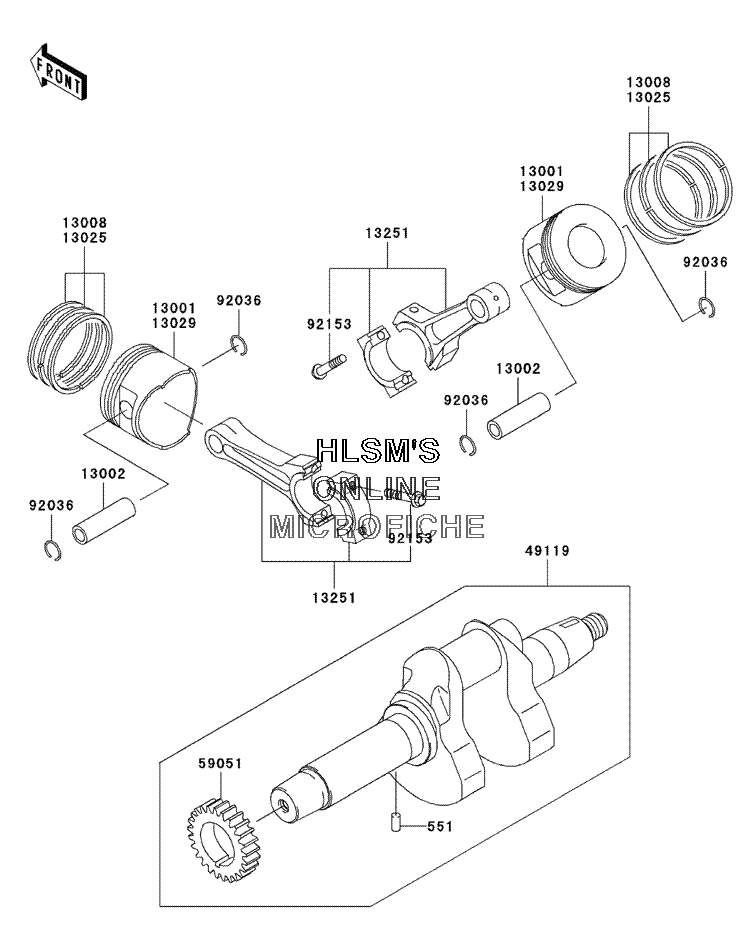

CRANKSHAFT W/ PISTON(S) для Kawasaki MULE 3010 Trans4x4 Hardwoods Green® HD (KAF620-K1) - 2005 года выпуска
-
№АртикулНазвание
-
551551A0408 PIN, DOWEL, 4X8PIN, DOWEL, 4X8
-
1300113001-2131 PISTON, ENGINE (STD)PISTON, ENGINE (STD)
-
1300213002-1013 PIN, PISTONPIN, PISTON
-
1300813008-6025 RING, SET, PISTON (STD)RING, SET, PISTON (STD)
-
1302513025-6008 RING, SET, PISTON (0.50)RING, SET, PISTON (0.50)
-
1302913029-2105 PISTON, ENGINE (0.50)PISTON, ENGINE (0.50)
-
1325113251-6068 ROD, ASSY, CONNECTINGROD, ASSY, CONNECTING
-
4911949119-2200 CRANKSHAFT, ASSYCRANKSHAFT, ASSY
-
5905159051-2112 GEAR, SPURGEAR, SPUR
-
9203692036-021 RING, SNAP, PISTON PINRING, SNAP, PISTON PIN
-
9215392153-2054 BOLT, 7X35.2BOLT, 7X35.2
