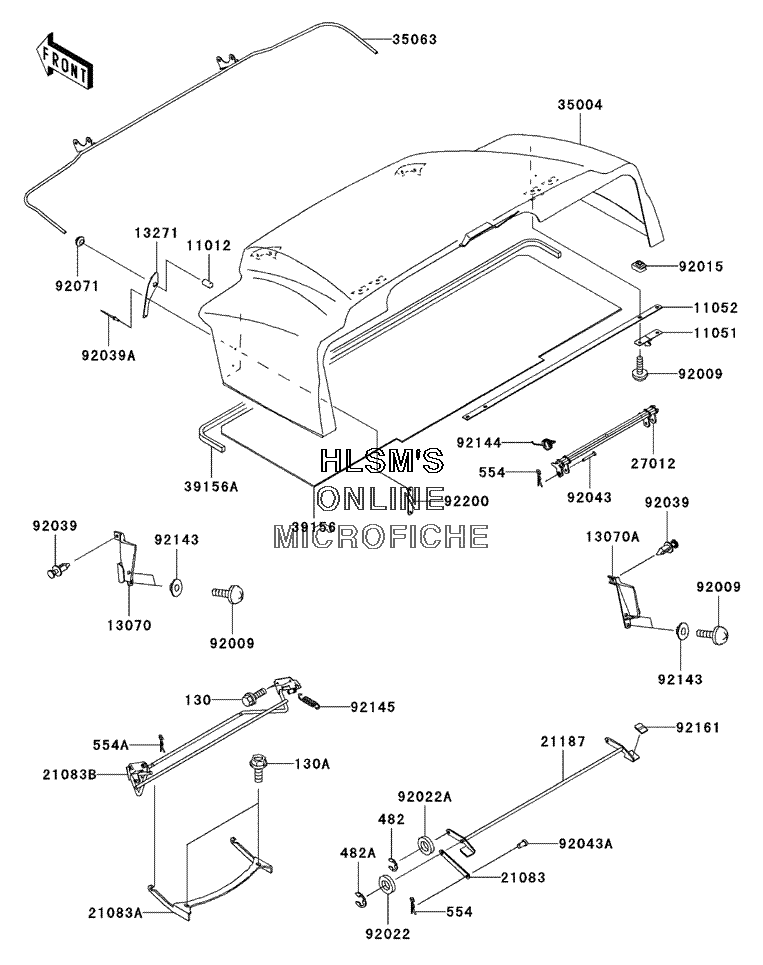

FENDER(S) для Kawasaki MULE 3010 Trans4x4 Hardwoods Green® HD (KAF620-K1) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
130A130J0816 BOLT, FLANGED, 8X16 (BLACK)BOLT, FLANGED, 8X16 (BLACK)
-
482482L5000 CIRCLIP, TYPE, E, 5MMCIRCLIP, TYPE, E, 5MM
-
482A482L7000 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
554554A0600 PIN, SNAPPIN, SNAP
-
554A554A0800 PIN, SNAP, 8MMPIN, SNAP, 8MM
-
1101211012-1985 CAPCAP
-
1105111051-1756 BRACKETBRACKET
-
1105211052-1369 BRACKETBRACKET
-
1307013070-1367 GUIDE (LEFT)GUIDE (LEFT)
-
13070A13070-1368 GUIDE (RIGHT)GUIDE (RIGHT)
-
1327113271-1800 PLATE, REARPLATE, REAR
-
2108321083-1146 ARMARM
-
21083A21083-1163 ARMARM
-
21083B21083-1172 ARMARM
-
2118721187-1085 ARM, ASSYARM, ASSY
-
2701227012-1608 HOOKHOOK
-
3500435004-0018-374 FENDER, FRONT (C.H.GREEN)FENDER, FRONT (C.H.GREEN)
-
3506335063-1203 STAY, FRONT FENDERSTAY, FRONT FENDER
-
3915639156-0014 PAD, FRONT FENDERPAD, FRONT FENDER
-
39156A39156-1685 PADPAD
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9202292022-1317 WASHER, 8.5X20X1.6 (BLACK)WASHER, 8.5X20X1.6 (BLACK)
-
92022A92022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
9203992039-1229 RIVETRIVET
-
92039A92039-1244 RIVETRIVET
-
9204392043-1625 PIN, 6X39PIN, 6X39
-
92043A92043-1626 PIN, 6X9PIN, 6X9
-
9207192071-019 GROMMET, 10MMGROMMET, 10MM
-
9214392143-1087 COLLARCOLLAR
-
9214492144-1174 SPRING, SEAT HOOKSPRING, SEAT HOOK
-
9214592145-1335 SPRINGSPRING
-
9216192161-1197 DAMPERDAMPER
-
9220092200-1592 WASHERWASHER
