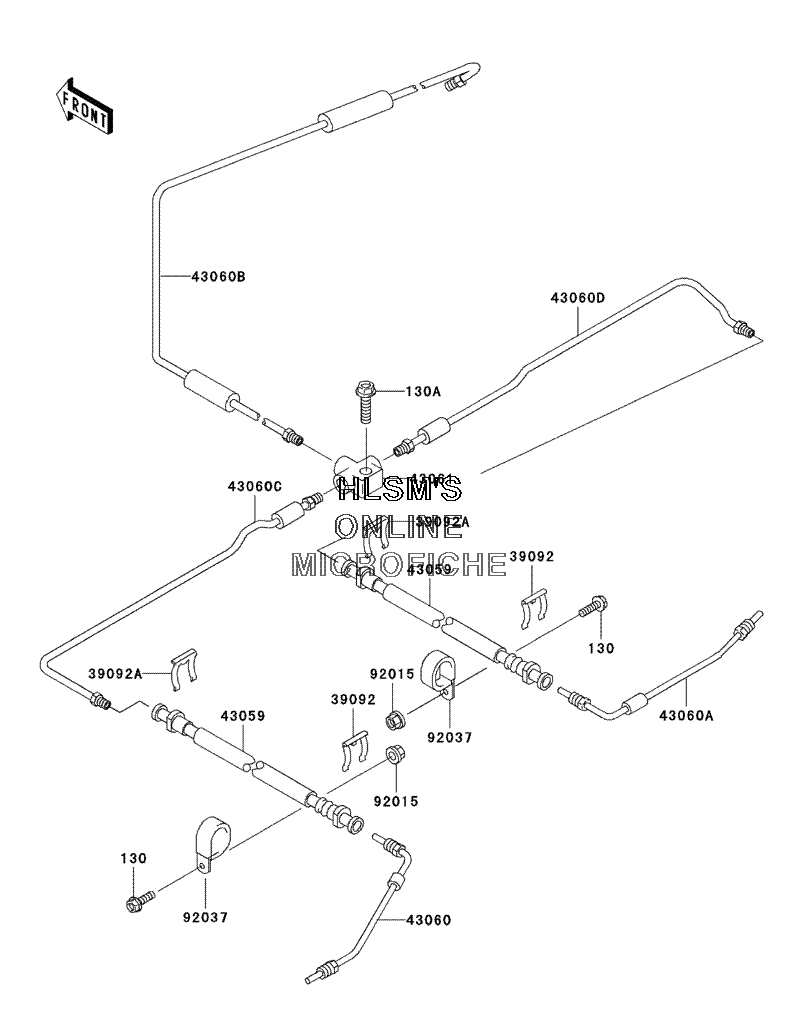

BRAKE PIPING для Kawasaki MULE 3010 Trans4x4 Hardwoods Green® HD (KAF620-K1) - 2005 года выпуска
-
№АртикулНазвание
-
130130D0620 BOLT, FLANGEDBOLT, FLANGED
-
130A130D0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
3909239092-1052 PIN, HAIRPIN, HAIR
-
39092A39092-1059 PIN, HAIRPIN, HAIR
-
4305943059-1490 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
4306043060-1083 PIPE, BRAKE, REAR (LEFT)PIPE, BRAKE, REAR (LEFT)
-
43060A43060-1084 PIPE, BRAKE, REAR (RIGHT)PIPE, BRAKE, REAR (RIGHT)
-
43060B43060-7501 PIPE, BRAKE, REAR, FRONTPIPE, BRAKE, REAR, FRONT
-
43060C43060-7502 PIPE, BRAKE, MIDDLE (LEFT)PIPE, BRAKE, MIDDLE (LEFT)
-
43060D43060-7503 PIPE, BRAKE, MIDDLE (RIGHT)PIPE, BRAKE, MIDDLE (RIGHT)
-
4306143061-1063 JOINT, BRAKEJOINT, BRAKE
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9203792037-1608 CLAMPCLAMP
