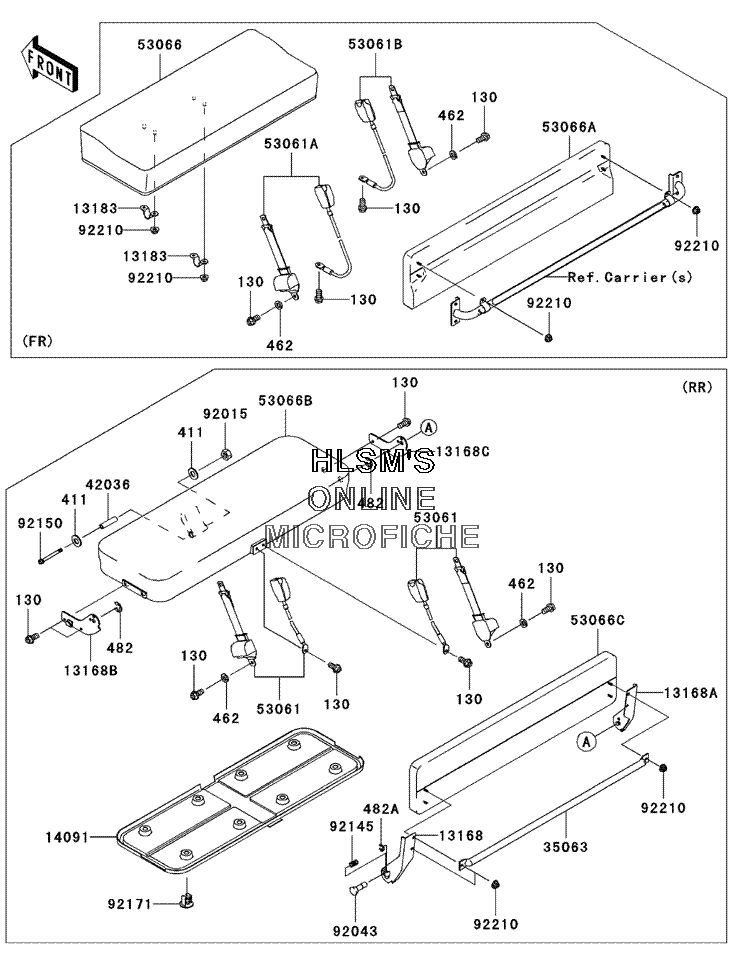

SEAT для Kawasaki MULE 3010 Trans4x4 Hardwoods Green® HD (KAF620-K1) - 2005 года выпуска
-
№АртикулНазвание
-
130130J1020 BOLT, FLANGED, 10X20BOLT, FLANGED, 10X20
-
411411F1200 WASHER, PLAINWASHER, PLAIN
-
462462K1000 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
482482J0200 CIRCLIP, TYPE, E, 12MMCIRCLIP, TYPE, E, 12MM
-
482A482J8000 CIRCLIP, TYPE, E, 8MMCIRCLIP, TYPE, E, 8MM
-
1316813168-7502 LEVER, SEAT, TOP (LEFT)LEVER, SEAT, TOP (LEFT)
-
13168A13168-7503 LEVER, SEAT, TOP (RIGHT)LEVER, SEAT, TOP (RIGHT)
-
13168B13168-7504 LEVER, SEAT (LOWER) (LEFT)LEVER, SEAT (LOWER) (LEFT)
-
13168C13168-7505 LEVER, SEAT (LOWER) (RIGHT)LEVER, SEAT (LOWER) (RIGHT)
-
1318313183-1400 PLATE, SEATPLATE, SEAT
-
1409114091-7528 COVER, REAR SEAT, BOTTOMCOVER, REAR SEAT, BOTTOM
-
3506335063-7510 STAY, REAR BACKSTAY, REAR BACK
-
4203642036-7501 SLEEVE, 12.1X20X85SLEEVE, 12.1X20X85
-
5306153061-7502 BELT, SEAT, REARBELT, SEAT, REAR
-
53061A53061-7503 BELT, SEAT, FRONT (LEFT)BELT, SEAT, FRONT (LEFT)
-
53061B53061-7504 BELT, SEAT, FRONT (RIGHT)BELT, SEAT, FRONT (RIGHT)
-
5306653066-7502-MB SEAT, ASSY, FRONT (LOWER) (S.M.BROWN)SEAT, ASSY, FRONT (LOWER) (S.M.BROWN)
-
53066A53066-7503-MB SEAT, ASSY, FRONT BACK (S.M.BROWN)SEAT, ASSY, FRONT BACK (S.M.BROWN)
-
53066B53066-7504-MB SEAT, ASSY, REAR (LOWER) (S.M.BROWN)SEAT, ASSY, REAR (LOWER) (S.M.BROWN)
-
53066C53066-7506-MB SEAT, ASSY, REAR BACK (S.M.BROWN)SEAT, ASSY, REAR BACK (S.M.BROWN)
-
9201592015-1190 NUT, LOCK, 12MM (BLACK)NUT, LOCK, 12MM (BLACK)
-
9204392043-7503 PINPIN
-
9214592145-7507 SPRINGSPRING
-
9215092150-1895 BOLT, FLANGED, 12X117BOLT, FLANGED, 12X117
-
9217192171-7509 CLAMPCLAMP
-
9221092210-0005 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
