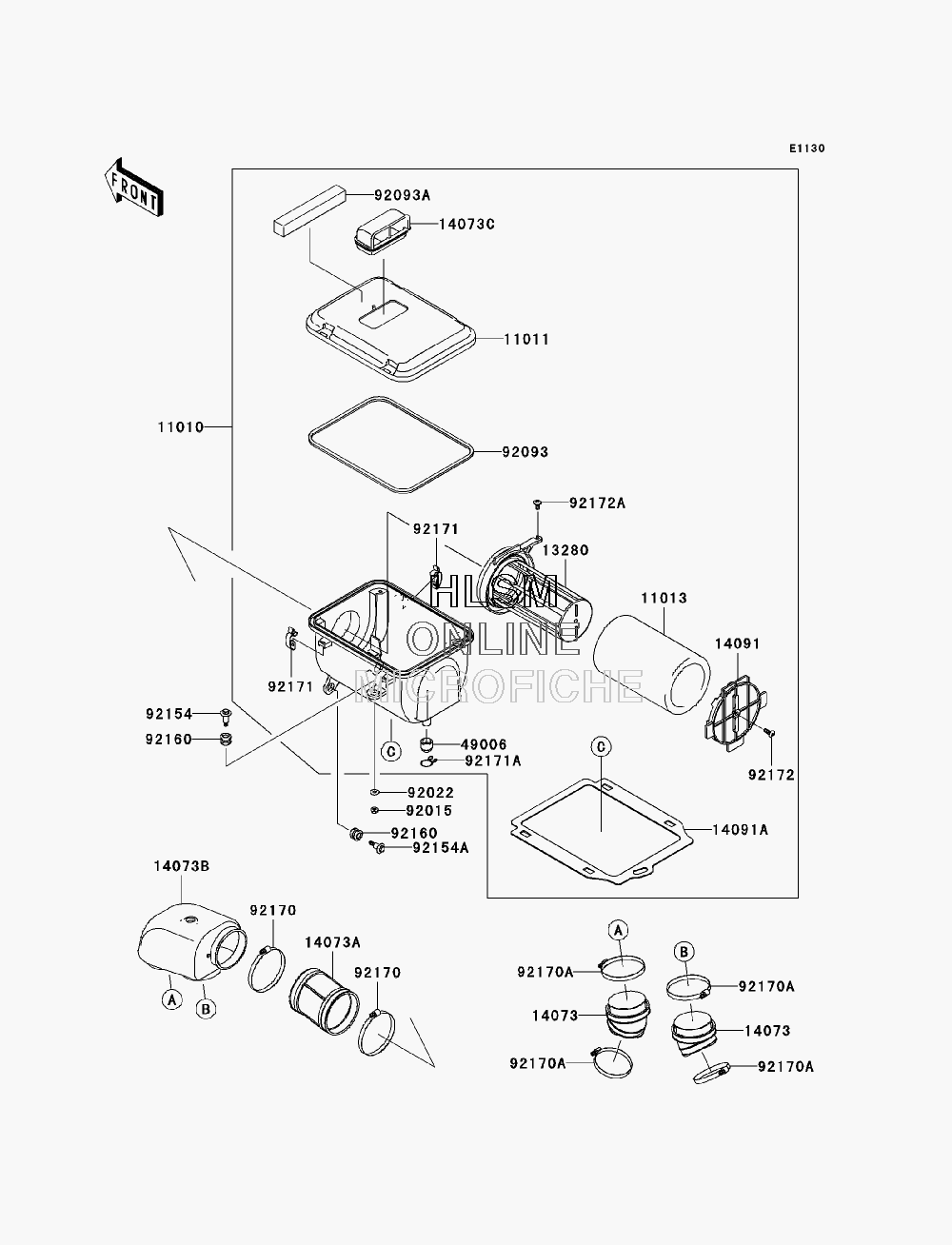

AIR CLEANER для Kawasaki TERYX 750 4X4 LE (KRF750C8F) - 2008 года выпуска
-
№АртикулНазвание
-
1101011010-0154 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101111011-0120 CASE-AIR FILTER, UPPCASE-AIR FILTER, UPP
-
1101311013-0018 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1328013280-0267 HOLDERHOLDER
-
1407314073-0030 DUCT, JOINTDUCT, JOINT
-
14073A14073-0140 DUCT, JOINT, A/CDUCT, JOINT, A/C
-
14073B14073-0141 DUCT, MIDDLEDUCT, MIDDLE
-
14073C14073-0199 DUCTDUCT
-
1409114091-0935 COVERCOVER
-
14091A14091-0989 COVERCOVER
-
4900649006-3718 BOOT, DRAINBOOT, DRAIN
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9209392093-0083 SEALSEAL
-
92093A92093-0126 SEALSEAL
-
9215492154-0028 BOLT, FLANGED, 6X28.7BOLT, FLANGED, 6X28.7
-
92154A92154-0029 BOLT, FLANGED, 6X27.5BOLT, FLANGED, 6X27.5
-
9216092160-1594 DAMPERDAMPER
-
9217092170-1676 CLAMPCLAMP
-
92170A92170-1763 CLAMPCLAMP
-
9217192171-0225 CLAMPCLAMP
-
92171A92171-3711 CLAMP, BOOTCLAMP, BOOT
-
9217292172-0130 SCREW, 6X18SCREW, 6X18
-
92172A92172-0131 SCREW, 6X14SCREW, 6X14
