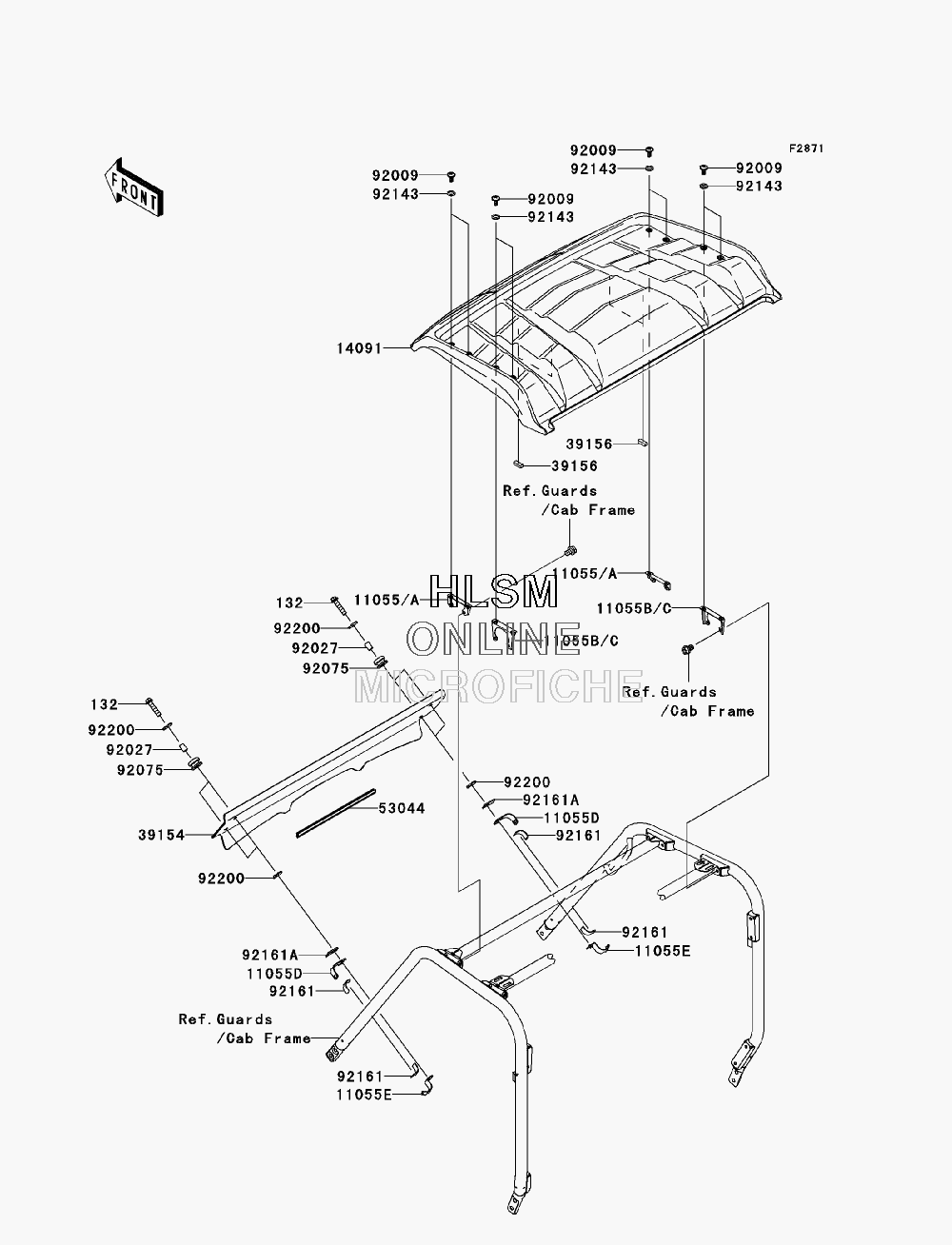

COWLING для Kawasaki TERYX 750 4X4 LE (KRF750C8F) - 2008 года выпуска
-
№АртикулНазвание
-
132132BB0635 BOLT-FLANGED-SMALL, 6X35BOLT-FLANGED-SMALL, 6X35
-
1105511055-0156-16I BRACKET, SUN TOP, RED (FOR 6B)BRACKET, SUN TOP, RED (FOR 6B)
-
11055A11055-0156-388 BRACKET, SUN TOP, W. BLACK (FOR 286)BRACKET, SUN TOP, W. BLACK (FOR 286)
-
11055B11055-0255-16I BRACKET, SUN TOP, RED (FOR 6B)BRACKET, SUN TOP, RED (FOR 6B)
-
11055C11055-0255-388 BRACKET, SUN TOP, W. BLACK (FOR 286)BRACKET, SUN TOP, W. BLACK (FOR 286)
-
11055D11055-0913 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
11055E11055-0914 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
1409114091-1614-6Z COVER, SUN TOP, F. BLACKCOVER, SUN TOP, F. BLACK
-
3915439154-0043 WINDSHIELDWINDSHIELD
-
3915639156-0479 PADPAD
-
5304453044-0044 TRIM, L=450TRIM, L=450
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9202792027-156 COLLAR, 6.8X10X14.5COLLAR, 6.8X10X14.5
-
9207592075-1787 DAMPERDAMPER
-
9214392143-1087 COLLARCOLLAR
-
9216192161-0644 DAMPERDAMPER
-
92161A92161-0681 DAMPERDAMPER
-
9220092200-1087 WASHER, 6.5X22X1.6WASHER, 6.5X22X1.6
