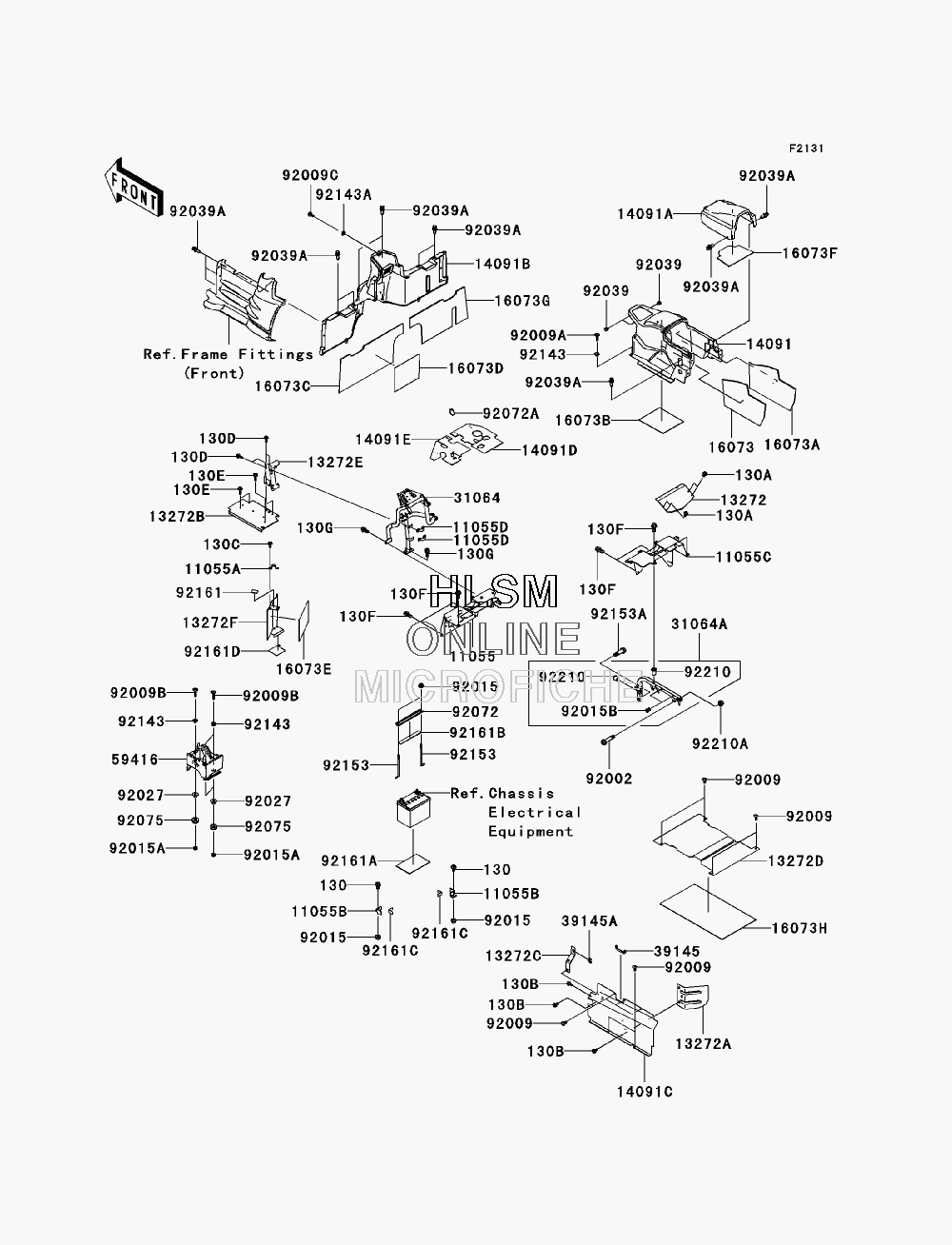

FRAME FITTINGS (REAR) для Kawasaki TERYX 750 4X4 LE (KRF750C8F) - 2008 года выпуска
-
№АртикулНазвание
-
1105511055-0384 BRACKETBRACKET
-
11055A11055-0419 BRACKETBRACKET
-
11055B11055-0433 BRACKETBRACKET
-
11055C11055-0518 BRACKET, SEAT LOCK PLATEBRACKET, SEAT LOCK PLATE
-
11055D11055-0896 BRACKETBRACKET
-
1327213272-0276 PLATEPLATE
-
13272A13272-0318 PLATEPLATE
-
13272B13272-0336 PLATE, TUNNEL PLATEPLATE, TUNNEL PLATE
-
13272C13272-0351 PLATEPLATE
-
13272D13272-0390 PLATE, FRONT FENDERPLATE, FRONT FENDER
-
13272E13272-0434 PLATEPLATE
-
13272F13272-0448 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
1409114091-0692-6Z COVER, CONSOLE CENTER, F. BLACKCOVER, CONSOLE CENTER, F. BLACK
-
14091A14091-0975 COVER, CONSOLE CENTERCOVER, CONSOLE CENTER
-
14091B14091-0982-6Z COVER, SEAT, F. BLACKCOVER, SEAT, F. BLACK
-
14091C14091-0987 COVERCOVER
-
14091D14091-1643 COVERCOVER
-
14091E14091-1644 COVERCOVER
-
1607316073-0042 INSULATORINSULATOR
-
16073A16073-0043 INSULATORINSULATOR
-
16073B16073-0044 INSULATORINSULATOR
-
16073C16073-0050 INSULATORINSULATOR
-
16073D16073-0060 INSULATORINSULATOR
-
16073E16073-0062 INSULATORINSULATOR
-
16073F16073-0066 INSULATORINSULATOR
-
16073G16073-0070 INSULATORINSULATOR
-
16073H16073-0075 INSULATORINSULATOR
-
3106431064-0136 PIPE-COMPPIPE-COMP
-
31064A31064-0145 PIPE-COMPPIPE-COMP
-
3914539145-0034 TRIM-SEAL, L=110TRIM-SEAL, L=110
-
39145A39145-0035 TRIM-SEAL, L=53TRIM-SEAL, L=53
-
5941659416-0017 CASE-ELECTRICCASE-ELECTRIC
-
9200292002-1740 BOLT, FLANGED, 10X46BOLT, FLANGED, 10X46
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22, BLACKSCREW, 6X22, BLACK
