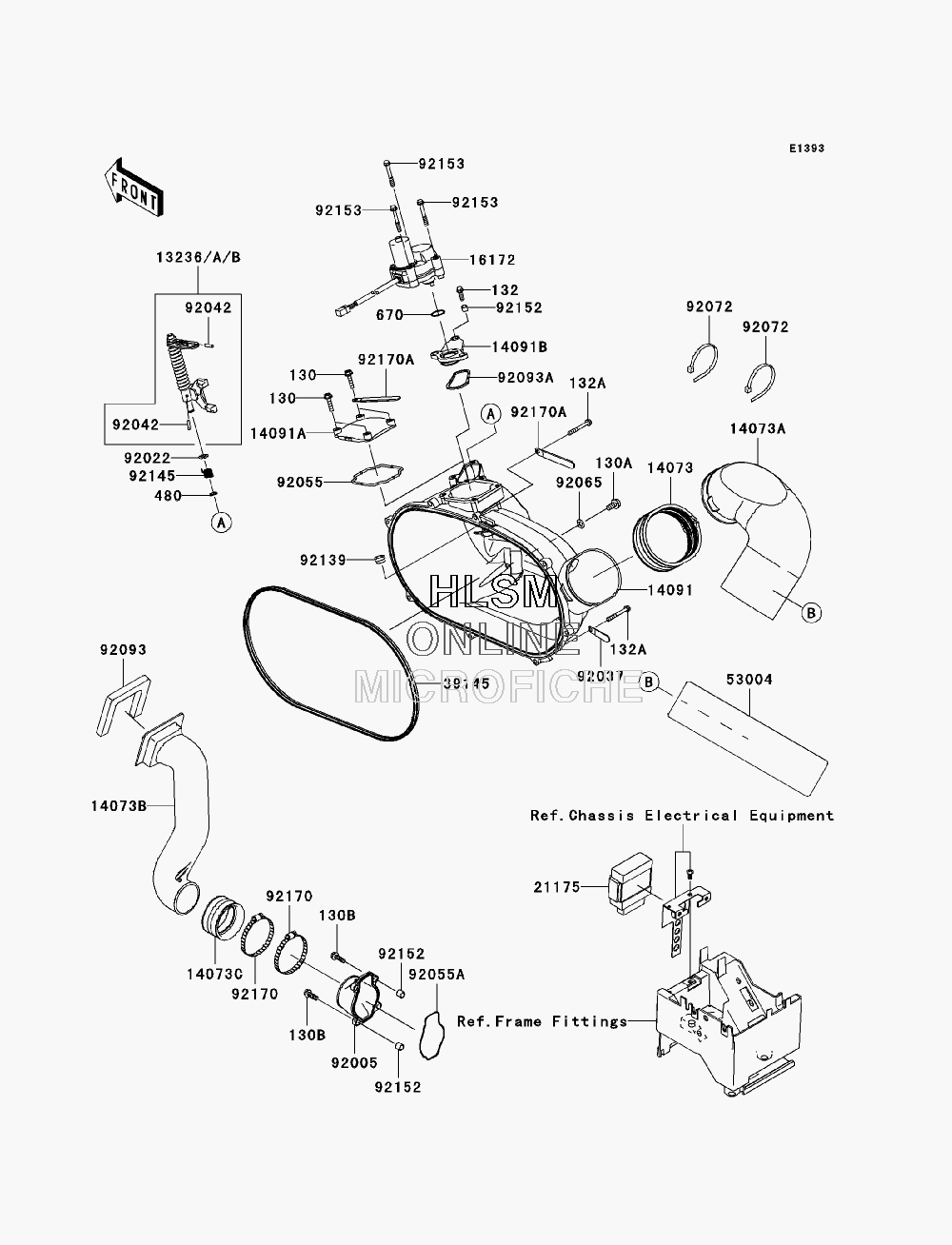

CONVERTER COVER для Kawasaki TERYX 750 4X4 LE (KRF750C8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130BA0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
130A130BA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130B130CD0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
132132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132A132BA0645 BOLT-FLANGED-SMALL, 6X45BOLT-FLANGED-SMALL, 6X45
-
480480J1000 CIRCLIP-TYPE-C, 10MMCIRCLIP-TYPE-C, 10MM
-
670670D3022 O RINGO RING
-
1323613236-0123 LEVER-COMP, YELLOWLEVER-COMP, YELLOW
-
13236A13236-0124 LEVER-COMP, GREENLEVER-COMP, GREEN
-
13236B13236-0125 LEVER-COMP, PAINT LESSLEVER-COMP, PAINT LESS
-
1407314073-0136 DUCT, EXHAUST JOINTDUCT, EXHAUST JOINT
-
14073A14073-0201 DUCT, EXHAUSTDUCT, EXHAUST
-
14073B14073-0213 DUCT, INTAKEDUCT, INTAKE
-
14073C14073-1775 DUCT, JOINTDUCT, JOINT
-
1409114091-0671 COVER, CVTCOVER, CVT
-
14091A14091-0672 COVER, ACCESSCOVER, ACCESS
-
14091B14091-0673 COVER, MOUNTING EYE, ACTRCOVER, MOUNTING EYE, ACTR
-
1617216172-0017 ACTUATORACTUATOR
-
2117521175-0151 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
3914539145-0037 TRIM-SEALTRIM-SEAL
-
5300453004-0027 MATMAT
-
9200592005-1387 FITTINGFITTING
-
9202292022-1829 WASHER, 10.2X16X1WASHER, 10.2X16X1
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9204292042-014 PIN, DOWEL, 4X15.8PIN, DOWEL, 4X15.8
-
9205592055-0120 RING-ORING-O
-
92055A92055-1630 RING-ORING-O
-
9206592065-023 GASKETGASKET
-
9207292072-0073 BAND, L=460BAND, L=460
-
9209392093-0140 SEAL, INTAKE DUCTSEAL, INTAKE DUCT
-
92093A92093-1548 SEALSEAL
-
9213992139-0214 BUSHING, 10X14X11BUSHING, 10X14X11
-
9214592145-0443 SPRING, RETURNSPRING, RETURN
-
9215292152-1332 COLLARCOLLAR
-
9215392153-0678 BOLT, 6X47BOLT, 6X47
-
9217092170-1764 CLAMPCLAMP
-
92170A92170-1925 CLAMPCLAMP
