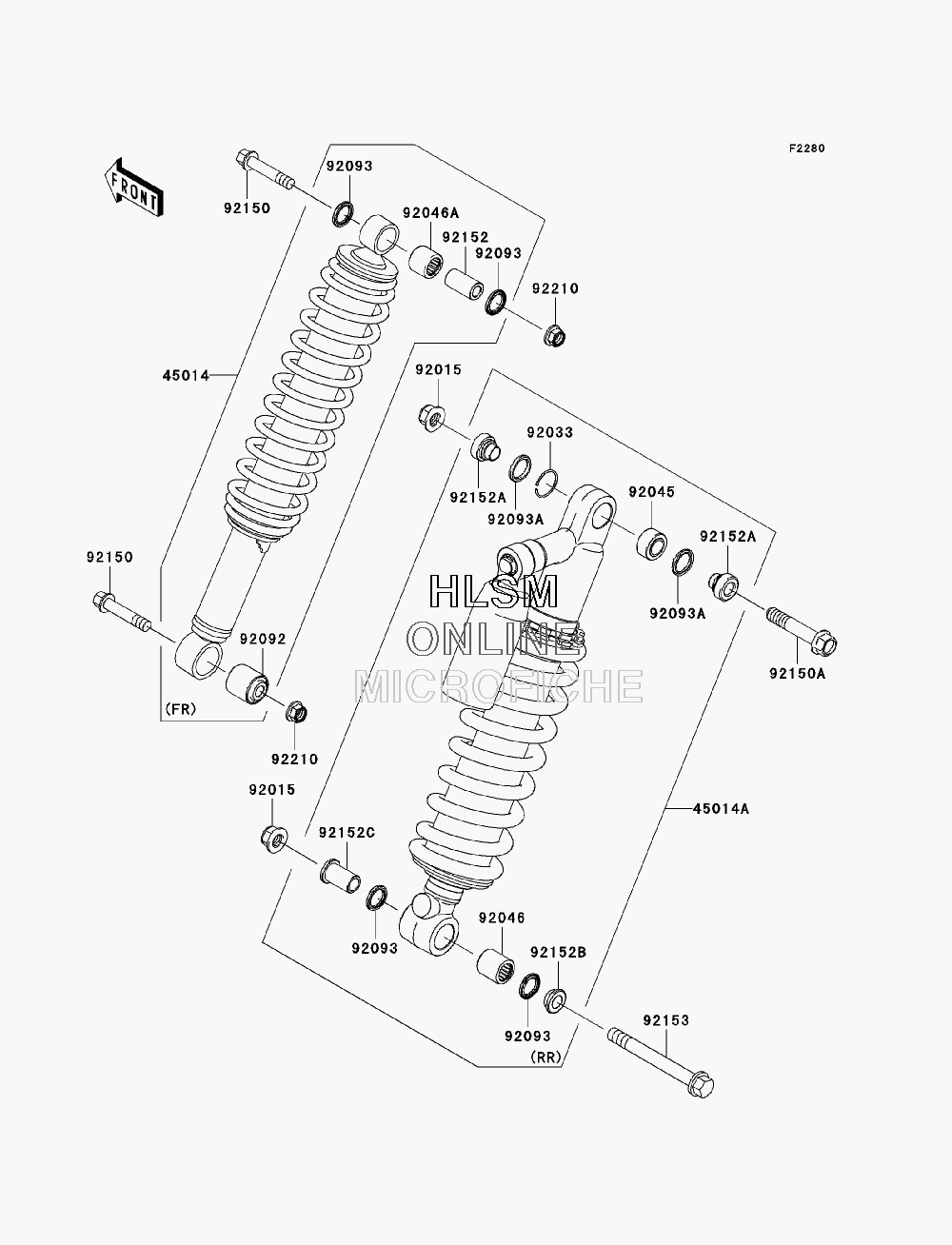

SUSPENSION - SHOCK ABSORBER(S) для Kawasaki TERYX 750 4X4 LE (KRF750C8F) - 2008 года выпуска
-
№АртикулНазвание
-
4501445014-0232-VM SHOCK ABSORBER, FRONT, S.REDSHOCK ABSORBER, FRONT, S.RED
-
45014A45014-0233-VM SHOCK ABSORBER, REAR, S.REDSHOCK ABSORBER, REAR, S.RED
-
9201592015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9203392033-0054 RING-SNAPRING-SNAP
-
9204592045-0120 BEARING-BALLBEARING-BALL
-
9204692046-0031 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-0032 BEARING-NEEDLEBEARING-NEEDLE
-
9209292092-0014 BUSHING-RUBBERBUSHING-RUBBER
-
9209392093-0124 SEALSEAL
-
92093A92093-0125 SEALSEAL
-
9215092150-1125 BOLT, FLANGED, 10X50BOLT, FLANGED, 10X50
-
92150A92150-1258 BOLT, FLANGED, 12X63BOLT, FLANGED, 12X63
-
9215292152-0635 COLLARCOLLAR
-
92152A92152-0637 COLLARCOLLAR
-
92152B92152-0681 COLLARCOLLAR
-
92152C92152-0682 COLLARCOLLAR
-
9215392153-1741 BOLT, FRANGED, 12X108BOLT, FRANGED, 12X108
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
