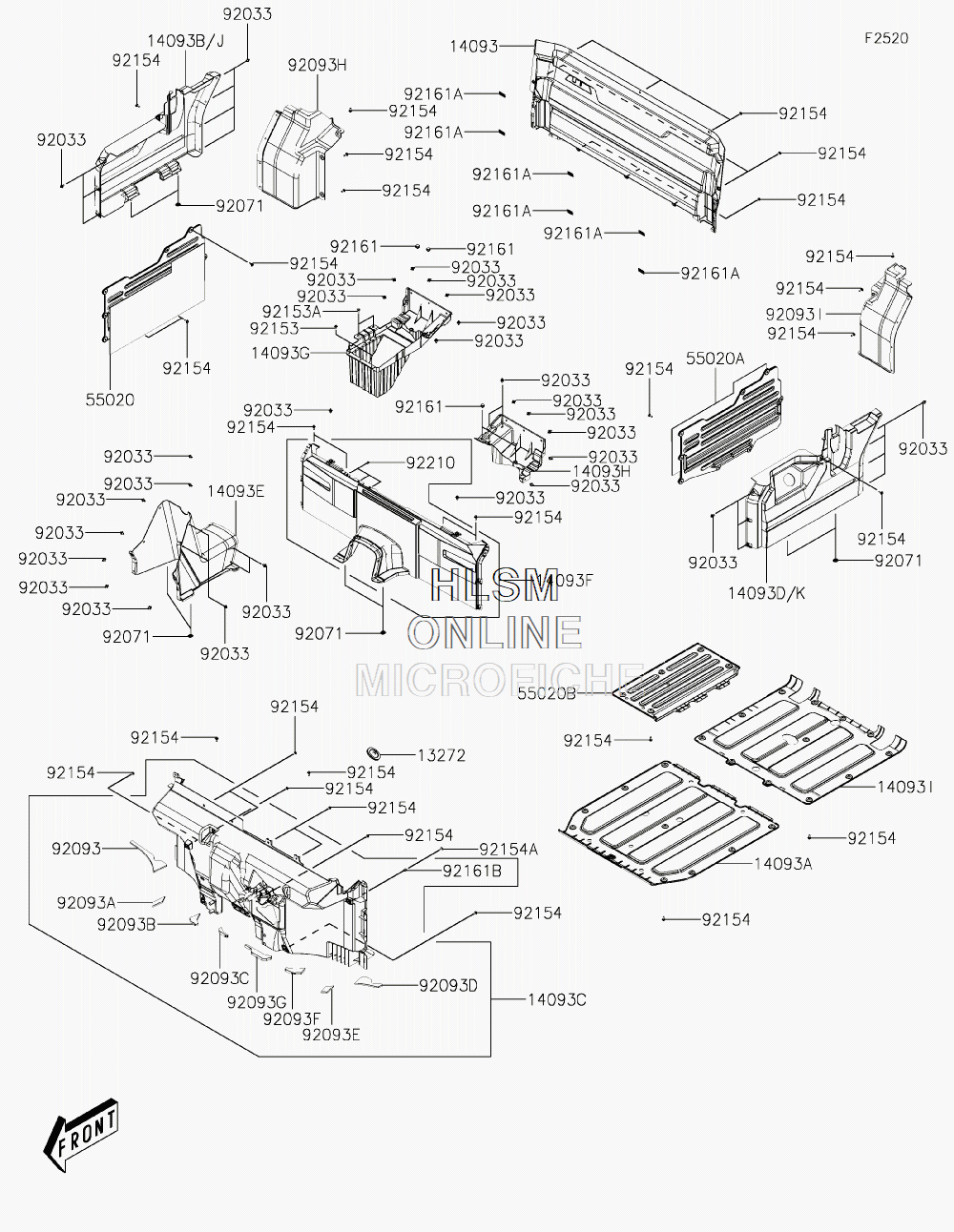

CARRIER(S) для Kawasaki MULE PRO-MX EPS LE (KAF700CKF) - 2019 года выпуска
-
№АртикулНазвание
-
1327213272-Y032 PLATE, FRONT TIRE HOUSEPLATE, FRONT TIRE HOUSE
-
1409314093-Y010-933 COVER, BACK, (S.BLACK)COVER, BACK, (S.BLACK)
-
14093A14093-Y018-933 COVER, UNDER, FRONT, (S.BLACK)COVER, UNDER, FRONT, (S.BLACK)
-
14093B14093-Y022-933 COVER, SIDE, RIGHT HAND, (S.BLACK) (USA ONLY)COVER, SIDE, RIGHT HAND, (S.BLACK) (USA ONLY)
-
14093C14093-Y023-933 COVER, FRONT FLOOR, (S.BLACK)COVER, FRONT FLOOR, (S.BLACK)
-
14093D14093-Y024-933 COVER, SIDE, LEFT HAND, (S.BLACK) (USA ONLY)COVER, SIDE, LEFT HAND, (S.BLACK) (USA ONLY)
-
14093E14093-Y025-933 COVER, TUNNEL, (S.BLACK)COVER, TUNNEL, (S.BLACK)
-
14093F14093-Y026-933 COVER, CENTER, (S.BLACK)COVER, CENTER, (S.BLACK)
-
14093G14093-Y027 COVER, HEAT GUARD, RIGHT HANDCOVER, HEAT GUARD, RIGHT HAND
-
14093H14093-Y029 COVER, HEAT GUARD, LEFT HANDCOVER, HEAT GUARD, LEFT HAND
-
14093I14093-Y030-933 COVER, UNDER, REAR, (S.BLACK)COVER, UNDER, REAR, (S.BLACK)
-
14093J14093-Y038-933 COVER, SIDE, RIGHT HAND, (S.BLACK) (CANADA ONLY)COVER, SIDE, RIGHT HAND, (S.BLACK) (CANADA ONLY)
-
14093K14093-Y039-933 COVER, SIDE, LEFT HAND, (S.BLACK) (CANADA ONLY)COVER, SIDE, LEFT HAND, (S.BLACK) (CANADA ONLY)
-
5502055020-Y013 GUARD, HEAT, RIGHT HANDGUARD, HEAT, RIGHT HAND
-
55020A55020-Y014 GUARD, HEAT, LEFT HANDGUARD, HEAT, LEFT HAND
-
55020B55020-Y017-933 GUARD, BOOT, (S.BLACK)GUARD, BOOT, (S.BLACK)
-
9203392033-Y033 RING-SNAPRING-SNAP
-
9207192071-Y006 GROMMETGROMMET
-
9209392093-Y035 SEALSEAL
-
92093A92093-Y036 SEALSEAL
-
92093B92093-Y037 SEALSEAL
-
92093C92093-Y038 SEALSEAL
-
92093D92093-Y039 SEALSEAL
-
92093E92093-Y040 SEALSEAL
-
92093F92093-Y041 SEALSEAL
-
92093G92093-Y042 SEALSEAL
-
92093H92093-Y043 SEALSEAL
-
92093I92093-Y044 SEALSEAL
-
9215392153-Y013 BOLT, 5X16BOLT, 5X16
-
92153A92153-Y032 BOLT, FLANGE, 8X16BOLT, FLANGE, 8X16
-
9215492154-Y177 BOLT, 6X18BOLT, 6X18
-
92154A92154-Y186 BOLT, 5X22BOLT, 5X22
-
9216192161-Y014 DAMPERDAMPER
-
92161A92161-Y045 DAMPERDAMPER
-
92161B92161-Y054 DAMPERDAMPER
-
9221092210-Y016 NUT, 5MMNUT, 5MM
