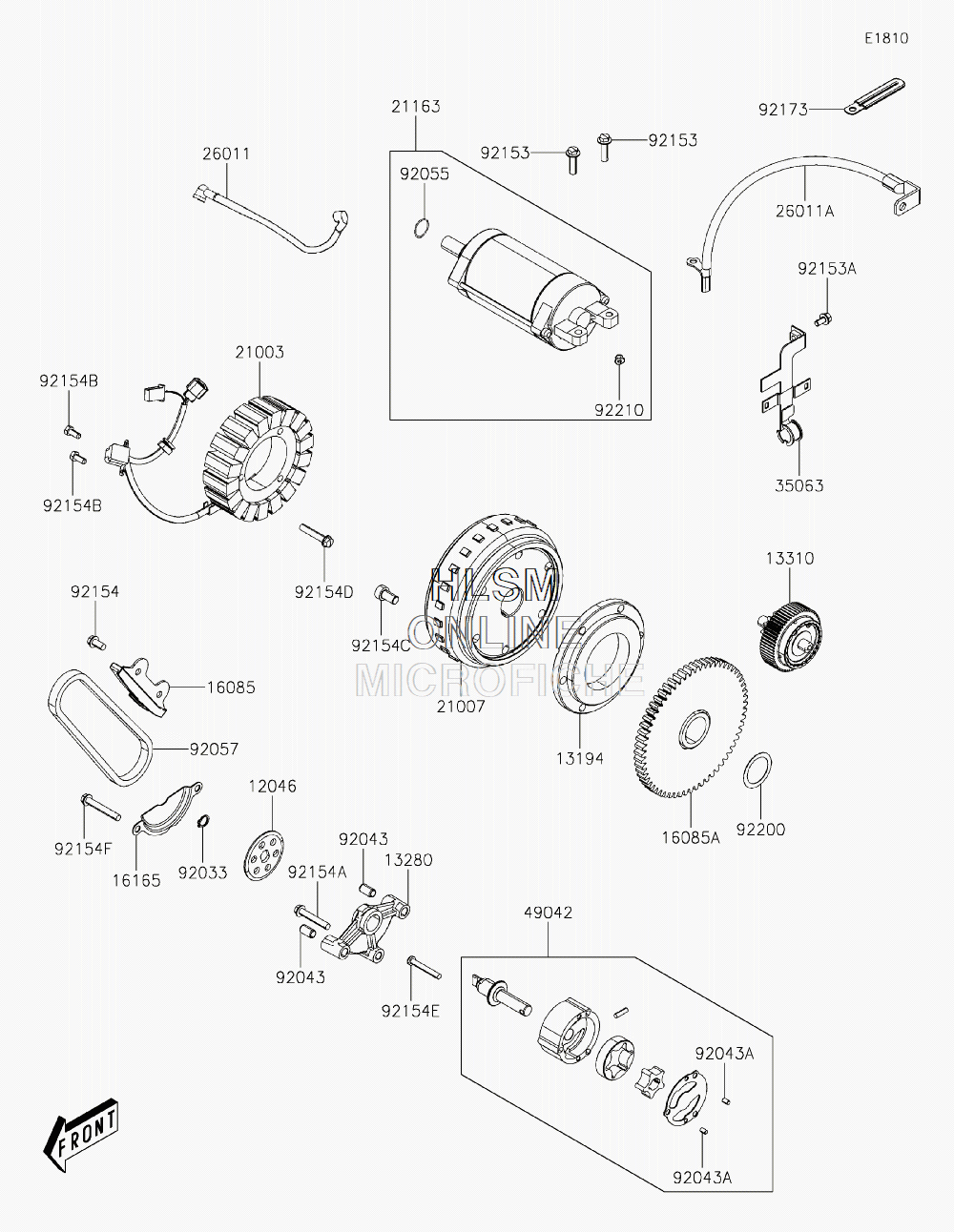

GENERATOR для Kawasaki MULE PRO-MX EPS LE (KAF700CKF) - 2019 года выпуска
-
№АртикулНазвание
-
1204612046-Y006 SPROCKET, OIL PUMP DRIVESPROCKET, OIL PUMP DRIVE
-
1319413194-Y001 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1328013280-Y018 HOLDER, OIL PUMP SHAFTHOLDER, OIL PUMP SHAFT
-
1331013310-Y002 SHAFT-ASSY, REDUCTIONSHAFT-ASSY, REDUCTION
-
1608516085-Y017 GEAR, START REDUCTIONGEAR, START REDUCTION
-
16085A16085-Y018 GEAR, STARTING CLUTCHGEAR, STARTING CLUTCH
-
1616516165-Y007 SEPARATOR, OILSEPARATOR, OIL
-
2100321003-Y010 STATORSTATOR
-
2100721007-Y010 ROTORROTOR
-
2116321163-Y006 STARTER-ELECTRICSTARTER-ELECTRIC
-
2601126011-Y010 WIRE-LEAD, STARTER MOTORWIRE-LEAD, STARTER MOTOR
-
26011A26011-Y013 WIRE-LEAD, EARTHWIRE-LEAD, EARTH
-
3506335063-Y036 STAYSTAY
-
4904249042-Y006 PUMP-OIL, ASSYPUMP-OIL, ASSY
-
9203392033-Y019 RING-SNAP, 10MMRING-SNAP, 10MM
-
9204392043-Y012 PIN, 8X14PIN, 8X14
-
92043A92043-Y015 PIN, DOWEL, 4X65PIN, DOWEL, 4X65
-
9205592055-Y025 RING-O, 24.4X3.1RING-O, 24.4X3.1
-
9205792057-Y013 CHAIN, OIL PUMPCHAIN, OIL PUMP
-
9215392153-Y003 BOLT, FLANGE, 6X22BOLT, FLANGE, 6X22
-
92153A92153-Y058 BOLT, 5X10BOLT, 5X10
-
9215492154-Y035 BOLT, FLANGE, 6X12BOLT, FLANGE, 6X12
-
92154A92154-Y069 BOLT, FLANGE, 6X35BOLT, FLANGE, 6X35
-
92154B92154-Y111 BOLT, HEX, 5X12BOLT, HEX, 5X12
-
92154C92154-Y123 BOLT, 8X15BOLT, 8X15
-
92154D92154-Y128 BOLT, FLANGE, 6X32BOLT, FLANGE, 6X32
-
92154E92154-Y185 BOLT, 5X35BOLT, 5X35
-
92154F92154-Y209 BOLT, FLANGE, 6X40BOLT, FLANGE, 6X40
-
9217392173-Y004 CLAMPCLAMP
-
9220092200-Y097 WASHER, 27.2X36X0.5WASHER, 27.2X36X0.5
-
9221092210-Y039 NUT, 6MMNUT, 6MM
