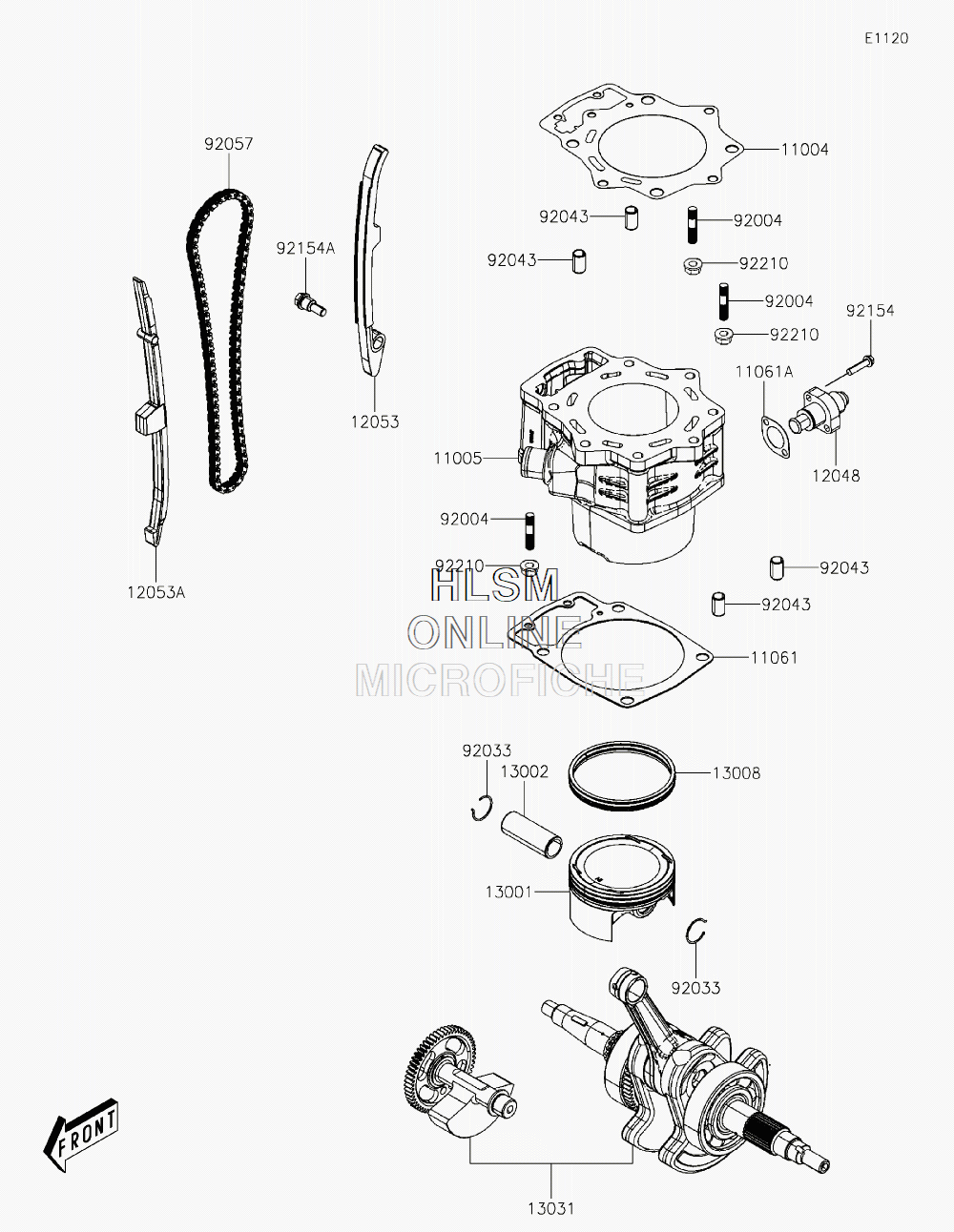

CYLINDER W/ PISTON(S) для Kawasaki MULE PRO-MX EPS LE (KAF700CKF) - 2019 года выпуска
-
№АртикулНазвание
-
1100411004-Y006 GASKET-HEADGASKET-HEAD
-
1100511005-Y006 CYLINDER-ENGINECYLINDER-ENGINE
-
1106111061-Y062 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
11061A11061-Y063 GASKET, TENSIONERGASKET, TENSIONER
-
1204812048-Y007 TENSIONER-ASSYTENSIONER-ASSY
-
1205312053-Y011 GUIDE-CHAIN, TENSIONERGUIDE-CHAIN, TENSIONER
-
12053A12053-Y012 GUIDE-CHAIN, CAM CHAINGUIDE-CHAIN, CAM CHAIN
-
1300113001-Y006 PISTON-ENGINEPISTON-ENGINE
-
1300213002-Y006 PIN-PISTONPIN-PISTON
-
1300813008-Y006 RING-SET-PISTONRING-SET-PISTON
-
1303113031-Y006 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
9200492004-Y019 STUD, 8X40STUD, 8X40
-
9203392033-Y044 RING-SNAPRING-SNAP
-
9204392043-Y027 PIN, 12X20PIN, 12X20
-
9205792057-Y011 CHAIN, CAMCHAIN, CAM
-
9215492154-Y066 BOLT, FLANGE, 6X25BOLT, FLANGE, 6X25
-
92154A92154-Y164 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
9221092210-Y028 NUT, 8MMNUT, 8MM
