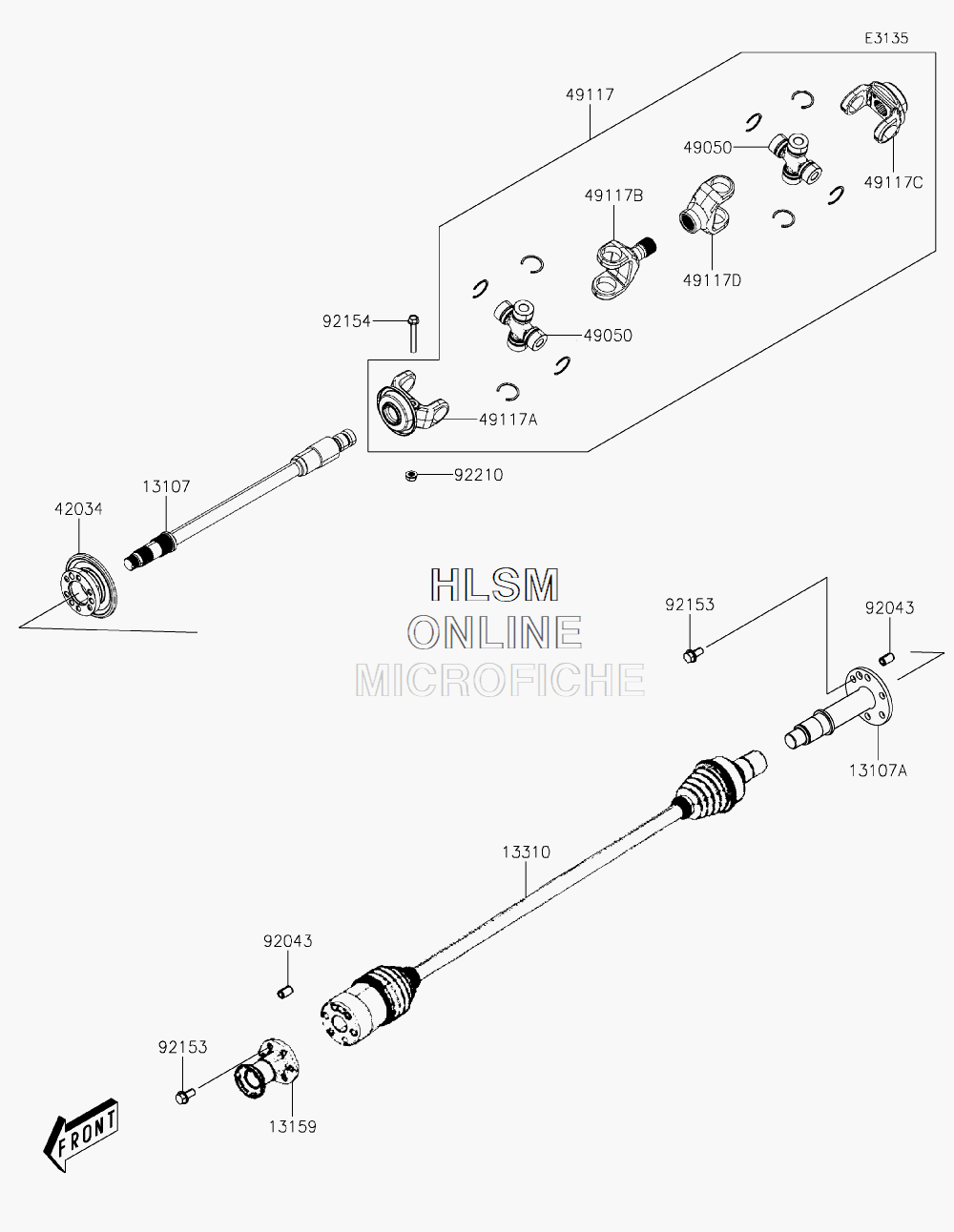

DRIVE SHAFT (PROPELLER) для Kawasaki MULE PRO-MX EPS LE (KAF700CKF) - 2019 года выпуска
-
№АртикулНазвание
-
1310713107-Y027 SHAFT, FINALSHAFT, FINAL
-
13107A13107-Y030 SHAFTSHAFT
-
1315913159-Y002 CONNECTOR, FRONT PROPELLER SHAFTCONNECTOR, FRONT PROPELLER SHAFT
-
1331013310-Y003 SHAFT-ASSY, PROPELLERSHAFT-ASSY, PROPELLER
-
4203442034-Y003 COUPLINGCOUPLING
-
4905049050-Y001 SPIDERSPIDER
-
4911749117-Y001 YOKE, DRIVE FRONT ASSYYOKE, DRIVE FRONT ASSY
-
49117A49117-Y002 YOKEYOKE
-
49117B49117-Y003 YOKEYOKE
-
49117C49117-Y004 YOKEYOKE
-
49117D49117-Y005 YOKEYOKE
-
9204392043-Y046 PIN, 10X16PIN, 10X16
-
9215392153-Y032 BOLT, FLANGE, 8X16BOLT, FLANGE, 8X16
-
9215492154-Y168 BOLT, SPECIAL, 8X52BOLT, SPECIAL, 8X52
-
9221092210-Y076 NUT, 8MMNUT, 8MM
