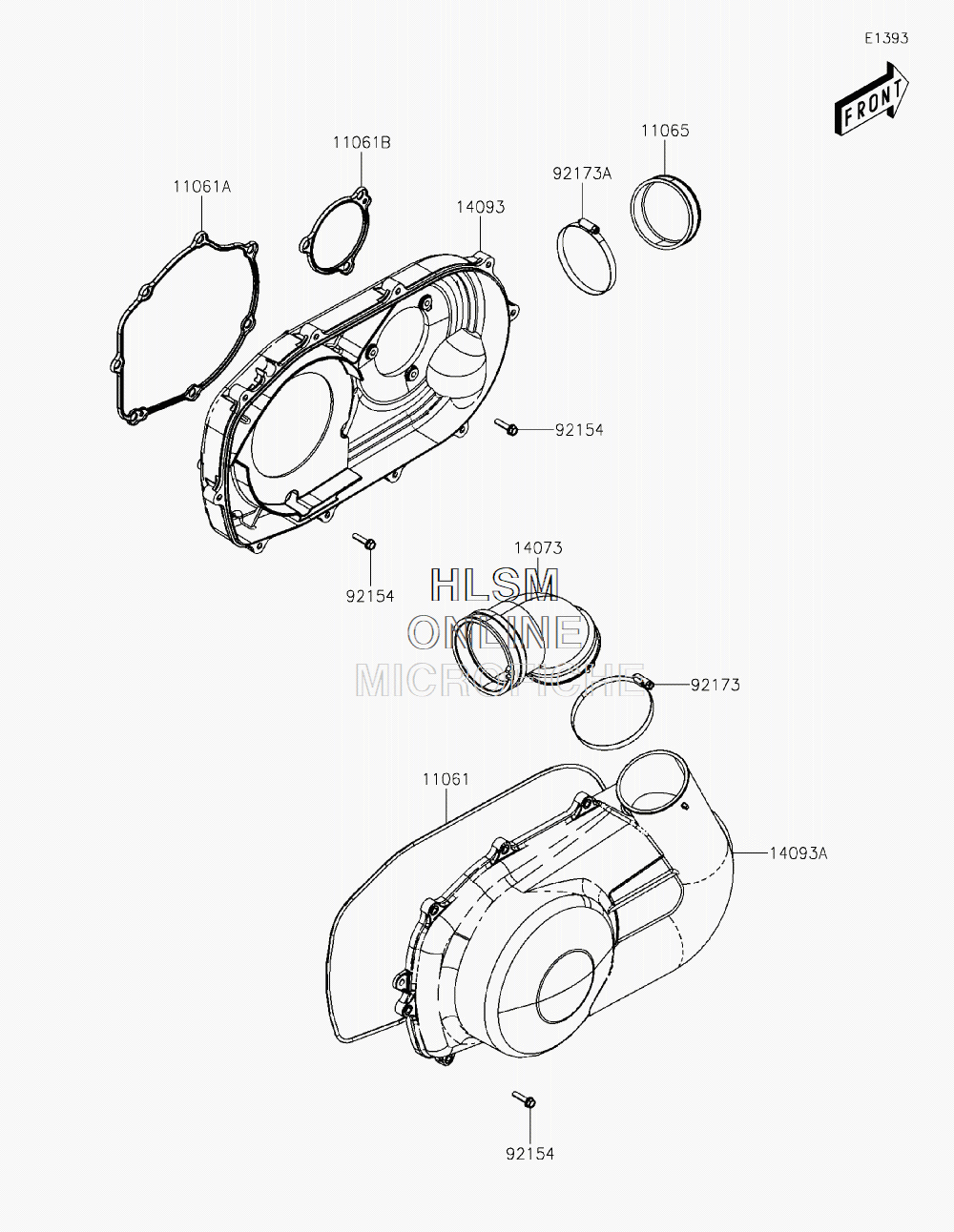

CONVERTER COVER для Kawasaki MULE PRO-MX EPS LE (KAF700CKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106111061-Y056 GASKET, CRANK CASE COVER, RIGHT HANDGASKET, CRANK CASE COVER, RIGHT HAND
-
11061A11061-Y057 GASKET, CVT CASE, REARGASKET, CVT CASE, REAR
-
11061B11061-Y058 GASKET, CVT CASE, FRONTGASKET, CVT CASE, FRONT
-
1106511065-Y034 CAP, CVT CASECAP, CVT CASE
-
1407314073-Y010 DUCT, CRANK CASE COVERDUCT, CRANK CASE COVER
-
1409314093-Y001 COVER, RIGHT HANDCOVER, RIGHT HAND
-
14093A14093-Y003 COVER, CRANK CASE, RIGHT HANDCOVER, CRANK CASE, RIGHT HAND
-
9215492154-Y130 BOLT, FLANGE, 6X25BOLT, FLANGE, 6X25
-
9217392173-Y064 CLAMPCLAMP
-
92173A92173-Y066 CLAMPCLAMP
