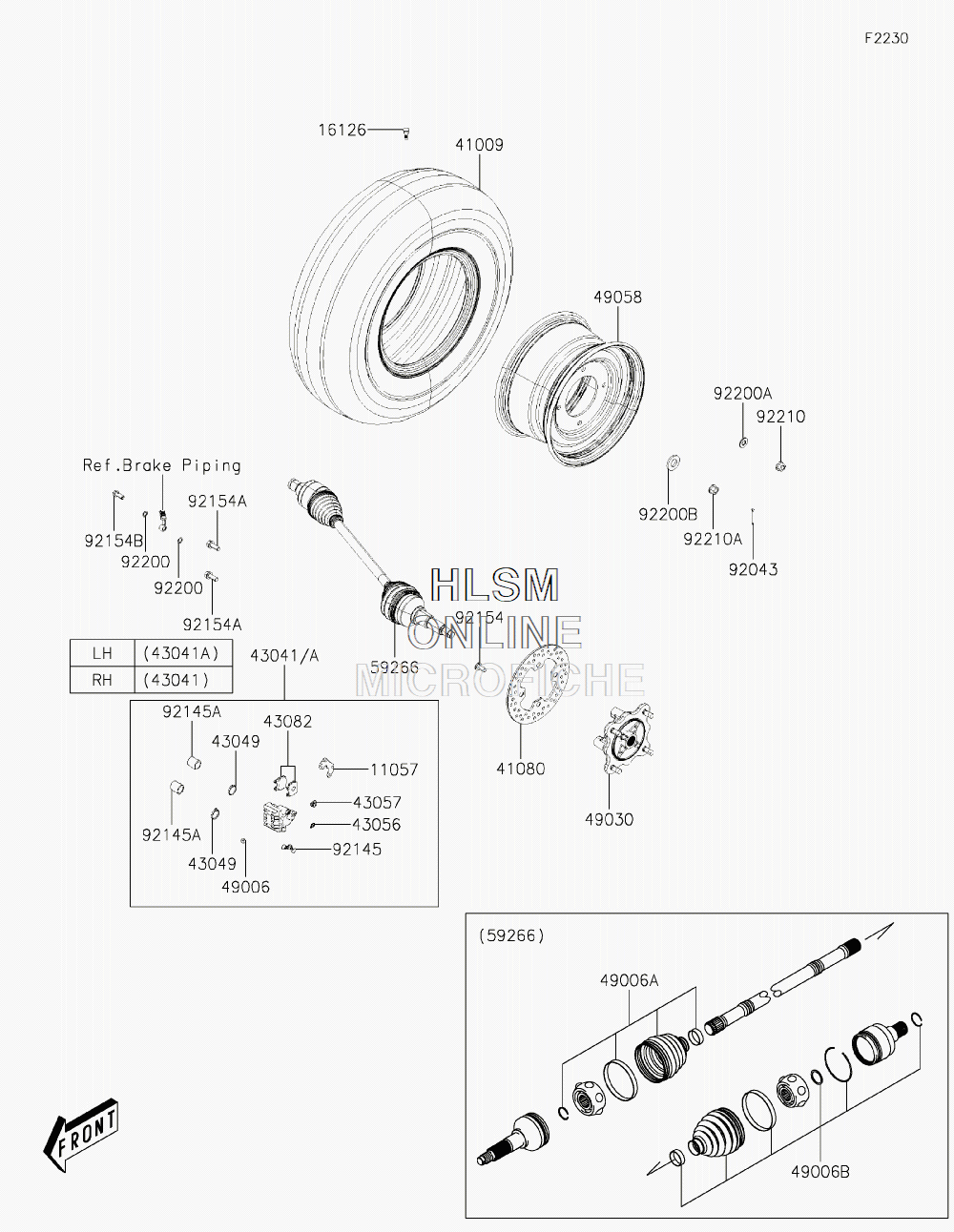

BRAKE - FRONT W/ HUB для Kawasaki MULE PRO-MX (KAF700AKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-Y007 BRACKETBRACKET
-
1612616126-Y001 VALVE, RIMVALVE, RIM
-
4100941009-Y008 TIRE, FRONTTIRE, FRONT
-
4108041080-Y009 DISC, BRAKEDISC, BRAKE
-
4304143041-Y011-934 CALIPER-ASSY, FRONT, RIGHT HAND, (SILVER)CALIPER-ASSY, FRONT, RIGHT HAND, (SILVER)
-
43041A43041-Y012-934 CALIPER-ASSY, FRONT, LEFT HAND, (SILVER)CALIPER-ASSY, FRONT, LEFT HAND, (SILVER)
-
4304943049-0556 PACKINGPACKING
-
4305643056-0055 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-0552 CAP-BREATHERCAP-BREATHER
-
4308243082-Y010 PAD-ASSY-BRAKE, FRONTPAD-ASSY-BRAKE, FRONT
-
4900649006-0565 BOOTBOOT
-
49006A49006-Y013 BOOT, FRONT, OUTSIDEBOOT, FRONT, OUTSIDE
-
49006B49006-Y014 BOOT, FRONT, INSIDEBOOT, FRONT, INSIDE
-
4903049030-Y003 HUB, FRONTHUB, FRONT
-
4905849058-Y002-935 WHEEL, FRONT, (BLACK)WHEEL, FRONT, (BLACK)
-
5926659266-Y004 JOINT-BALL, FRONTJOINT-BALL, FRONT
-
9204392043-Y043 PIN, 4X40PIN, 4X40
-
9214592145-0705 SPRINGSPRING
-
92145A92145-Y045 SPRING, STOPPERSPRING, STOPPER
-
9215492154-Y178 BOLT, 10X23BOLT, 10X23
-
92154A92154-Y183 BOLTBOLT
-
92154B92154-Y184 BOLT, OILBOLT, OIL
-
9220092200-Y015 WASHERWASHER
-
92200A92200-Y089 WASHER, 12MMWASHER, 12MM
-
92200B92200-Y090 WASHER, 40X20.5X4.5WASHER, 40X20.5X4.5
-
9221092210-Y088 NUTNUT
-
92210A92210-Y099 NUT, FLANGE, 20MMNUT, FLANGE, 20MM
