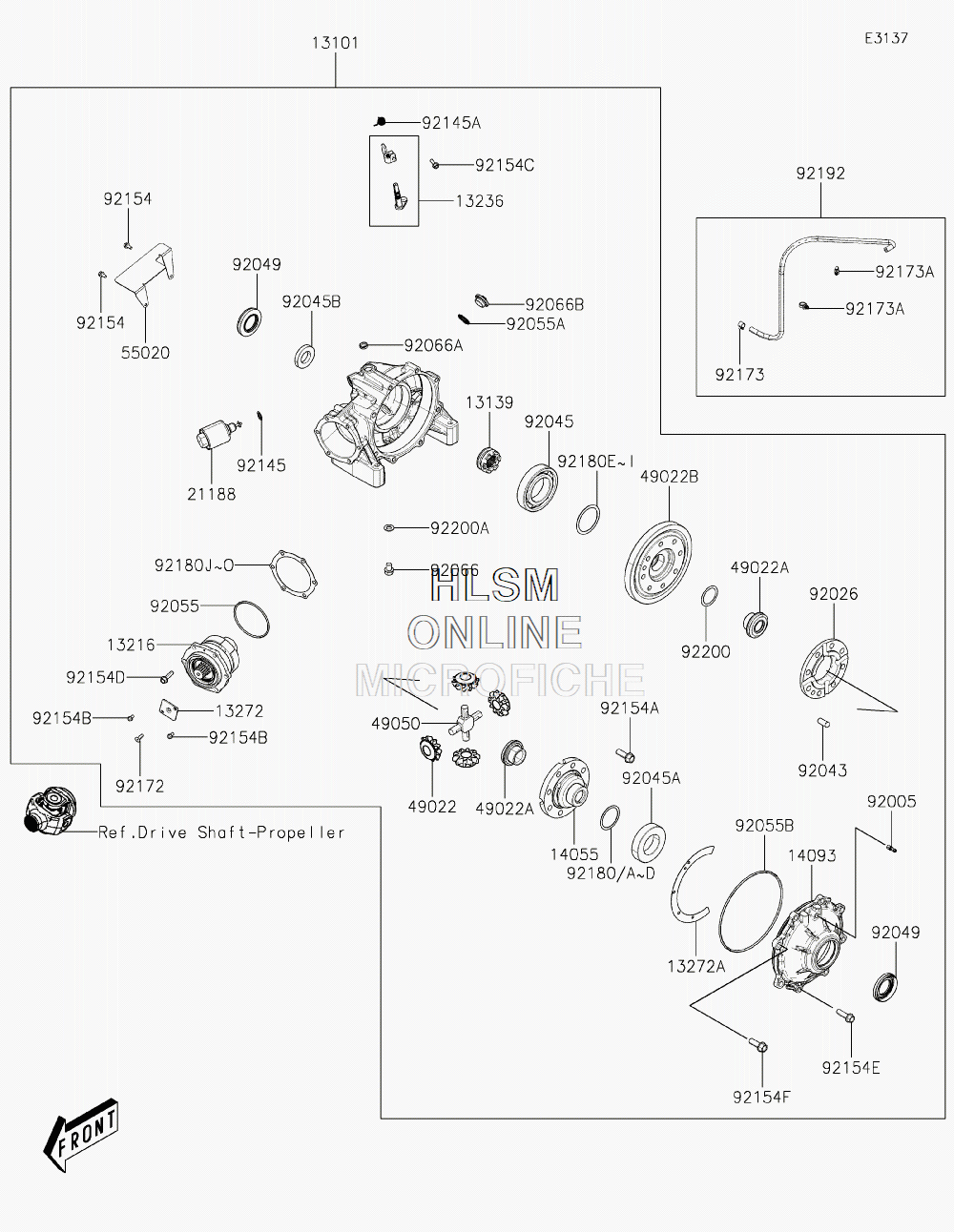

DRIVE SHAFT (REAR) для Kawasaki MULE PRO-MX (KAF700AKF) - 2019 года выпуска
-
№АртикулНазвание
-
1310113101-Y003 GEAR-ASSY, REARGEAR-ASSY, REAR
-
1313913139-Y005 SHIFTERSHIFTER
-
1321613216-Y008 GEAR-COMPGEAR-COMP
-
1323613236-Y001 LEVER-COMPLEVER-COMP
-
1327213272-Y037 PLATEPLATE
-
13272A13272-Y038 PLATEPLATE
-
1405514055-Y005 CASE-GEARCASE-GEAR
-
1409314093-Y049 COVERCOVER
-
2118821188-Y001 SOLENOIDSOLENOID
-
4902249022-0572 GEAR-BEVEL, 10TGEAR-BEVEL, 10T
-
49022A49022-0622 GEAR-BEVEL, 16TGEAR-BEVEL, 16T
-
49022B49022-0628 GEAR-BEVEL, 35TGEAR-BEVEL, 35T
-
4905049050-Y002 SPIDERSPIDER
-
5502055020-Y009 GUARD, DIFFGUARD, DIFF
-
9200592005-Y001 FITTINGFITTING
-
9202692026-Y012 SPACERSPACER
-
9204392043-Y048 PINPIN
-
9204592045-0766 BEARING-BALL, 6212BEARING-BALL, 6212
-
92045A92045-1213 BEARING-BALL, 6210CMBEARING-BALL, 6210CM
-
92045B92045-1230 BEARING-BALL, 16007BEARING-BALL, 16007
-
9204992049-0806 SEAL-OIL, 40X68X13.5SEAL-OIL, 40X68X13.5
-
9205592055-Y067 RING-ORING-O
-
92055A92055-Y068 RING-ORING-O
-
92055B92055-Y069 RING-ORING-O
-
9206692066-Y003 PLUG, DRAINPLUG, DRAIN
-
92066A92066-Y020 PLUGPLUG
-
92066B92066-Y021 PLUGPLUG
-
9214592145-Y069 SPRINGSPRING
-
92145A92145-Y070 SPRINGSPRING
-
9215492154-Y153 BOLT, FLANGE, 6X14BOLT, FLANGE, 6X14
-
92154A92154-Y214 BOLTBOLT
-
92154B92154-Y215 BOLTBOLT
-
92154C92154-Y216 BOLT, FLANGEBOLT, FLANGE
-
92154D92154-Y218 BOLT, FLANGE, 8X30BOLT, FLANGE, 8X30
-
92154E92154-Y220 BOLT, FLANGE, 10X35BOLT, FLANGE, 10X35
-
92154F92154-Y221 BOLT, FLANGE, 12X35BOLT, FLANGE, 12X35
-
9217292172-Y087 SCREWSCREW
-
9217392173-Y023 CLAMP, 10.5CLAMP, 10.5
-
92173A92173-Y078 CLAMPCLAMP
-
9218092180-Y044 SHIM, T=1.2SHIM, T=1.2
-
92180A92180-Y045 SHIM, T=1.5SHIM, T=1.5
-
92180B92180-Y046 SHIM, T=1.6SHIM, T=1.6
-
92180C92180-Y047 SHIM, T=1.3SHIM, T=1.3
-
92180D92180-Y048 SHIM, T=1.4SHIM, T=1.4
-
92180E92180-Y050 SHIM, T=1.0SHIM, T=1.0
-
92180F92180-Y051 SHIM, T=1.1SHIM, T=1.1
-
92180G92180-Y052 SHIM, T=1.2SHIM, T=1.2
-
92180H92180-Y053 SHIM, T=1.3SHIM, T=1.3
-
92180I92180-Y054 SHIM, T=1.4SHIM, T=1.4
-
92180J92180-Y056 SHIM, T=1.0SHIM, T=1.0
-
92180K92180-Y057 SHIM, T=1.1SHIM, T=1.1
-
92180L92180-Y058 SHIM, T=1.2SHIM, T=1.2
-
92180M92180-Y059 SHIM, T=1.3SHIM, T=1.3
-
92180N92180-Y060 SHIM, T=1.4SHIM, T=1.4
-
92180O92180-Y061 SHIM, T=1.5SHIM, T=1.5
-
9219292192-Y072 TUBE, GEAR CASETUBE, GEAR CASE
-
9220092200-Y098 WASHERWASHER
-
92200A92200-Y099 WASHERWASHER
