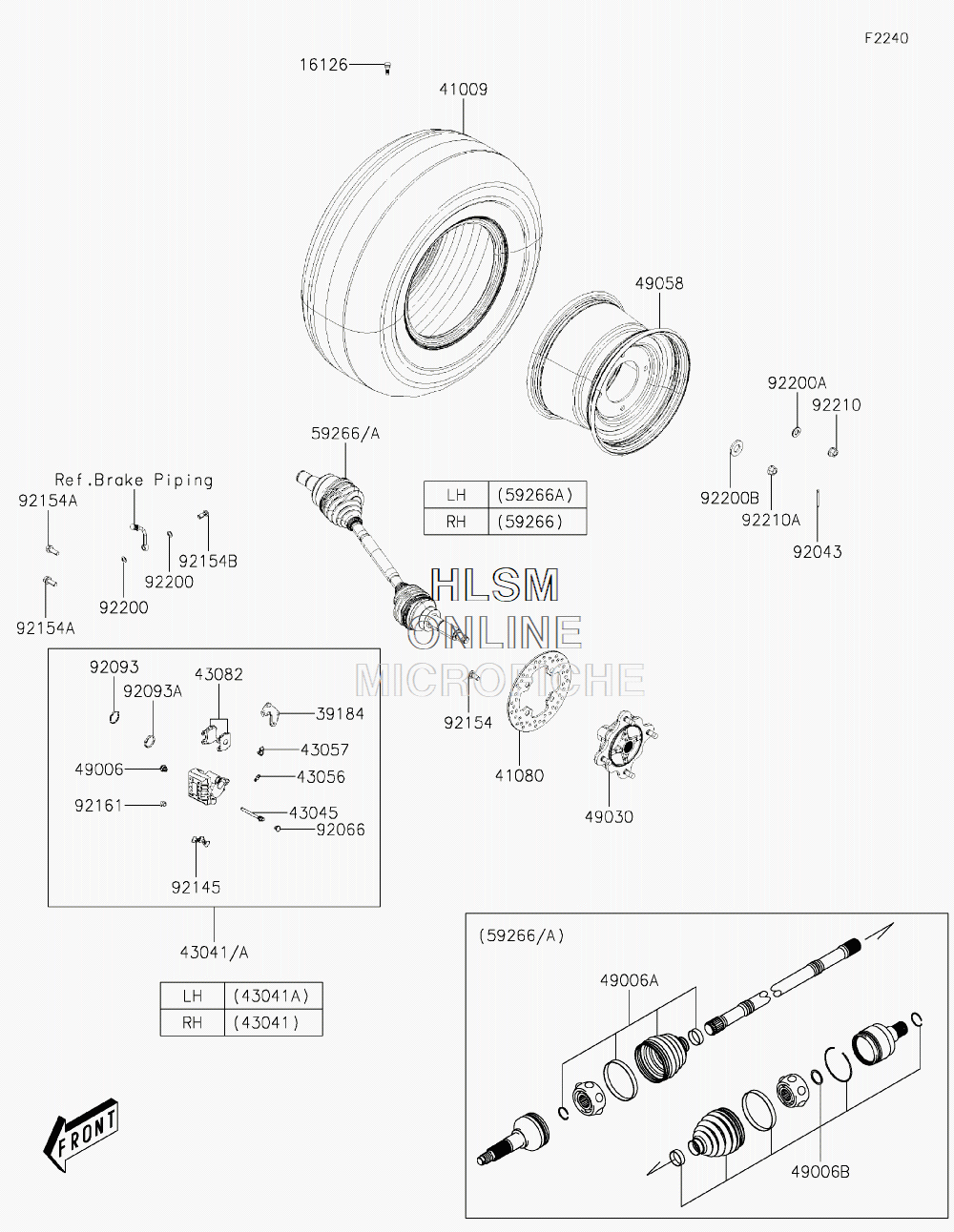

BRAKE - REAR W/ HUBS для Kawasaki MULE PRO-MX (KAF700AKF) - 2019 года выпуска
-
№АртикулНазвание
-
1612616126-Y001 VALVE, RIMVALVE, RIM
-
3918439184-0044 BRACKET-ASSYBRACKET-ASSY
-
4100941009-Y009 TIRE, REARTIRE, REAR
-
4108041080-Y009 DISC, BRAKEDISC, BRAKE
-
4304143041-Y009-934 CALIPER-ASSY, REAR, RIGHT HAND, (SILVER)CALIPER-ASSY, REAR, RIGHT HAND, (SILVER)
-
43041A43041-Y010-934 CALIPER-ASSY, REAR, LEFT HAND, (SILVER)CALIPER-ASSY, REAR, LEFT HAND, (SILVER)
-
4304543045-Y002 SHAFT-CALIPERSHAFT-CALIPER
-
4305643056-0006 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-Y002 CAP-BREATHERCAP-BREATHER
-
4308243082-Y009 PAD-ASSY-BRAKE, REARPAD-ASSY-BRAKE, REAR
-
4900649006-Y005 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-Y011 BOOT, REAR, OUTSIDEBOOT, REAR, OUTSIDE
-
49006B49006-Y012 BOOT, REAR, INSIDEBOOT, REAR, INSIDE
-
4903049030-Y004 HUB, REARHUB, REAR
-
4905849058-Y005-935 WHEEL, REAR, (BLACK)WHEEL, REAR, (BLACK)
-
5926659266-Y002 JOINT-BALL, REAR, RIGHT HANDJOINT-BALL, REAR, RIGHT HAND
-
59266A59266-Y003 JOINT-BALL, REAR, LEFT HANDJOINT-BALL, REAR, LEFT HAND
-
9204392043-Y043 PIN, 4X40PIN, 4X40
-
9206692066-Y012 PLUGPLUG
-
9209392093-Y033 SEAL, PISTONSEAL, PISTON
-
92093A92093-Y034 SEAL, PISTONSEAL, PISTON
-
9214592145-Y035 SPRING, PADSPRING, PAD
-
9215492154-Y178 BOLT, 10X23BOLT, 10X23
-
92154A92154-Y183 BOLTBOLT
-
92154B92154-Y184 BOLT, OILBOLT, OIL
-
9216192161-Y012 DAMPERDAMPER
-
9220092200-Y015 WASHERWASHER
-
92200A92200-Y089 WASHER, 12MMWASHER, 12MM
-
92200B92200-Y090 WASHER, 40X20.5X4.5WASHER, 40X20.5X4.5
-
9221092210-Y088 NUTNUT
-
92210A92210-Y099 NUT, FLANGE, 20MMNUT, FLANGE, 20MM
