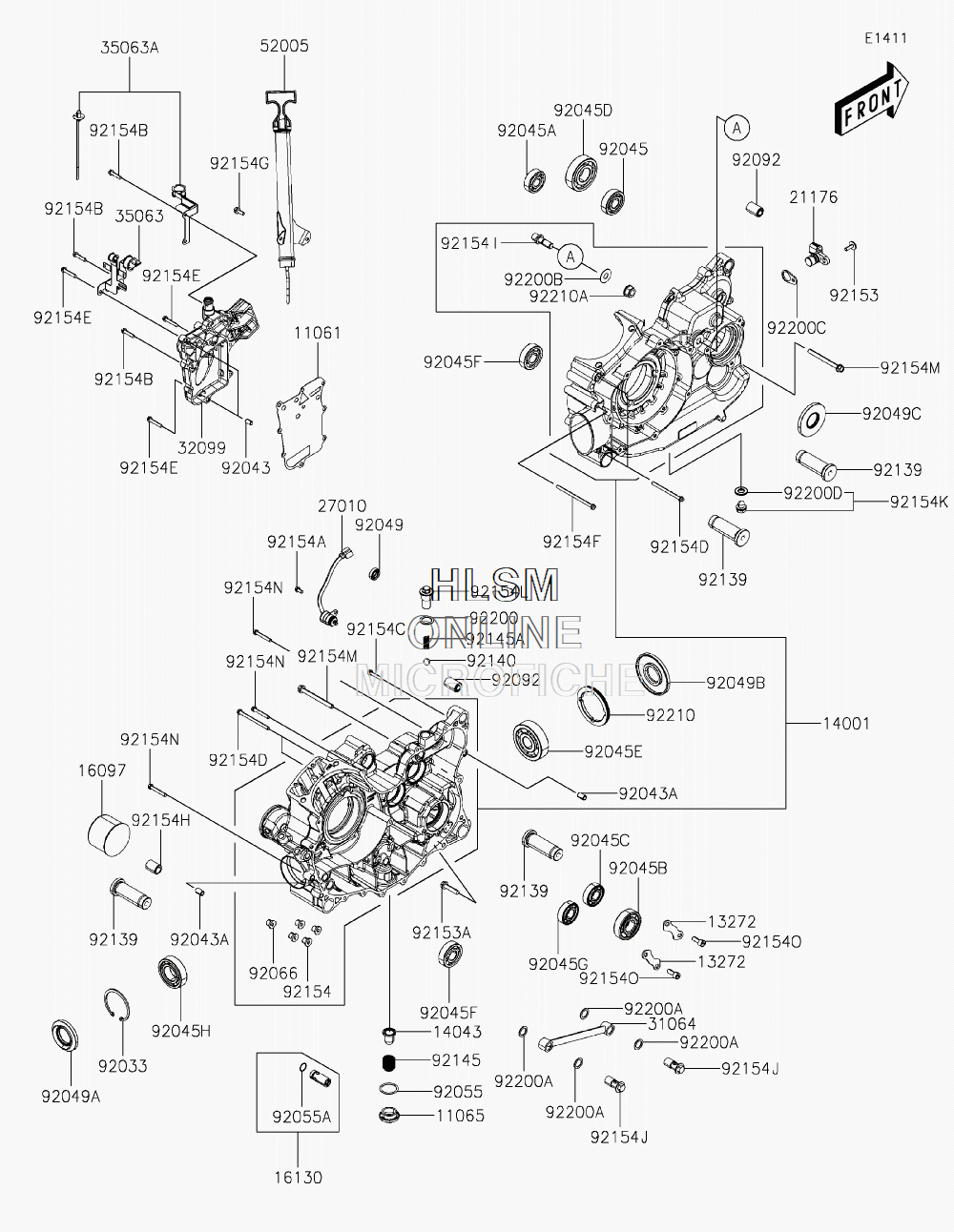

CRANKCASE для Kawasaki MULE PRO-MX (KAF700AKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106111061-Y061 GASKET, CASE, RIGHT HANDGASKET, CASE, RIGHT HAND
-
1106511065-Y006 CAPCAP
-
1327213272-Y035 PLATEPLATE
-
1400114001-Y004 SET-CRANKCASESET-CRANKCASE
-
1404314043-Y001 FILTER, OILFILTER, OIL
-
1609716097-0007 FILTER-ASSY-OILFILTER-ASSY-OIL
-
1613016130-Y001 VALVE-ASSY-RELIEFVALVE-ASSY-RELIEF
-
2117621176-Y010 SENSOR, SPEEDSENSOR, SPEED
-
2701027010-Y019 SWITCH, GEAR CHANGESWITCH, GEAR CHANGE
-
3106431064-Y008 PIPE-COMP, OILPIPE-COMP, OIL
-
3209932099-Y007 CASE, RIGHT HANDCASE, RIGHT HAND
-
3506335063-Y035 STAY, START MOTOR CABLESTAY, START MOTOR CABLE
-
35063A35063-Y037 STAY, HARNESSSTAY, HARNESS
-
5200552005-Y005 GAUGE, OIL LEVEL ASSYGAUGE, OIL LEVEL ASSY
-
9203392033-Y038 RING-SNAPRING-SNAP
-
9204392043-Y012 PIN, 8X14PIN, 8X14
-
92043A92043-Y024 PIN, 10X16PIN, 10X16
-
9204592045-Y016 BEARING-BALL, 6304BEARING-BALL, 6304
-
92045A92045-Y023 BEARING-BALL, 6303BEARING-BALL, 6303
-
92045B92045-Y040 BEARING-BALL, 6305BEARING-BALL, 6305
-
92045C92045-Y041 BEARING-BALL, 6204BEARING-BALL, 6204
-
92045D92045-Y042 BEARING-BALL, 6306BEARING-BALL, 6306
-
92045E92045-Y043 BEARING-BALL, 6405BEARING-BALL, 6405
-
92045F92045-Y045 BEARING-BALL, 6304BEARING-BALL, 6304
-
92045G92045-Y048 BEARING-BALLBEARING-BALL
-
92045H92045-Y049 BEARING-BALLBEARING-BALL
-
9204992049-Y044 SEAL-OIL, 14X24X7SEAL-OIL, 14X24X7
-
92049A92049-Y045 SEAL-OIL, 35X67X7SEAL-OIL, 35X67X7
-
92049B92049-Y046 SEAL-OIL, 35X90X7SEAL-OIL, 35X90X7
-
92049C92049-Y048 SEAL-OIL, 30X72X7SEAL-OIL, 30X72X7
-
9205592055-Y005 RING-O, 30.8MMRING-O, 30.8MM
-
92055A92055-Y038 RING-O, 15.5X1.5RING-O, 15.5X1.5
-
9206692066-Y019 PLUGPLUG
-
9209292092-Y003 BUSHING-RUBBERBUSHING-RUBBER
-
9213992139-Y012 BUSHING, ENGINE HANGERBUSHING, ENGINE HANGER
-
9214092140-Y002 BALL, STEEL 16BALL, STEEL 16
-
9214592145-Y005 SPRINGSPRING
-
92145A92145-Y068 SPRING, STOPPERSPRING, STOPPER
-
9215392153-Y019 BOLT, 6X20BOLT, 6X20
-
92153A92153-Y034 BOLT, FLANGE, 8X35BOLT, FLANGE, 8X35
-
9215492154-Y009 BOLT, SEALING, 12MMBOLT, SEALING, 12MM
-
92154A92154-Y035 BOLT, FLANGE, 6X12BOLT, FLANGE, 6X12
-
92154B92154-Y066 BOLT, FLANGE, 6X25BOLT, FLANGE, 6X25
-
92154C92154-Y107 BOLT, FLANGE, 6X30BOLT, FLANGE, 6X30
-
92154D92154-Y109 BOLT, FLANGE, 6X80BOLT, FLANGE, 6X80
-
92154E92154-Y128 BOLT, FLANGE, 6X32BOLT, FLANGE, 6X32
-
92154F92154-Y144 BOLT, FLANGE, 6X100BOLT, FLANGE, 6X100
-
92154G92154-Y154 BOLT, FLANGE, 6X18BOLT, FLANGE, 6X18
-
92154H92154-Y165 BOLT, OIL FILTERBOLT, OIL FILTER
-
92154I92154-Y167 BOLTBOLT
-
92154J92154-Y174 BOLT, OIL PASSBOLT, OIL PASS
-
92154K92154-Y187 BOLT, DRAINBOLT, DRAIN
-
92154L92154-Y188 BOLTBOLT
-
92154M92154-Y196 BOLT, FLANGE, 8X85BOLT, FLANGE, 8X85
-
92154N92154-Y209 BOLT, FLANGE, 6X40BOLT, FLANGE, 6X40
-
92154O92154-Y210 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9220092200-Y071 WASHERWASHER
-
92200A92200-Y074 WASHER, OIL PIPEWASHER, OIL PIPE
-
92200B92200-Y075 WASHER, THRUST, 12X30X1WASHER, THRUST, 12X30X1
-
92200C92200-Y086 WASHER, SPEED SENSORWASHER, SPEED SENSOR
-
92200D92200-Y099 WASHERWASHER
-
9221092210-Y086 NUT, LOCK, 85MMNUT, LOCK, 85MM
-
92210A92210-Y091 NUT, FLANGE, 12MMNUT, FLANGE, 12MM
