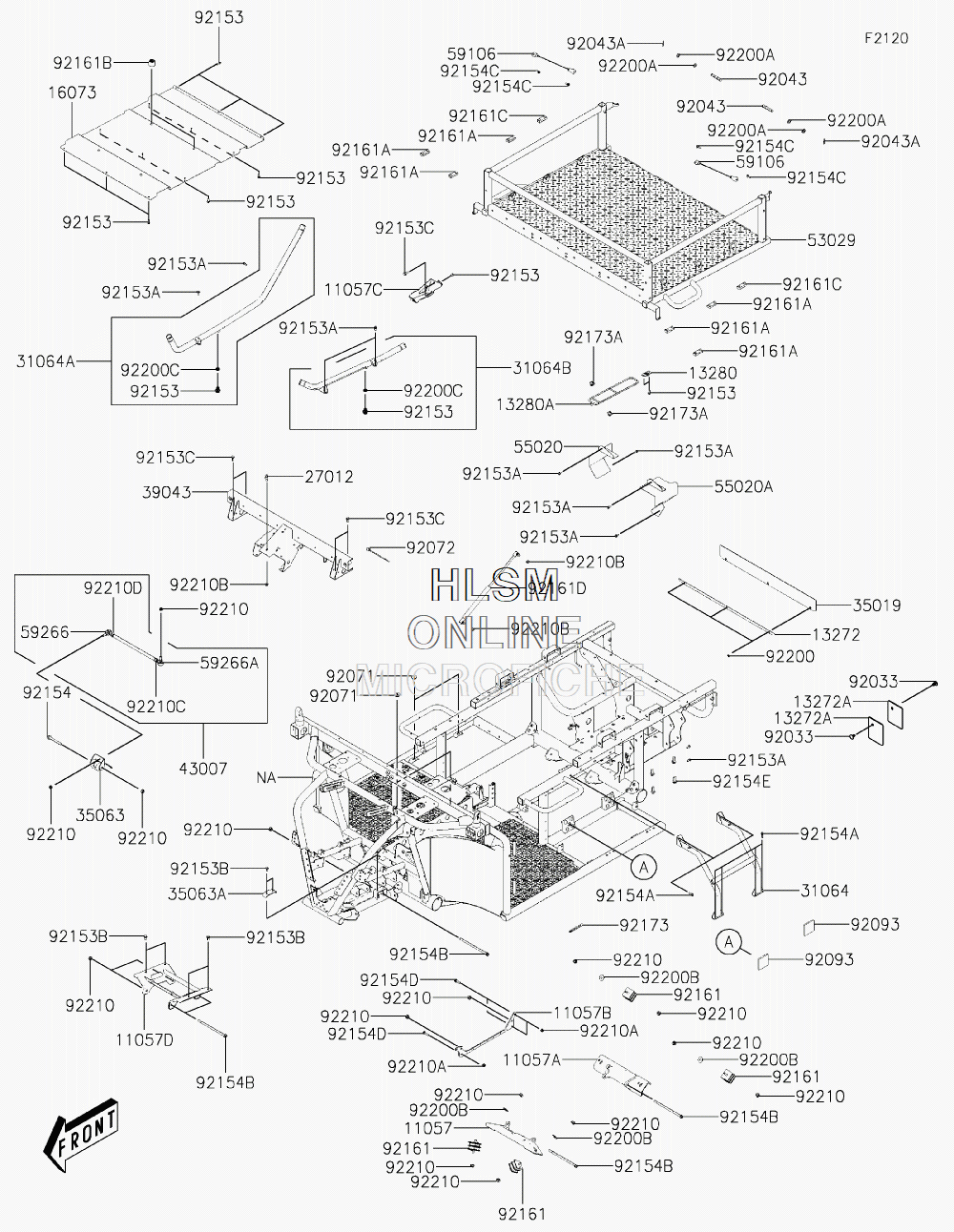

FRAME для Kawasaki MULE PRO-MX (KAF700AKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-Y009 BRACKET, FRONTBRACKET, FRONT
-
11057A11057-Y010 BRACKET, REARBRACKET, REAR
-
11057B11057-Y011 BRACKETBRACKET
-
11057C11057-Y012 BRACKET, SHIFTBRACKET, SHIFT
-
11057D11057-Y014 BRACKET, FRONT DIFFBRACKET, FRONT DIFF
-
1327213272-Y033 PLATEPLATE
-
13272A13272-Y034 PLATEPLATE
-
1328013280-Y023 HOLDERHOLDER
-
13280A13280-Y024 HOLDERHOLDER
-
1607316073-Y006 INSULATORINSULATOR
-
2701227012-Y004 HOOK, SEATHOOK, SEAT
-
3106431064-Y010 PIPE-COMP, TANKPIPE-COMP, TANK
-
31064A31064-Y011 PIPE-COMP, RADIATOR.INLETPIPE-COMP, RADIATOR.INLET
-
31064B31064-Y012 PIPE-COMP, RADIATOR.OUTLETPIPE-COMP, RADIATOR.OUTLET
-
3501935019-Y005 FLAPFLAP
-
3506335063-Y039 STAY, TORQUE RODSTAY, TORQUE ROD
-
35063A35063-Y040 STAY, FRONT DIFFSTAY, FRONT DIFF
-
3904339043-Y001 CROSSMEMBER-COMPCROSSMEMBER-COMP
-
4300743007-Y001 ROD-TORQUEROD-TORQUE
-
5302953029-Y005 CARRIERCARRIER
-
5502055020-Y010 GUARD, HEAT, RIGHT HANDGUARD, HEAT, RIGHT HAND
-
55020A55020-Y011 GUARD, HEAT, LEFT HANDGUARD, HEAT, LEFT HAND
-
5910659106-Y002 ROPEROPE
-
5926659266-Y006 JOINT-BALL, RIGHT HANDJOINT-BALL, RIGHT HAND
-
59266A59266-Y007 JOINT-BALL, LEFT HANDJOINT-BALL, LEFT HAND
-
9203392033-Y031 RING-SNAPRING-SNAP
-
9204392043-Y042 PINPIN
-
92043A92043-Y044 PIN, LOCK, 14MMPIN, LOCK, 14MM
-
9207192071-Y005 GROMMETGROMMET
-
9207292072-Y020 BANDBAND
-
9209392093-Y032 SEALSEAL
-
9215392153-Y023 BOLT, FLANGE, 6X12BOLT, FLANGE, 6X12
-
92153A92153-Y025 BOLT, FLANGE, 6X16BOLT, FLANGE, 6X16
-
92153B92153-Y032 BOLT, FLANGE, 8X16BOLT, FLANGE, 8X16
-
92153C92153-Y033 BOLT, FLANGE, 8X20BOLT, FLANGE, 8X20
-
9215492154-Y047 BOLT, FLANGE, 10X85BOLT, FLANGE, 10X85
-
92154A92154-Y130 BOLT, FLANGE, 6X25BOLT, FLANGE, 6X25
-
92154B92154-Y169 BOLT, FLANGE, 10X200BOLT, FLANGE, 10X200
-
92154C92154-Y179 BOLT, 6X20BOLT, 6X20
-
92154D92154-Y198 BOLT, FLANGE, 8X30BOLT, FLANGE, 8X30
-
92154E92154-Y206 BOLT, FLANGE, 12X40BOLT, FLANGE, 12X40
-
9216192161-2083 DAMPERDAMPER
-
92161A92161-Y047 DAMPER, CARGO BEDDAMPER, CARGO BED
-
92161B92161-Y049 DAMPER, HEAT SHIELDDAMPER, HEAT SHIELD
-
92161C92161-Y051 DAMPER, CARGO BEDDAMPER, CARGO BED
-
92161D92161-Y052 DAMPER, GASDAMPER, GAS
-
9217392173-Y002 CLAMPCLAMP
-
92173A92173-Y073 CLAMPCLAMP
-
9220092200-Y070 WASHERWASHER
-
92200A92200-Y091 WASHER, 12MMWASHER, 12MM
-
92200B92200-Y092 WASHER, 10.5X30X2WASHER, 10.5X30X2
-
92200C92200-Y102 WASHERWASHER
-
9221092210-Y009 NUT, 10MMNUT, 10MM
-
92210A92210-Y032 NUT, FLANGE, 8MMNUT, FLANGE, 8MM
-
92210B92210-Y076 NUT, 8MMNUT, 8MM
-
92210C92210-Y093 NUT, HEX, 12MMNUT, HEX, 12MM
-
92210D92210-Y094 NUT, HEX, LEFT HANDED, 12MMNUT, HEX, LEFT HANDED, 12MM
