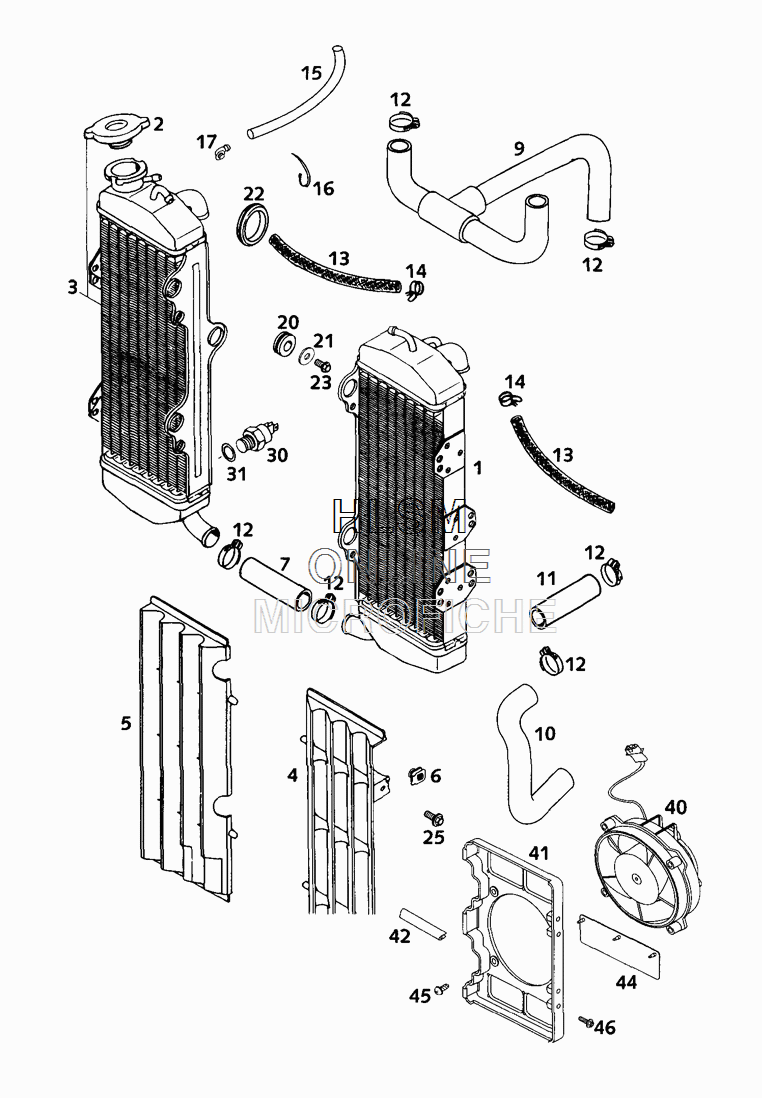

COOLING SYSTEM для Ktm LC4 640 Duke II - 2000 года выпуска
-
№АртикулНазвание
-
158335008000 RADIATOR L/S (45246)RADIATOR L/S (45246)
-
258035016000 RADIATOR CAP SMALL 1,4 BARRADIATOR CAP SMALL 1,4 BAR
-
357935008000 RADIATOR R/S (45335)RADIATOR R/S (45335)
-
458035034000 RADIATOR PROTECTOR L/S BLACKRADIATOR PROTECTOR L/S BLACK
-
458035034100 RADIATOR PROTECT. L/S WHITERADIATOR PROTECT. L/S WHITE
-
558035134000 RADIATOR PROTECTOR R/S BLACKRADIATOR PROTECTOR R/S BLACK
-
558035134100 RADIATOR PROTECT. R/S WHITERADIATOR PROTECT. R/S WHITE
-
650235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
756535025001 RADIATOR HOSE 18X25 PER METERRADIATOR HOSE 18X25 PER METER
-
958335026000 PREFORMED HOSEPREFORMED HOSE
-
1058435025700 PREFORMED HOSE 18X25 PUMP-CYL.PREFORMED HOSE 18X25 PUMP-CYL.
-
1158335024001 RADIATOR HOSE 20 X 26RADIATOR HOSE 20 X 26
-
1210001020000 HOSE CLAMP GEMI 16/27HOSE CLAMP GEMI 16/27
-
1354435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
1450231005000 HOSE CLAMP YDNAC 10119HOSE CLAMP YDNAC 10119
-
1555007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
1644011076200 CABLE TIE 200MMCABLE TIE 200MM
-
1750303089000 ANGEL PIECE '97ANGEL PIECE '97
-
2041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
210021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2254635022000 SLEEVE FOR STEERING HEADSLEEVE FOR STEERING HEAD
-
230015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
250014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
3058035045000 THERMOSWITCH 80-85 DG '94THERMOSWITCH 80-85 DG '94
-
310603142015 ALU SEALRING DIN7603-14X20X1,5ALU SEALRING DIN7603-14X20X1,5
-
4058435041000 FAN CPL. 12VFAN CPL. 12V
-
4158435044000 FAN CAPFAN CAP
-
4258312085100 EDGE PROTECTOR FOR COVEREDGE PROTECTOR FOR COVER
-
4458435044050 FAN FLAP RUBBERFAN FLAP RUBBER
-
450081500181 EJOT PT SCREW KA 50X18 WN1411EJOT PT SCREW KA 50X18 WN1411
-
460017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
